Brand: SolarEdge
Product code: AEA-00065

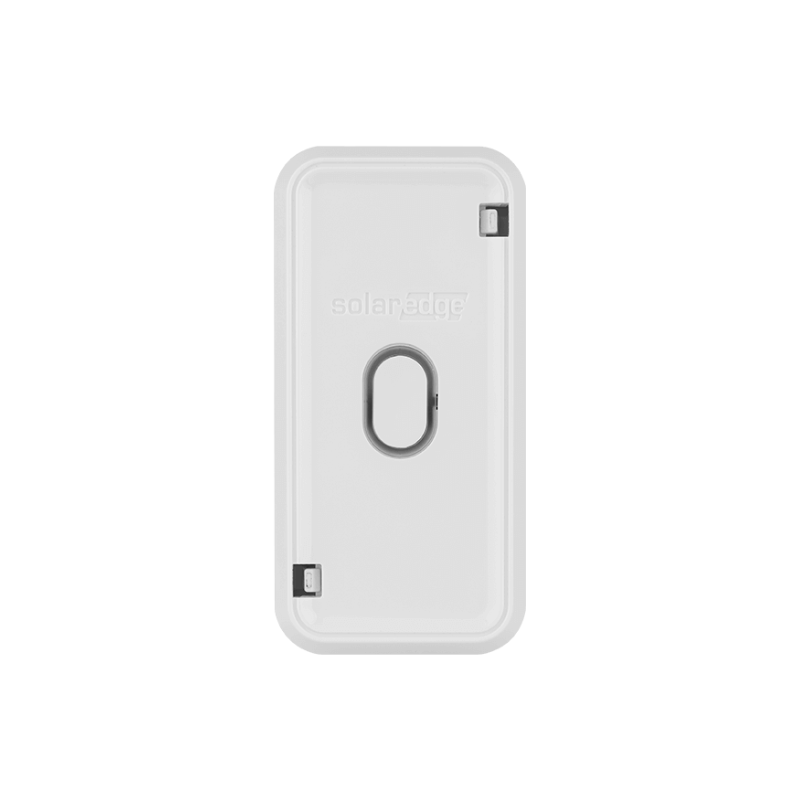

SolarEdge Home Load Controller
Wireless load controller with two dry contact switches for managing permanently connected appliances in the SolarEdge Home ecosystem.
£78.13 inc. VAT
£65.11 exc. VAT
Out of stock
The SolarEdge Home Load Controller (SEM-DCS-R08-00) optimises self-consumption by switching permanently connected appliances according to available solar power, and can also shed non-essential loads during backup operation. It includes two independently controlled dry contact switches - a normally open contact rated up to 8A and a normally closed contact rated up to 4A - suitable for switching larger single or three-phase loads via an external contactor. It connects wirelessly to the inverter over the SolarEdge Home Network at 863-870MHz, is DIN-rail mountable at 100 x 50 x 35mm, carries an IP30 rating and is covered by a five-year warranty.
Specifications
Power
| AC input voltage | 90 – 250 Vac |
|---|---|
| AC frequency | 50/60 Hz |
| Normally open (NO) contact rating | 250Vac up to 8Aac / 30Vdc up to 8Adc |
| Normally closed (NC) contact rating | 250Vac up to 4Aac / 30Vdc up to 4Adc |
| Relay switching cycles | 20,000 minimum |
| Operating hours | 50,000 hr |
| Installation altitude | 2000 m |
| Power consumption | 1.5 W max |
Environmental
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |
| Ingress protection | IP30 |
Dimensions
| Dimensions (L x W x H, excluding din-rail adapter) | 100 x 50 x 35 mm |
|---|
Communication
| Operating frequency range (EU) | 863 – 870 MHz |
|---|---|
| EIRP with antenna (EU) | 14 dBm |
Temperature sensor
| Ambient temperature sensing accuracy | 0.5 °C |
|---|
Documents and datasheets
Datasheets
SolarEdge Home Load Controller (SEM-DCS-R08-00) — Datasheet
PDF · 166 kB
