Brand: SolarEdge
Product code: AEA-00066

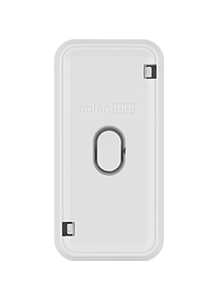

SolarEdge Home Smart Switch
Wireless 16A dry-contact switch for controlling a permanently connected appliance in the SolarEdge Home ecosystem.
£68.98 inc. VAT
£57.48 exc. VAT
Out of stock
The SolarEdge Home Smart Switch (SEM-SWT-R16-00) controls a dedicated, permanently connected appliance to maximise self-consumption of solar power and can extend backup run time by shedding the load it controls. It switches a single-pole, 16A relay rated for a wide 90-250Vac supply and connects wirelessly to the inverter over the SolarEdge Home Network at 868-868.6MHz. The unit is DIN-rail mountable at 100 x 50 x 35mm, includes a built-in ambient temperature sensor accurate to ±0.5°C, carries an IP30 rating for indoor use, and is covered by a five-year warranty.
Specifications
Power
| AC input voltage | 90 – 250 Vac |
|---|---|
| AC frequency | 50/60 Hz |
| Switch current | 16 A |
| Poles | 1 |
| Relay switching cycles | 20,000 minimum |
| Operating hours | 50,000 hr |
| Installation altitude | 2000 m |
| Measurement accuracy | 1% |
| Power consumption | 1.5 W max |
Environmental
| Operating temperature | -10 to +50 °C |
|---|---|
| Storage temperature | -20 to +60 °C |
| Ingress protection | IP30 |
Dimensions
| Dimensions (L x W x H, excluding din-rail adapter) | 100 x 50 x 35 mm |
|---|
Communication
| Operating frequency range (EU) | 868 – 868.6 MHz |
|---|---|
| EIRP with antenna | 17 dBm |
Temperature sensor
| Ambient temperature sensing accuracy | 0.5 °C |
|---|
Documents and datasheets
Datasheets
SolarEdge Home Smart Switch (SEM-SWT-R16-00) — Datasheet
PDF · 150 kB
