Brand: SolarEdge
Product code: AEE-00634

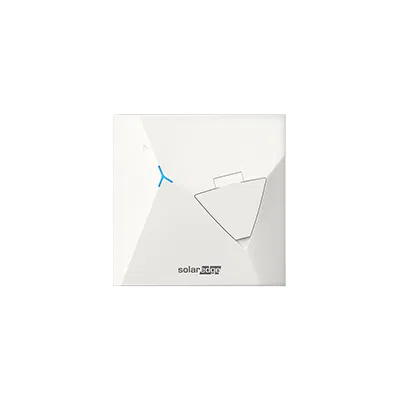

SolarEdge ONE EV Charger, 7.4kW / 1ph, Socket, PEN fault detection
SolarEdge ONE EV Charger, 7.4kW single-phase socket unit with PEN fault detection, for UK installations.
£693.81 inc. VAT
£578.17 exc. VAT
In stock
The SolarEdge ONE EV Charger (SE-EVN74SU0-01, model EVN74BU) is a 7.4kW single-phase charging point with a Type 2 socket, built-in RFID reader and PEN fault detection to BS 7671:2018+A1:2020. It forms part of the SolarEdge ONE ecosystem, using WiFi, Ethernet or Bluetooth connectivity and OCPP 1.6J support to schedule charging around solar generation and off-peak tariffs. The unit is IP54- and IK10-rated for indoor or outdoor mounting and is UKCA-marked for use in the United Kingdom.
Specifications
Electrical
| Rated AC power output | 7.4 kW |
|---|---|
| Rated current per phase | 6 - 32 A |
| Nominal AC output voltage | 230 VAC |
| Line frequency | 50 Hz |
Protection
| Protection class | IP54 |
|---|---|
| Mechanical protection class | IK10 |
| Residual DC detecting device | 6 mA DC |
Installation
| AC terminal cross-section support | 0.2 - 16 mm2 |
|---|---|
| AC cable stripping length | 12 mm |
Environmental
| Operating temperature | -30 to +50 C |
|---|
Mechanical
| Dimensions (H x W x D) | 235 x 230 x 107 mm |
|---|---|
| Weight | 2.1 kg |
Documents and datasheets
Datasheets
SolarEdge ONE EV Charger for UK, 7.4kW / 1ph, Socket, PEN Fault Detection (SE-EVN74SU0-01, Model EVN74BU) — Datasheet
PDF · 199 kB
