Brand: SolaX
Product code: AEI-00784

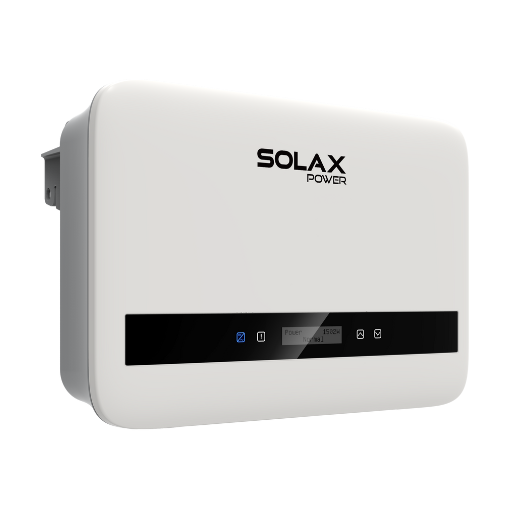

Solax 3.6kW G4 Boost PV Inverter Dual Tracker
- 3.6 kW
- 7.2
- 1
- 40
- 560
- 600
SolaX X1-Boost G4 3.6kW single-phase on-grid solar inverter with 2 MPP trackers and WiFi/app monitoring.
£431.41 inc. VAT
£359.51 exc. VAT
In stock
The SolaX X1-Boost G4 is a single-phase, grid-tied (non-battery) solar inverter with two independent MPP trackers for higher yield from panels facing different directions. The 3.6kW model accepts up to 7.2kWp of PV over a 35-600V operating range, with 16A maximum input current per tracker, and delivers 3680W rated AC output at 16.0A. It supports WiFi and app configuration with 10-second data refresh to SolaX Cloud, built-in I-V curve diagnosis, optional Type II AC/DC surge protection, and is ready for rapid shutdown. Up to 5 units can be paralleled without an external EMS. The inverter is IP66 rated, measures 404 x 274 x 146mm and weighs 11kg, suitable for indoor or outdoor installation.
Specifications
PV Input
| Max. recommended PV array power | 7.2 kWp |
|---|---|
| Operating voltage range | 35-600 V |
AC Output
| Rated output power | 3680 W |
|---|---|
| Rated output current | 16.0 A |
Efficiency
| Max. efficiency | 98.0% |
|---|---|
| European efficiency | 97.0% |
Environment
| Operating ambient temperature range | -25 to 60 °C |
|---|---|
| Max. operating altitude | 4000 m |
General
| Dimensions (W x H x D) | 404 x 274 x 146 mm |
|---|---|
| Rated output | 3.6 kW |
| Inverter Dc Max | 7.2 |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 40 |
| Inverter Mppt Vmax | 560 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 16 |
Protection
| Ingress protection | IP66 |
|---|
Documents and datasheets
Datasheets
SolaX X1-Boost G4 3.6kW — Datasheet
PDF · 574 kB
