Brand: SolaX
Product code: AEB-00406

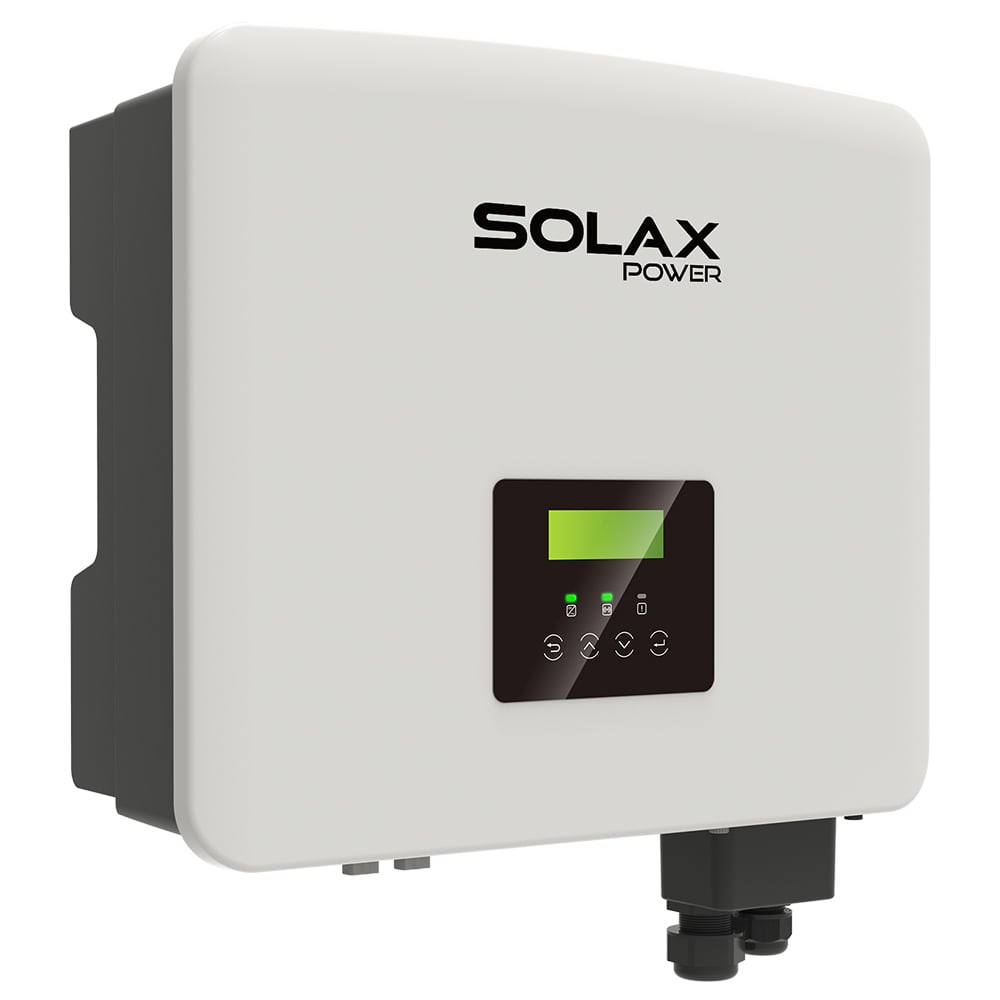

SolaX 3kW G4-V2 Hybrid inverter with WiFi
- 3 kW
- Hybrid
- 70
- 550
- 600
- 16
SolaX X1-Hybrid G4 3.0kW single-phase hybrid inverter with built-in WiFi, 2 MPPTs and up to 150% EPS backup output.
£739.20 inc. VAT
£616.00 exc. VAT
Out of stock
The SolaX X1-Hybrid G4 is a single-phase hybrid inverter that combines solar generation and battery storage in one unit, with this V2 hardware revision adding a built-in WiFi dongle so no separate monitoring accessory is needed. The 3.0kW model accepts up to 6.0kWp of PV across 2 MPP trackers with an operating voltage range of 70-550V, and connects to a lithium or lead-acid battery over an 80-480V range at up to 30A charge/discharge current. On a grid outage it switches to EPS backup in under 10ms, and the inverter reaches up to 97.6% maximum efficiency. It is IP65 rated, measures 482 x 417 x 181mm, and supports on- and off-grid parallel operation with other X1-Hybrid units.
Specifications
PV Input
| Max. recommended PV array power | 6.0 kWp |
|---|---|
| Operation voltage range | 70-550 V |
| Start-up voltage | 90 V |
AC Output
| Rated output power | 3000 W |
|---|
Battery
| Battery voltage range | 80-480 V |
|---|---|
| Max. charge/discharge current | 30 A |
EPS
| Switchover time | <10 ms |
|---|
Efficiency
| Max. efficiency | 97.6% |
|---|---|
| European efficiency | 97.0% |
Environment
| Operation temperature range | -35 to 60 (>45 derating) °C |
|---|
General
| Dimensions (W x H x D) | 482 x 417 x 181 mm |
|---|---|
| Rated output | 3 kW |
| Hybrid | Hybrid |
| Inverter Mppt Vmin | 70 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 16 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 480 |
Protection
| Ingress protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X1-Hybrid G4 3.0kW (built-in WiFi) — Datasheet
PDF · 867 kB
