Brand: SolaX
Product code: AEB-00383
SOLAX BMS Parallel Box G2 - T58 Batteries Only
- 16.1
- 16.1

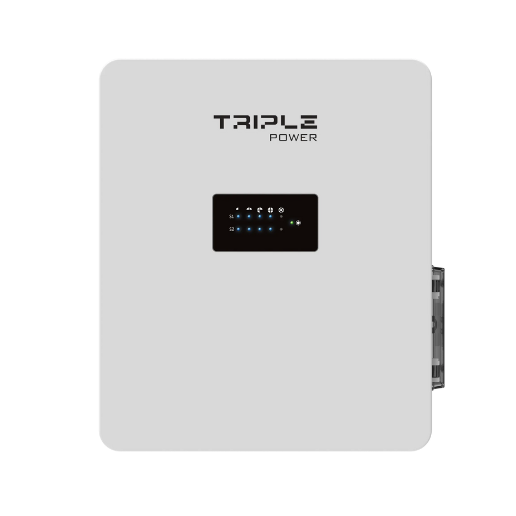

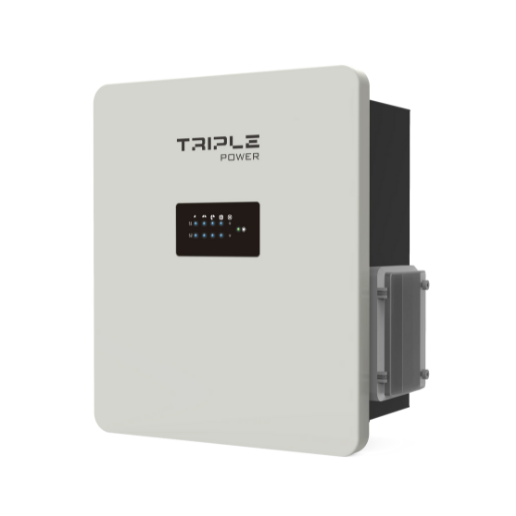

SolaX BMS-Parallel Box-II G2, connects two columns of Triple Power T58 batteries to one inverter for extra capacity.
£815.44 inc. VAT
£679.53 exc. VAT
Out of stock
The SolaX BMS-Parallel Box-II G2 lets two battery columns of the same length be connected to a single inverter, doubling the usable capacity of a Triple Power stack. For T58 battery systems it carries a standard power of 11.5kW and a maximum of 16.1kW across a 70-550V DC input/output range, with a recommended charge/discharge current of 25A and a maximum of 35A. It communicates with the inverter over CAN and RS485, is rated IP65 for indoor or outdoor installation, and has an expected service life of 5 years. One battery column must include a BMS (a T-BAT H 5.8 master for T58, or an MC0600 + HV10230 for T30); this listing is stocked for T58 Triple Power batteries.
Specifications
Electrical
| Input / output voltage range | 70-550 V |
|---|---|
| Standard power | 11.5 kW |
| Recommend charge / discharge current | 25 A |
| Max. charge / discharge current | 35 A |
Physical
| Dimensions (W x H x D) | 368 x 334 x 153.5 mm |
|---|
Protection
| Ingress protection | IP65 |
|---|
General
| Expected life | 5 years |
|---|---|
| Battery Max Charge | 16.1 |
| Battery Max Discharge | 16.1 |
Documents and datasheets
Datasheets
SolaX BMS-Parallel Box-II G2 — Datasheet
PDF · 546 kB
