Brand: SolaX
Product code: AEE-00641
SolaX Smart 11kW EV Charger G2 - Tethered
SolaX Smart EV Charger G2 (X3-HAC-11), a tethered 11kW three-phase home or light-commercial EV charger with RFID and app control.
£427.36 inc. VAT
£356.13 exc. VAT
In stock

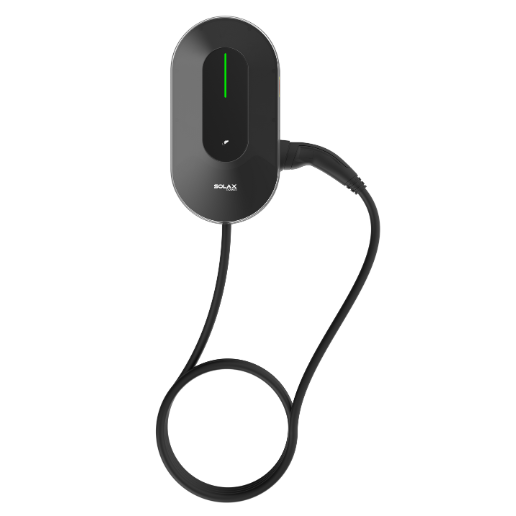

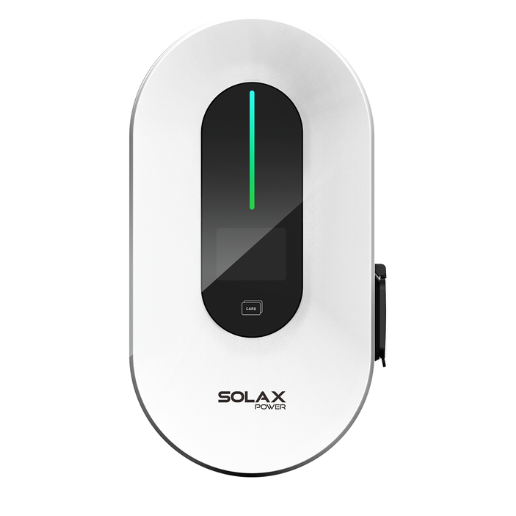

The SolaX Smart EV Charger G2 is a wall-mounted EV charger supplied here in the tethered (plug) configuration with its own Type 2 charging cable. The X3-HAC-11 model delivers 1.4 to 11kW over a 6-16A current range at 400V, switching automatically between single- and three-phase charging, and can balance charging against solar generation and home loads to maximise use of on-site solar. It supports Plug & Charge, RFID and app-based authentication, OCPP 1.6j / Modbus connectivity over WiFi, Ethernet or optional 4G, and is protected by integrated 30mA AC / 6mA DC earth leakage monitoring. Rated IP65 in plug configuration, it is built for indoor or outdoor installation with a 6.5m cable.
Specifications
Electrical
| AC nominal voltage | 400 V |
|---|---|
| Current (single or three phase) | 6-16 A |
| Power | 1.4-11 kW |
General
| Cable length | 6.5 m |
|---|---|
| Dimension (W x H x D) | 206 x 390 x 139 mm |
Environment
| Operation temperature (without screen) | -30 to 50 °C |
|---|---|
| Max. operation altitude | 2000 m |
Protection
| Degree of protection, plug type | IP65 |
|---|---|
| Integral earth leakage protection (AC) | 30 mA |
| Integral earth leakage protection (DC) | 6 mA |
Documents and datasheets
Datasheets
SolaX Smart EV Charger G2 X3-HAC-11 — Datasheet
PDF · 636 kB
