Brand: SolaX
Product code: AEE-00642

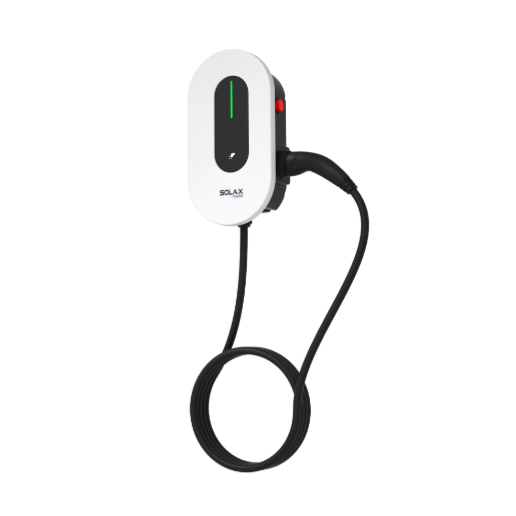

SolaX Smart 22kW EV Charger G2 - Tethered
- 22
- 3
SolaX Smart EV Charger G2, X3-HAC-22, 22kW three-phase tethered charger with Type 2 plug and built-in PEN fault protection for UK installations.
£488.19 inc. VAT
£406.83 exc. VAT
In stock
The SolaX Smart EV Charger G2 X3-HAC-22 is a three-phase wallbox charger rated up to 22kW on a 400V AC supply, with a current range of 6 to 32 amps switchable between single and three-phase operation. It is fitted with a tethered Type 2 charging cable of 6.5m and weighs 6.5kg. Housed to IP65 (plug type) with IK10 impact resistance, it suits both indoor and outdoor mounting. Built-in current leakage protection covers 30mA AC and 6mA DC, and the UK version includes PEN fault detection technology to meet BS 7671:2018 requirements for TN-C-S supplies. Communication is via WiFi, Ethernet, optional 4G and dual RS485 ports, supporting smart load balancing and remote app control for integration with solar and battery systems. Compliant with IEC 61851-1 and IEC 62196-2.
Specifications
Electrical
| AC nominal input voltage | 400 V |
|---|---|
| Nominal output current | 6-32 A (single or three phase) |
| Output power range | 1.4-22 kW |
| Grid earth type | TN, TT, IT |
Protection
| Integral earth leakage protection | 30mA AC & 6mA DC |
|---|---|
| Built-in PEN fault technology | According to BS 7671:2018 requirements (UK region chargers) |
| Degree of protection | IP65 (plug type) / IP54 (socket type) |
| Impact rating | IK10 (housing) / IK08 (screen) |
Physical
| Dimensions (W x H x D) | 390 x 206 x 139 mm |
|---|---|
| Weight, plug type | 6.5 kg |
| Cable length | 6.5 m (Type P) |
Environmental
| Operating temperature | -30 to 50 °C |
|---|
Connector
| Charging outlet | Type 2 plug / Type 2 socket IEC 62196 |
|---|
Standard
| Applicable standards | IEC 61851-1:2017, IEC 62196-2:2016 |
|---|
General
| EV Charging Rated | 22 |
|---|---|
| EV Charging Phases | 3 |
