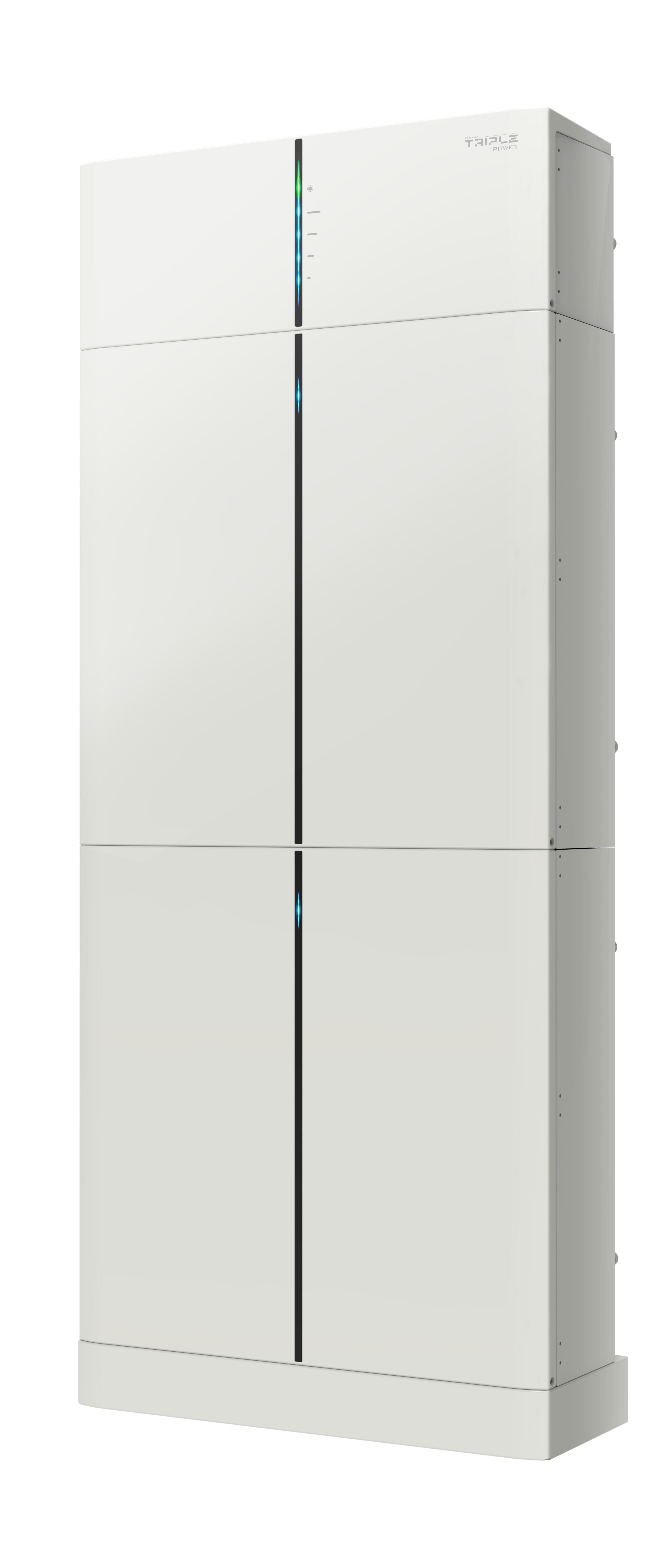

SolaX Triple Power 12.0kWh battery stack with BMS and base kit

The T-BAT H 12.0 V2 is the largest single-column configuration of SolaX's Triple Power T30 system: one MC0600 BMS stacked with four HV10230 V2 LiFePO4 battery modules, supplied with the base, cover and interconnect cabling needed to build the full-height tower. Total energy is 12.3kWh, with 11.0kWh usable at 90% depth of discharge, across a 360-464V operating range. Rated power is 10.2kW with a maximum of 12.3kW. The stack can be floor- or wall-mounted, communicates with the inverter over RS485/CAN2.0, is IP65 rated, and is backed by a 10-year warranty with a rated cycle life beyond 6,000 cycles at 90% DOD. A BMS-Parallel Box-II G2 can pair two such columns on one inverter for further capacity.
