Brand: SolaX
Product code: AEB-00403
SolaX Triple Power 9.0kWh battery stack with BMS and base kit
- 8.3
- 307.2
- 9.2
- 9.2
- LFP

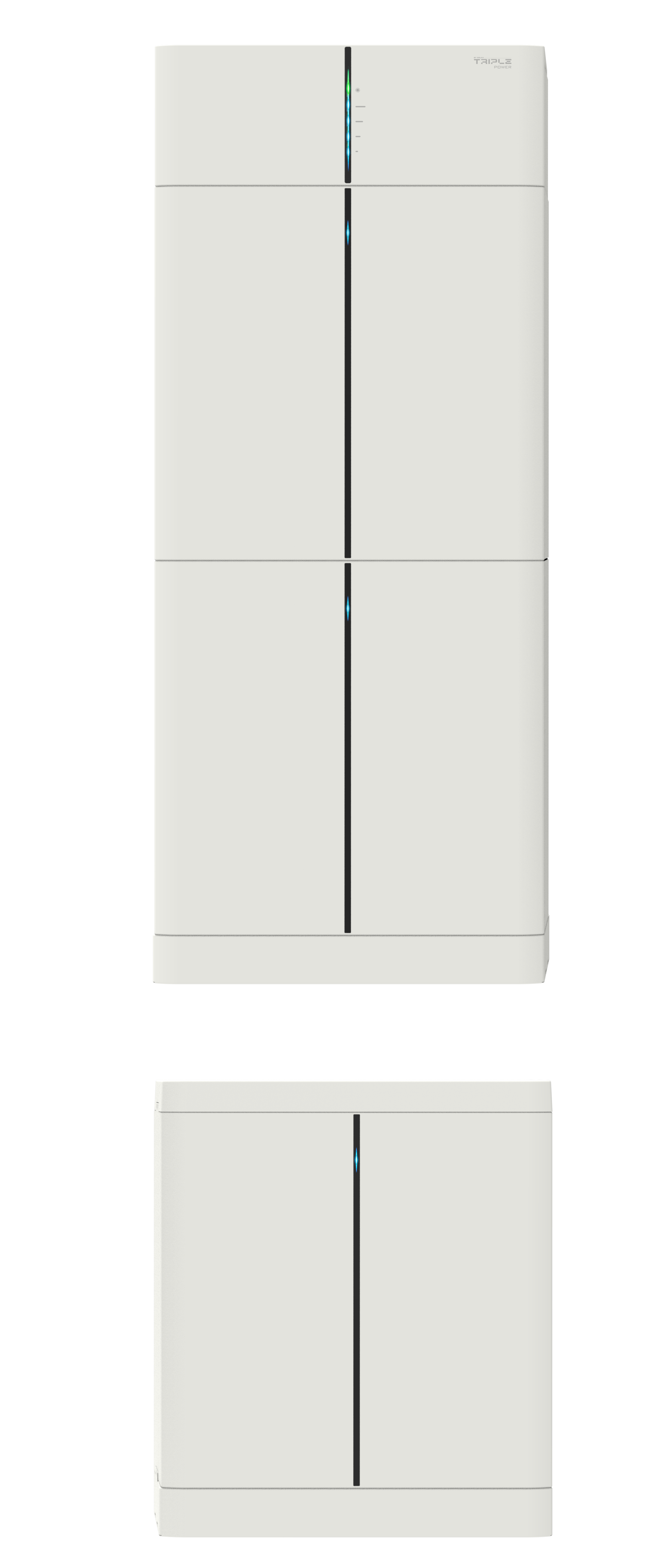

SolaX Triple Power T-BAT H 9.0: an MC0600 BMS with three HV10230 LFP modules, 9.2kWh total and 8.3kWh usable at 307.2V.
£3,694.22 inc. VAT
£3,078.52 exc. VAT
Out of stock
The T-BAT H 9.0 is the three-module configuration of SolaX's Triple Power T30 high-voltage battery system: an MC0600 BMS control unit with three HV10230 battery modules built on LFP cells. SolaX rates the system at 9.2kWh total energy, of which 8.3kWh is usable (tested at 90% depth of discharge), at a rated voltage of 307.2V and an operating range of 270 to 348V. Rated power is 7.6kW and maximum power 9.2kW. The battery communicates with the inverter over RS485 or CAN2.0, is IP65 rated and supports floor mounting. With a BMS-Parallel Box-II G2, up to two towers can be combined. SolaX quotes a cycle life of more than 6,000 cycles at 90% depth of discharge and a 10-year warranty.
Specifications
Battery
| Configuration | MC0600 BMS + 3 x HV10230 battery modules |
|---|---|
| Total energy | 9.2 kWh |
| Rated power | 7.6 kW |
| Max. power | 9.2 kW |
| Operation voltage range | 270-348 V |
| Cycle life (90% DOD) | > 6000 cycles |
Physical
| Net weight, BMS (MC0600) | 7.5 kg |
|---|---|
| Net weight, battery modules (3 x HV10230) | 103.5 kg |
Protection
| Ingress protection | IP65 |
|---|
General
| Battery Usable | 8.3 |
|---|---|
| Battery Nominal | 307.2 |
| Battery Max Charge | 9.2 |
| Battery Max Discharge | 9.2 |
| Battery Chemistry | LFP |
Documents and datasheets
Datasheets
SolaX Triple Power T-BAT H 9.0 battery stack (MC0600 BMS + 3 x HV10230) — Datasheet
PDF · 831 kB
