Brand: SolaX
Product code: AEB-00381

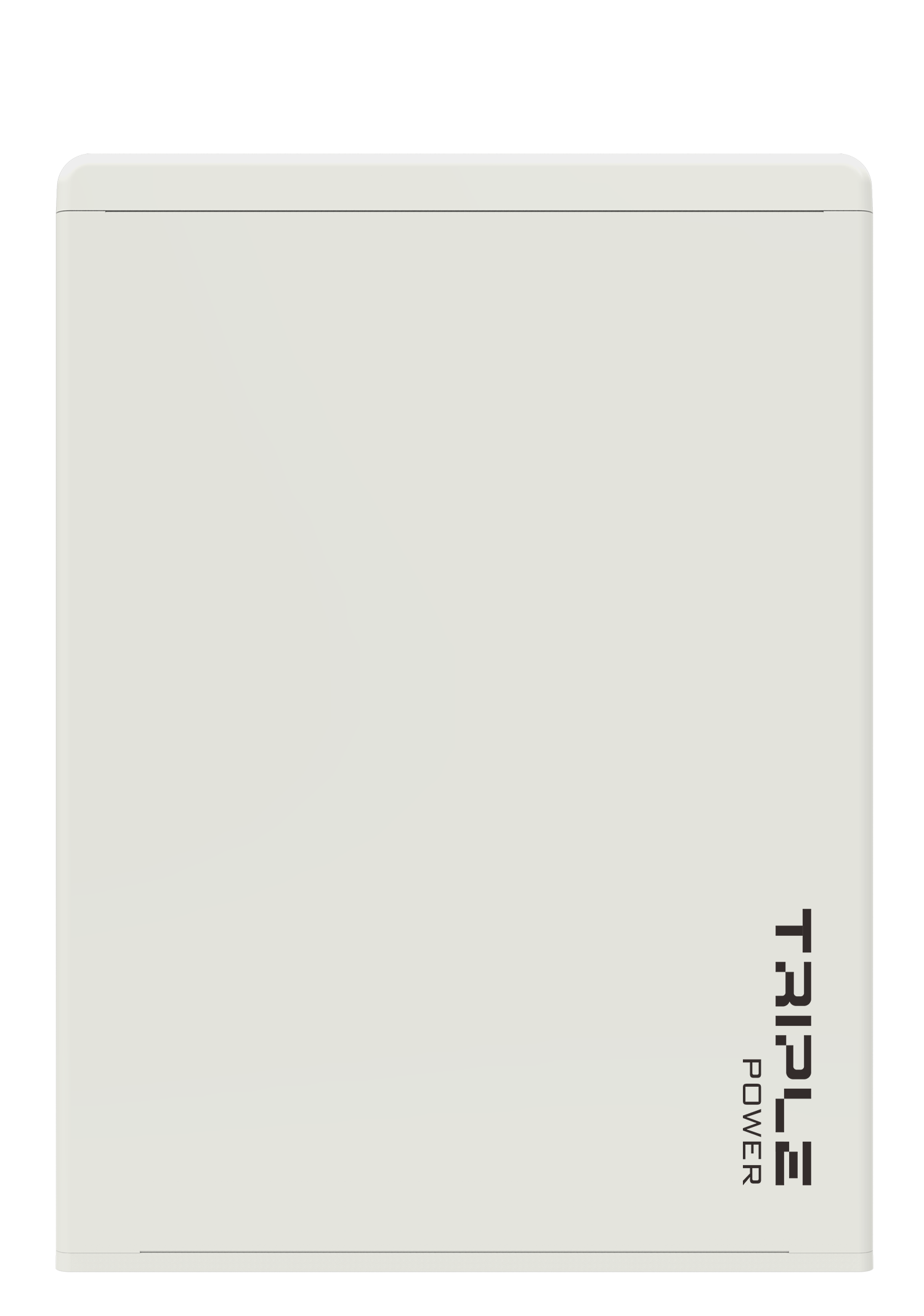

SolaX Triple Power HV 5.8kWh Heated LFP Extension Battery SLAVE V3
- DC
- 5
- LFP
SolaX Triple Power HV11550 V3 extension (slave) battery, 5.8kWh LFP module that adds capacity to a T-BAT H 5.8 master.
£1,621.31 inc. VAT
£1,351.09 exc. VAT
In stock
The HV11550 V3 is the extension (slave) battery pack for SolaX's Triple Power T-BAT H 5.8 HV system, adding 5.8kWh of LiFePO4 capacity to an existing T-BAT H 5.8 V3 master unit without its own BMS. Up to five extension packs can be connected to one master, taking a single-cluster stack to a maximum of 34.6kWh (more with inverters that have two battery ports). The heated variant uses SolaX's flexible two-level battery heating for cold-weather operation. It shares the master unit's wall- or floor-mount enclosure, IP66 rating, and CAN 2.0/RS485 communication, and is covered by a 10-year warranty with a cycle life beyond 6,000 cycles at 95% depth of discharge.
Specifications
Battery
| Module capacity | 5.8 kWh |
|---|---|
| Scalability (slave units per master) | 1-5 |
| Cycle life (95% DOD) | 6000 cycles |
Physical
| Dimensions (W x H x D) | 474 x 715 x 150 mm |
|---|
Protection
| Ingress protection | IP66 |
|---|
Communication
| Communication interfaces | CAN 2.0 + RS485 |
|---|
General
| Battery Coupling | DC |
|---|---|
| Battery Modules Max | 5 |
| Battery Chemistry | LFP |
Documents and datasheets
Datasheets
SolaX Triple Power HV11550 V3 Extension (Slave) Battery (heated option) — Datasheet
PDF · 831 kB
