Brand: SolaX
Product code: AEB-00379
SolaX Triple Power HV 5.8kWh Heated LFP Main Battery MASTER V3
- 5.5
- 115.2
- DC
- 4
- 4
- LFP
SolaX Triple Power 5.8kWh heated LFP master battery (V3), the base BMS+pack unit for a T-BAT H 5.8 HV stack.
£1,801.54 inc. VAT
£1,501.28 exc. VAT
In stock

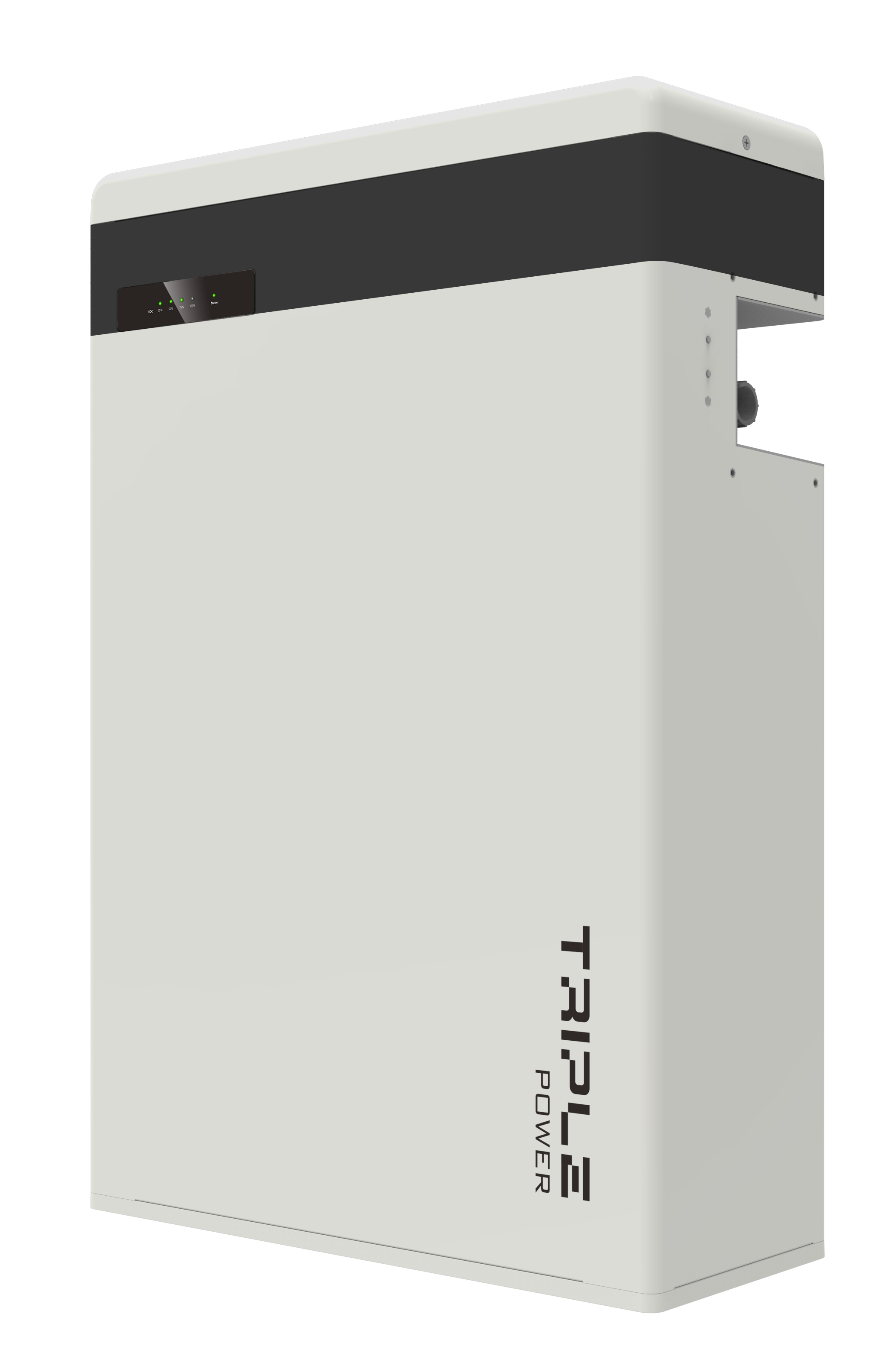

The SolaX Triple Power T-BAT H 5.8 V3 is the master battery module of SolaX's high-voltage Triple Power stack, combining a LiFePO4 pack with its own BMS in one wall- or floor-mounted enclosure. Rated at 5.8kWh nominal energy with 95% depth of discharge, it delivers 5.5kWh of usable energy and a rated charge/discharge power of 2.9kW. The heated variant extends low-temperature operation using SolaX's two-level battery heating. Up to five HV11550 V3 extension (slave) battery packs can be added to a single master unit for stacks up to 34.6kWh. The battery communicates over CAN 2.0 and RS485, carries an IP66 rating for indoor or outdoor installation, and is backed by a 10-year warranty with a rated cycle life beyond 6,000 cycles at 95% DOD.
Specifications
Battery
| Nominal energy | 5.8 kWh |
|---|---|
| Rated charge / discharge power | 2.9 kW |
| Depth of discharge | 95% |
| Operating voltage range | 100-130 V |
| Recommend charge / discharge current | 25 A |
| Max charge / discharge current | 35 A |
| Cycle life (95% DOD) | 6000 cycles |
Physical
| Dimensions (W x H x D) | 474 x 715 x 150 mm |
|---|
Environmental
| Max. operating altitude | 2000 m |
|---|
Protection
| Ingress protection | IP66 |
|---|
Communication
| Communication interfaces | CAN 2.0 + RS485 |
|---|
General
| Battery Usable | 5.5 |
|---|---|
| Battery Nominal | 115.2 |
| Battery Coupling | DC |
| Battery Max Charge | 4 |
| Battery Max Discharge | 4 |
| Battery Chemistry | LFP |
Documents and datasheets
Datasheets
SolaX Triple Power T-BAT H 5.8 V3 Master Battery (HV, heated option) — Datasheet
PDF · 831 kB
