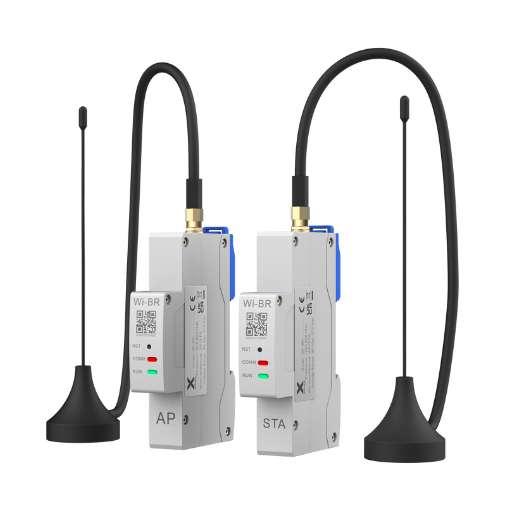

SolaX Wireless Bridge
SolaX Wireless Bridge (Wi-BR), a DIN-rail AP/STA radio pair that links a SolaX meter to the inverter without running a cable.
£70.67 inc. VAT
£58.89 exc. VAT
In stock
The SolaX Wireless Bridge replaces a wired RS485 run between a SolaX meter and inverter with a long-range radio link, supplied as an AP/STA pair for DIN-rail mounting. Using the IEEE 802.11ah protocol, it reaches up to 200m in open space and can penetrate up to four floors (about 30m vertically) through reinforced concrete, making it useful where the meter and inverter are far apart or separated by walls. Each unit has one RS485 terminal, draws under 2W from an 85-277V AC supply, and is rated IP20 for indoor use. It is compatible with SolaX's single- and three-phase meters.
Specifications
Communication
| Working method | AP / STA |
|---|---|
| Protocol | IEEE 802.11ah |
| Communication terminal | RS485 x 1 (for each model) |
| Transmission distance (open space) | 200 m |
Electrical
| Phase voltage | 85-277 Vac |
|---|---|
| Max. power consumption | 2 W |
Physical
| Dimensions | 18 x 98 x 66 mm |
|---|
Environmental
| Operating temperature | -25 to 55 °C |
|---|
Protection
| Ingress protection rating | IP20 |
|---|
Documents and datasheets
Datasheets
SolaX Wireless Bridge (Wi-BR) — Datasheet
PDF · 702 kB
