Brand: SolaX
Product code: AEB-00404

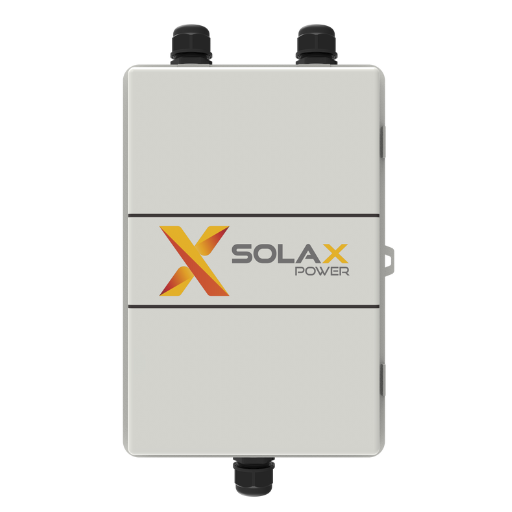

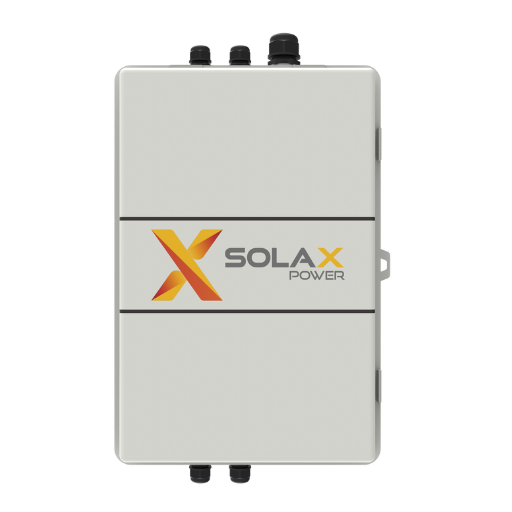

SolaX X1 EPS Emergency Power Supply Box UK
SolaX X1 EPS Box, a dual-contactor switching unit that lets a single-phase SolaX inverter and battery deliver whole-home backup power.
£235.62 inc. VAT
£196.35 exc. VAT
In stock
The SolaX X1 EPS Box integrates two contactors to simplify the wiring between a single-phase SolaX inverter, the grid and the home's loads, enabling intelligent switching between on-grid and off-grid (EPS) operation. Paired with a compatible X1 inverter and battery, it is designed for whole-home backup rather than a single limited-backup circuit, switching over in around 0.5 seconds. It is rated for 63A on the grid side and 32A in EPS mode at 230V, and is housed in an IP65 enclosure measuring 300 x 220 x 170mm and weighing 3.5kg, suitable for indoor or outdoor installation alongside the inverter.
Specifications
Grid
| Max. AC input current | 63 A |
|---|---|
| Rated AC voltage | 230 V |
| Rated AC frequency | 50/60 Hz |
EPS
| Max. EPS input current | 32 A |
|---|---|
| Rated EPS voltage | 230 V |
Load
| Rated output current, on-grid mode | 63 A |
|---|---|
| Rated output current, EPS mode | 32 A |
General
| Operating temperature | -20 to 60 °C |
|---|---|
| Switch time | 0.5 s |
| Dimensions (W x H x D) | 300 x 220 x 170 mm |
| Weight | 3.5 kg |
Protection
| Ingress protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X1 EPS Box — Datasheet
PDF · 877 kB
