Brand: SolaX
Product code: AEB-00405

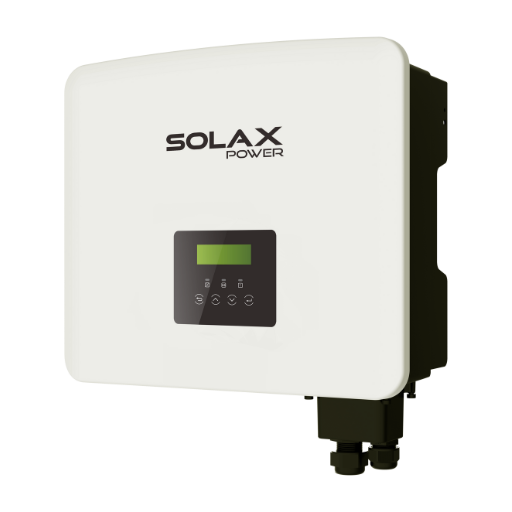

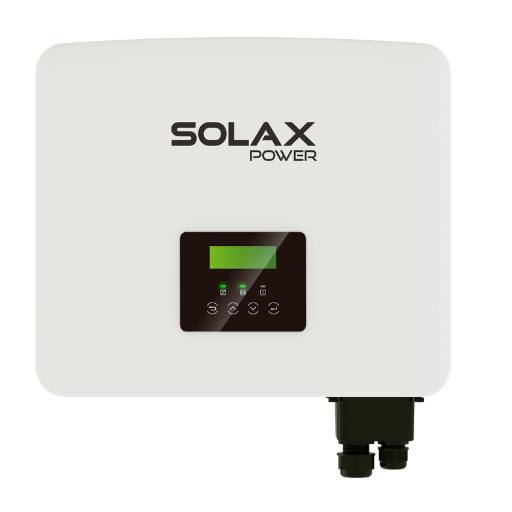

SolaX X1 G4 RetroFit AC Coupled Battery Inverter HV 5.0kW
- 5 kW
- 80
- 480
SolaX X1-FIT G4 5.0kW, a single-phase AC-coupled retrofit battery inverter that adds storage to an existing solar PV system.
£507.90 inc. VAT
£423.25 exc. VAT
In stock
The SolaX X1-FIT G4 is a single-phase retrofit battery inverter that couples on the AC side, so it can add battery storage to a home with an existing solar inverter rather than replacing it. The 5.0kW model delivers 5000W nominal AC output and up to 5500VA, with a 30A continuous battery charge/discharge current over an 80-480V battery voltage range, and is compatible with both lithium-ion and lead-acid batteries. In an outage it switches to EPS backup in under 10ms, and up to 150% EPS output is available for 10 seconds. The inverter is IP65 rated for indoor or outdoor mounting, measures 482 x 417 x 181mm and weighs 23kg, and supports on- and off-grid parallel operation with other X1-FIT units.
Specifications
AC Output
| Nominal AC output power | 5000 W |
|---|---|
| Max. AC output apparent power | 5500 VA |
| Max. AC input current | 40 A |
Battery
| Battery voltage range | 80-480 V |
|---|---|
| Max. continuous charge/discharge current | 30 A |
EPS
| Peak apparent power | 7500, 10s VA |
|---|---|
| Switch time | <10 ms |
System
| Battery charge/discharge efficiency | 97.0 / 97.0% |
|---|
Environmental
| Operating temperature range | -35 to 60 (derating above 45) °C |
|---|
General
| Dimensions (W x H x D) | 482 x 417 x 181 mm |
|---|---|
| Rated output | 5 kW |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 480 |
Protection
| Ingress protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X1-FIT G4 5.0kW — Datasheet
PDF · 204 kB
