Brand: SolaX
Product code: AEB-00416
Solax X3 60kW EPS Parallel Box G2 - Buy to Order
- 60 kW

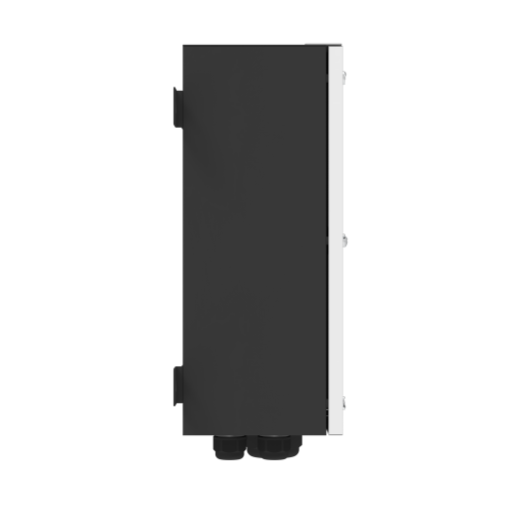

SolaX X3-EPS Parallel Box G2, 60kW model: parallel backup for up to 6 SolaX X3 hybrid inverters, 60kVA, IP65.
£996.59 inc. VAT
£830.49 exc. VAT
In stock
The X3-EPS Parallel Box G2 in its 60kW size (X3-PBOX-60kW-G2) lets several SolaX X3 hybrid inverters running in parallel supply one backup load circuit. Their EPS outputs feed the box, which serves backup loads of up to 60kVA apparent power and 87A output current, with a switchover time of under 10 seconds. Up to 6 inverters can be paralleled, the actual number depending on each inverter's maximum output power. The grid side is three-phase at 220/380V, 230/400V or 240/415V, 50 or 60Hz, and backup loads can be single- or three-phase. The enclosure is IP65 rated, measures 492 x 478 x 183mm and weighs 17kg, the smallest of the three Parallel Box G2 sizes.
Specifications
Grid (inverter side)
| Grid connection | Three phase |
|---|---|
| Rated voltage | 220/380, 230/400, 240/415 V |
| AC frequency | 50/60 Hz |
| Maximum grid input current | 87 A |
EPS (inverter side)
| Maximum number of parallel inverters (depends on inverter maximum output power) | 6 |
|---|---|
| Maximum EPS input current | 87 A |
Load (backup)
| Load connection | Single phase / three phase |
|---|---|
| Maximum apparent power | 60 kVA |
| Maximum output current | 87 A |
| Switchover time | < 10 s |
General
| Operating temperature range | -25 to 40 °C |
|---|---|
| Rated output | 60 kW |
Physical
| Dimensions (W x H x D) | 492 x 478 x 183 mm |
|---|---|
| Weight | 17 kg |
Protection
| Degree of protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X3-EPS Parallel Box G2, 60kW (X3-PBOX-60kW-G2) — Datasheet
PDF · 702 kB
