Brand: SolaX
Product code: AEB-00410

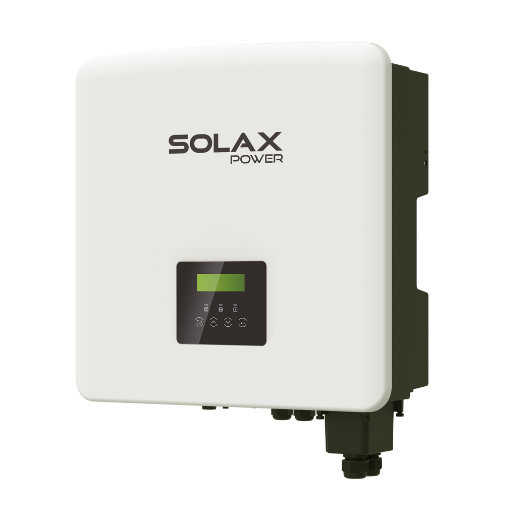

SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW
- 10 kW
- Three phase
- 180
- 800
SolaX X3-FIT G4 10kW, a three-phase AC-coupled retrofit battery inverter that adds storage to an existing solar PV system.
£654.26 inc. VAT
£545.21 exc. VAT
In stock
The SolaX X3-FIT G4 is a three-phase retrofit battery inverter that couples on the AC side, adding battery storage to a home or small commercial site with an existing solar inverter rather than replacing it. The 10kW model delivers 10000W nominal AC output and up to 11000VA, draws up to 30A continuous charge/discharge current from a lithium-ion or lead-acid battery over a 180-800V range, and switches to EPS backup in under 10ms with up to 150% EPS output for 10 seconds. It reaches up to 98.0% maximum efficiency, is IP65 rated for indoor or outdoor mounting, measures 503 x 503 x 199mm and weighs 30kg, and supports on- and off-grid parallel operation up to 150kW with other X3-FIT units.
Specifications
AC Output
| Nominal AC output power | 10000 W |
|---|---|
| Max. AC output apparent power | 11000 VA |
| Max. AC input current | 32 A |
Battery
| Battery voltage range | 180-800 V |
|---|---|
| Max. continuous charge/discharge current | 30 A |
EPS
| Peak apparent power | 18000, 10s VA |
|---|
System
| Max. efficiency | 98.0% |
|---|---|
| Euro. efficiency | 97.7% |
Environmental
| Operating temperature range | -35 to 60 (derating above 45) °C |
|---|
General
| Dimensions (W x H x D) | 503 x 503 x 199 mm |
|---|---|
| Rated output | 10 kW |
| Phases | Three phase |
| Inverter Battery Vmin | 180 |
| Inverter Battery Vmax | 800 |
Protection
| Ingress protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X3-FIT G4 10kW — Datasheet
PDF · 210 kB
