Brand: SolaX
Product code: AEB-00411

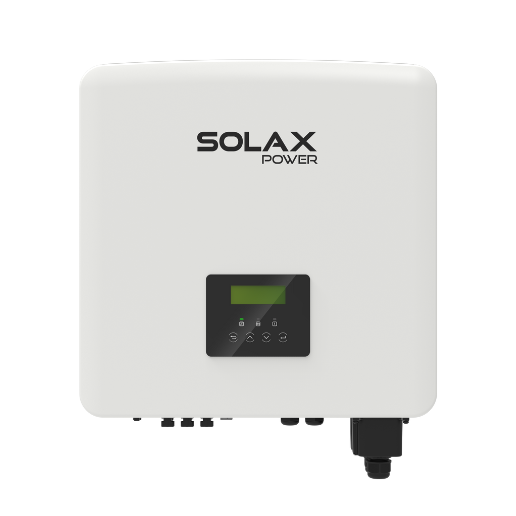

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 15.0kW
- 15 kW
- Three phase
- Hybrid
- 30
- 180
- 950
SolaX X3-Hybrid G4 15.0kW three-phase hybrid inverter with dual MPPT, up to 200% EPS overload backup and VPP readiness.
£2,140.69 inc. VAT
£1,783.91 exc. VAT
Out of stock
The SolaX X3-Hybrid G4 is a three-phase hybrid inverter that combines solar generation and battery storage, built for residential and small commercial systems. The 15.0kW model accepts up to 30kWp of PV across 2 MPP trackers with a 180-950V MPPT range, and connects to a lithium or lead-acid battery over a 120-800V range at up to 30A charge/discharge current. On a grid outage it switches to EPS backup in under 10ms, with up to 200% EPS overload output available for 10 seconds, and it reaches up to 98.0% maximum efficiency. The inverter is IP65 rated, measures 503 x 503 x 199mm, and supports on- and off-grid parallel operation up to 150kW with other X3-Hybrid units.
Specifications
PV Input
| Max. recommended PV array power | 30 kWp |
|---|
AC Output
| Rated output power | 15 kW |
|---|---|
| Max. output apparent power | 15.0 kVA |
| Max. AC input current | 32.0 A |
Battery
| Max. charge/discharge current | 30 A |
|---|
EPS
| Peak EPS output power | 22.5 kVA, 10 s |
|---|
Efficiency
| Max. efficiency | 98.0% |
|---|---|
| European efficiency | 97.7% |
Environment
| Operation temperature range | -35 to 60 (>45 derating) °C |
|---|
General
| Dimensions (W x H x D) | 503 x 503 x 199 mm |
|---|---|
| Rated output | 15 kW |
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 30 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 28 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 800 |
Protection
| Ingress protection | IP65 |
|---|
Documents and datasheets
Datasheets
SolaX X3-Hybrid G4 15.0kW — Datasheet
PDF · 299 kB
