Brand: SolaX
Product code: AEB-00414

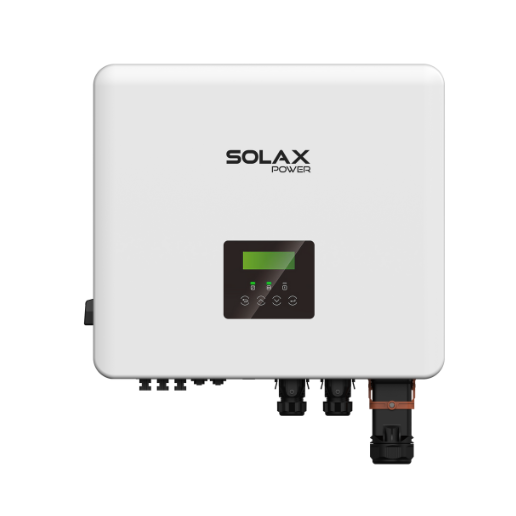

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 8.0kW
- 8 kW
- Three phase
- Hybrid
- 16
- 1
- 110
SolaX X3-HYB G4 PRO 8kW three-phase hybrid inverter with 2 MPPTs, dual battery ports and up to 200% EPS output.
£1,701.25 inc. VAT
£1,417.71 exc. VAT
Out of stock
The SolaX X3-HYB G4 PRO is a three-phase hybrid inverter for residential and light commercial systems, pairing solar generation with battery storage. The 8kW model accepts up to 16kWp of PV across 2 MPP trackers with an ultra-wide 110-950V MPPT range, and offers dual independent battery ports over a 120-800V range, each able to deliver up to 25A (50A combined) charge/discharge current. It switches to EPS backup in under 10ms, with up to 200% EPS output available for 10 seconds, and reaches up to 98.0% maximum efficiency. The inverter is IP66 rated, measures 560 x 503 x 210mm, and includes microgrid and generator modes alongside VPP-ready compatibility.
Specifications
PV Input
| Max. recommended PV array power | 16 kWp |
|---|
AC Output
| Rated output apparent power | 8000 W |
|---|---|
| Max. output apparent power | 8800 VA |
| Max. AC input current | 32 A |
Battery
| Max. charge/discharge current (two ports) | 50 A |
|---|
Efficiency
| Max. efficiency | 98.0% |
|---|---|
| European efficiency | 97.7% |
Environment
| Operating temperature range | -35 to 60 (>45 derating) °C |
|---|
General
| Dimensions (W x H x D) | 560 x 503 x 210 mm |
|---|---|
| Rated output | 8 kW |
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 16 |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 110 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 800 |
Protection
| Ingress protection | IP66 |
|---|
Documents and datasheets
Datasheets
SolaX X3-HYB G4 PRO 8kW — Datasheet
PDF · 245 kB
