Brand: SolaX
Product code: AEI-00785

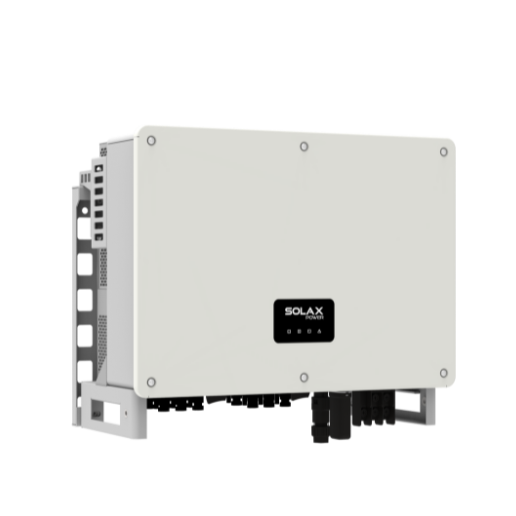

SolaX X3 MEGA 3 Phase Inverter 40kW G2
- 40 kW
- Three phase
- 60
- 180
- 1000
- 1100
SolaX X3-MEGA G2 40kW three-phase commercial on-grid string inverter with 4 MPPTs and up to 98.4% efficiency.
£1,898.72 inc. VAT
£1,582.27 exc. VAT
Out of stock
The SolaX X3-MEGA G2 is a three-phase, grid-tied commercial and industrial solar inverter built for larger rooftop and ground-mount arrays. The 40kW model accepts up to 60kWp of PV across 4 MPP trackers (2 strings each) with a 180-1000V MPPT range and up to 32A per tracker, and delivers 40kVA rated output, up to 44kVA maximum. It reaches up to 98.4% maximum efficiency, with smart air cooling, string-level current monitoring and built-in export power control. The inverter is IP66 rated for outdoor installation, measures 630 x 521 x 286mm and weighs 44kg.
Specifications
PV Input
| Max. recommended PV array power | 60 kWp |
|---|
AC Output
| Rated output apparent power | 40 kVA |
|---|---|
| Max. output apparent power | 44 kVA |
Efficiency
| Max. efficiency | 98.4% |
|---|---|
| European efficiency | 98.1% |
Environment
| Operating temperature range | -25 to 60 °C |
|---|---|
| Max. operating altitude | 4000 m |
General
| Dimensions (W x H x D) | 630 x 521 x 286 mm |
|---|---|
| Rated output | 40 kW |
| Phases | Three phase |
| Inverter Dc Max | 60 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 32 |
Protection
| Ingress protection | IP66 |
|---|
Documents and datasheets
Datasheets
SolaX X3-MEGA G2 40kW — Datasheet
PDF · 723 kB
