Brand: SolaX
Product code: AEI-00786

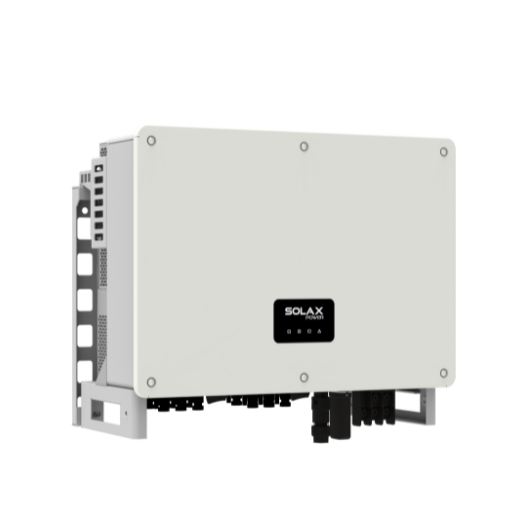

SolaX X3 MEGA 3 Phase Inverter 50kW G2
- 50 kW
- Three phase
- 75
- 180
- 1000
- 1100
SolaX X3-MEGA G2 50kW three-phase commercial on-grid string inverter with 5 MPPTs and up to 98.4% efficiency.
£2,088.69 inc. VAT
£1,740.57 exc. VAT
Out of stock
The SolaX X3-MEGA G2 is a three-phase, grid-tied commercial and industrial solar inverter built for larger rooftop and ground-mount arrays. The 50kW model accepts up to 75kWp of PV across 5 MPP trackers (2 strings each) with a 180-1000V MPPT range and up to 32A per tracker, and delivers 50kVA rated output, up to 55kVA maximum. It reaches up to 98.4% maximum efficiency, with smart air cooling, string-level current monitoring and built-in export power control. The inverter is IP66 rated for outdoor installation, measures 630 x 521 x 286mm and weighs 45kg.
Specifications
PV Input
| Max. recommended PV array power | 75 kWp |
|---|
AC Output
| Rated output apparent power | 50 kVA |
|---|---|
| Max. output apparent power | 55 kVA |
Efficiency
| Max. efficiency | 98.4% |
|---|---|
| European efficiency | 98.1% |
Environment
| Operating temperature range | -25 to 60 °C |
|---|---|
| Max. operating altitude | 4000 m |
General
| Dimensions (W x H x D) | 630 x 521 x 286 mm |
|---|---|
| Rated output | 50 kW |
| Phases | Three phase |
| Inverter Dc Max | 75 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 32 |
Protection
| Ingress protection | IP66 |
|---|
Documents and datasheets
Datasheets
SolaX X3-MEGA G2 50kW — Datasheet
PDF · 723 kB
