Brand: SolaX
Product code: AEB-00417
SolaX X3 Ultra Hybrid 3 Phase Inverter - Buy to Order
- Three phase
- Hybrid
- 50
- 120
- 950
- 1000

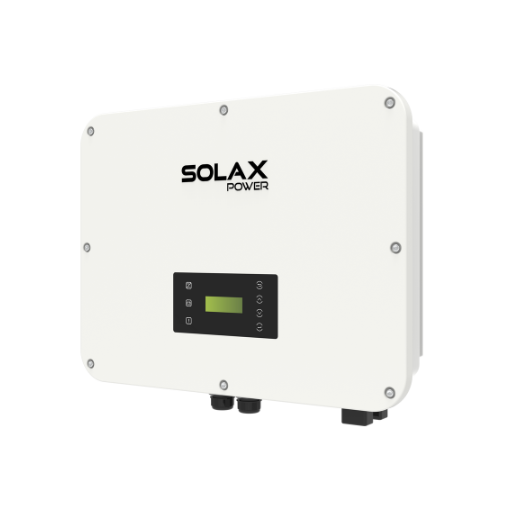

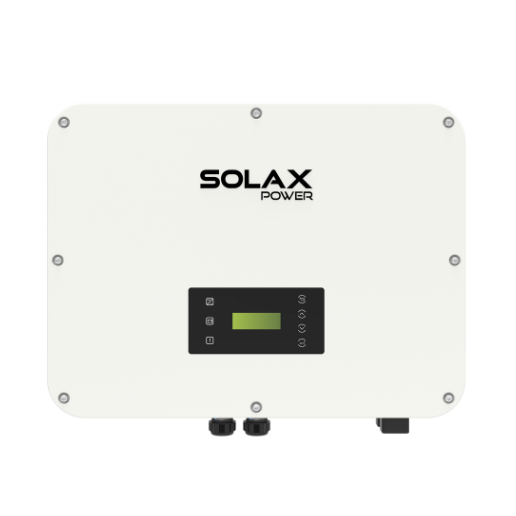

SolaX X3-Ultra 25kW three-phase C&I hybrid inverter with 3 MPPTs, dual battery ports and up to 200% EPS overload.
£3,475.07 inc. VAT
£2,895.89 exc. VAT
Out of stock
The SolaX X3-Ultra is a three-phase hybrid inverter aimed at commercial and industrial sites, pairing solar generation with battery storage at higher power than SolaX's residential range. The 25kW model accepts up to 50kWp of PV across 3 MPP trackers with a 120-950V MPPT range, and connects to a lithium battery over a 120-800V range at up to 60A charge/discharge current. On a grid outage it switches to EPS backup in under 10ms, with up to 200% EPS overload output available for 10 seconds, and it reaches up to 98.0% maximum efficiency. The inverter is IP66 rated, measures 696 x 526 x 240mm, and up to 10 units can be paralleled for on- or off-grid operation, with microgrid and generator modes for flexible site design.
Specifications
AC Output
| Rated output apparent power | 25000 VA |
|---|---|
| Max. output apparent power | 27500 VA |
| Max. AC input current | 50.0 A |
Battery
| Max. charge/discharge current | 60 A |
|---|
Efficiency
| Max. efficiency | 98.0% |
|---|---|
| European efficiency | 97.7% |
Environment
| Operating temperature range | -35 to 60 (>45 derating) °C |
|---|
General
| Dimensions (W x H x D) | 696 x 526 x 240 mm |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 50 |
| Inverter Mppt Vmin | 120 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 36 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 800 |
Protection
| Ingress protection | IP66 |
|---|
Documents and datasheets
Datasheets
SolaX X3-Ultra 25kW — Datasheet
PDF · 235 kB
