Solidhook Pan H47/134 30X6

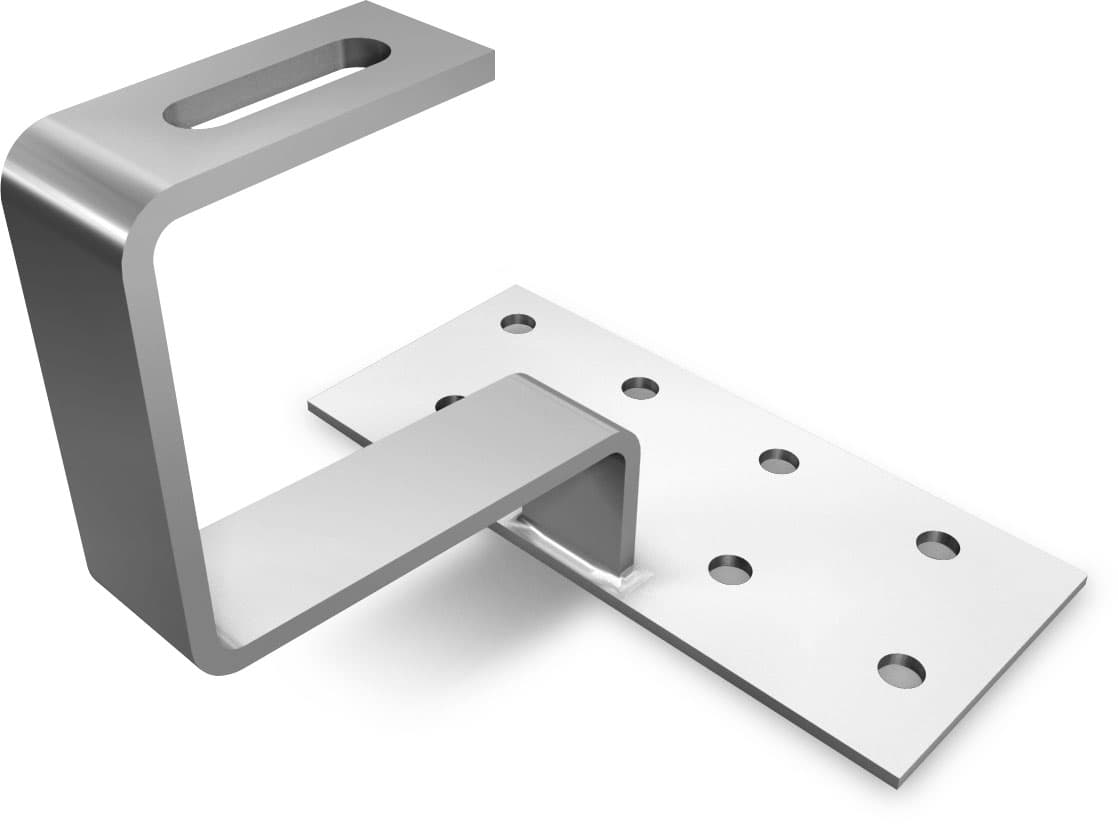

The K2 roof hook for pan tile roofs is a Z-shaped bracket for fixing K2 SolidRail mounting rail to pitched roofs finished in pantiles. A slotted hole in the bracket takes a hammerhead screw and M10 collar nut, letting the rail position be adjusted along the hook before final tightening. The base plate measures 150 x 60 x 5mm and is fixed to the roof batten or rafter, with the 30 x 6mm bracket arm giving a height under bracket of 47mm, suited to roof battens around 30mm high, and a total height of approximately 133mm. It is made from stainless steel 1.4016 for outdoor corrosion resistance. It is supplied in packs of 25 for use with K2's SolidRail pitched-roof mounting system, and is listed in K2's roof hook compatibility matrix for clay and concrete pantile roofs.
