Brand: Solis
Product code: AEI-00822
Solis 100kW S6 3 Phase 10x MPPT
- 100 kW
- Three phase
- 10 MPPT
- 160
- 1000
- 1100
Commercial 100kW three-phase grid-tied inverter with 10 MPPTs and 98.7% efficiency.
£3,719.87 inc. VAT
£3,099.89 exc. VAT
In stock

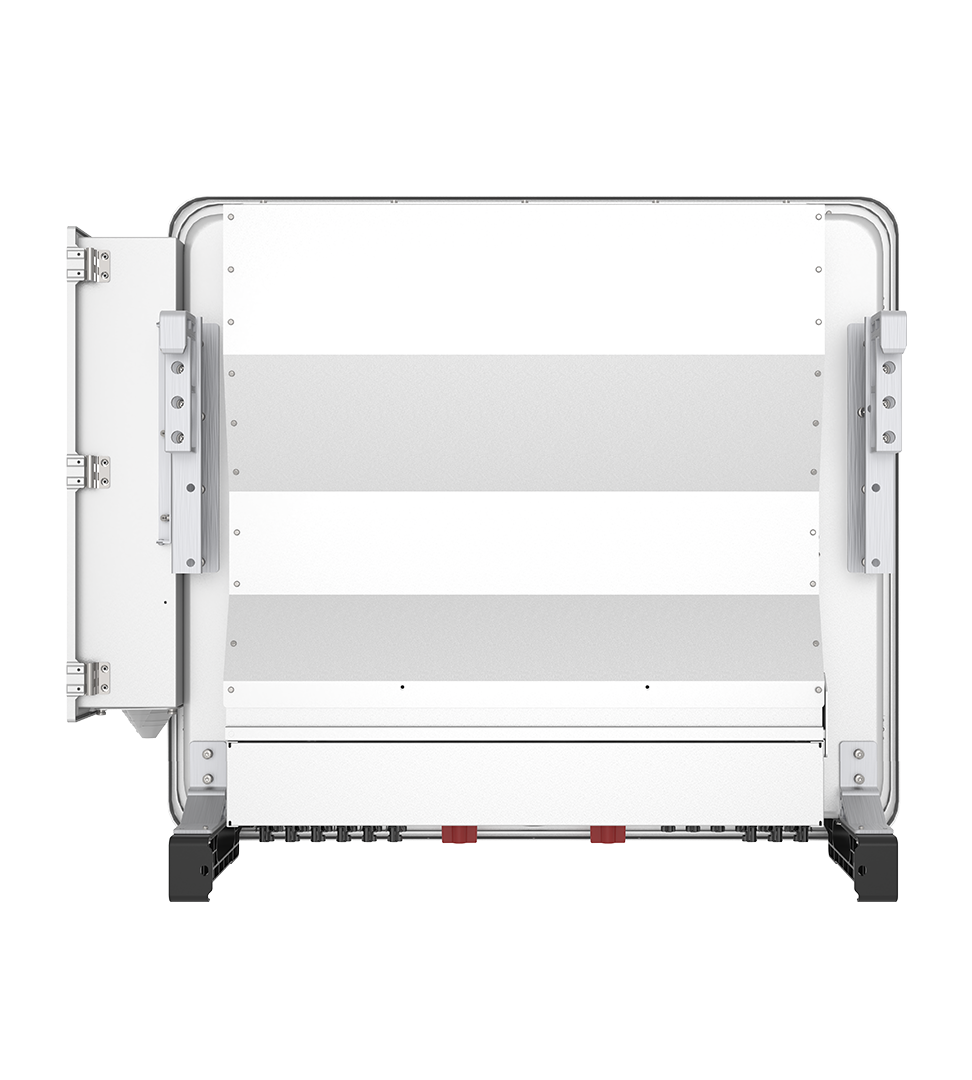

The Solis S6-GC3P100K07-LV-ND is a commercial-grade three-phase string inverter engineered for medium-scale solar installations. Featuring 10 independent MPPT inputs supporting up to 20 strings, it delivers a rated 100kW output with maximum efficiency of 98.7%. The transformerless topology combined with intelligent redundant cooling ensures reliable operation across demanding environments. Certified to G99, IEC61727 and EN50549 standards, it supports optional WiFi, GPRS and PLC communication for remote monitoring and management. Rated from -30°C to +60°C with 5-year product warranty extendable to 20 years.
Specifications
Electrical
| Rated output power | 100 kW |
|---|---|
| Max output power | 110 kW |
| Max efficiency | 98.7% |
| EU efficiency | 98.3% |
| Max DC input voltage | 1100 V |
| MPPT voltage range | 160-1000 V |
| Start-up voltage | 180 V |
| Power factor | 0.8 leading to 0.8 lagging cos(φ) |
| THD | <3% |
Physical
| Dimensions | 1014 x 567 x 345 mm (W x H x D) |
|---|---|
| Weight | 93 kg |
Environmental
| Operating temperature | -30 to +60 °C |
|---|---|
| Relative humidity | 0-100% |
| IP rating | IP66 |
| Max operating altitude | 4000 m |
General
| Rated output | 100 kW |
|---|---|
| Phases | Three phase |
| MPPT trackers | 10 MPPT |
| Inverter Mppt Vmin | 160 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 36 |
Documents and datasheets
Datasheets
S6-GC3P100K07-LV-ND — Datasheet
PDF · 570 kB
