Brand: Solis
Product code: AEB-00423

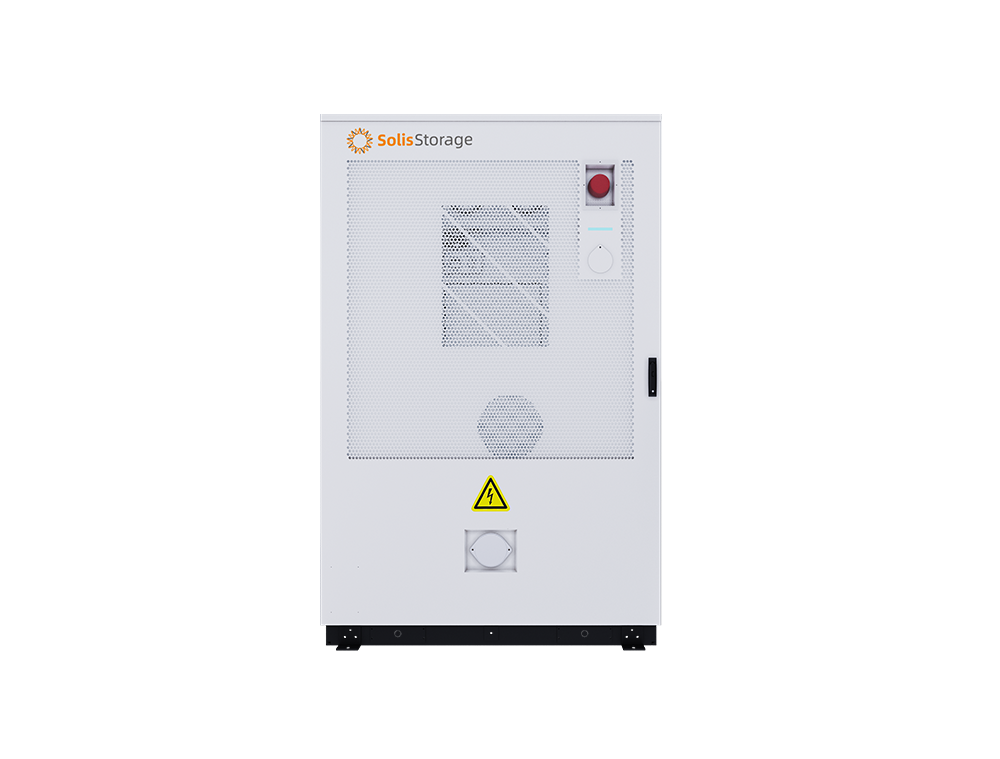

Solis 125kW Hybrid Inverter with 261kWh C5 PRO Battery Cabinet
- 125 kW
- Hybrid
- 258.3
- DC
- 832
- LFP
Solis EverCore 261kWh commercial battery cabinet with integrated 125kW three-phase hybrid inverter (Pro-C5).
£52,660.22 inc. VAT
£43,883.52 exc. VAT
Out of stock
This commercial energy storage system pairs a Solis EverCore battery cabinet with an integrated Solis S6-EH3P125K10-NV-YD-H three-phase hybrid inverter rated at 125kW. The cabinet holds 13 LFP battery packs (3.2V/314Ah cells) of 20.1kWh each for 261.2kWh of rated energy capacity, 258.3kWh usable. The inverter provides 10 MPPT inputs over a 150-950V range, up to 250kW of usable PV input, and switches to backup power in under 10ms. The cabinet is IP55-rated with C4 anti-corrosion as standard and a C5-rated option for coastal or industrial sites, and the inverter enclosure is IP66. Air-conditioned cabinet cooling, air-cooled battery packs and intelligent fan cooling for the inverter keep the system within its -25°C to +55°C operating range. Built for commercial and industrial self-consumption, peak shaving and backup applications.
Specifications
System
| Rated energy capacity | 261.2 kWh |
|---|---|
| Max. cycle efficiency | 89% |
| Dimensions (with inverter, W x H x D) | 1850 x 2230 x 1600 mm |
| Weight | 2900 kg (cabinet) + 170 kg (inverter) |
| Ingress protection | IP55 (cabinet) + IP66 (inverter) |
| Anti-corrosion class (battery cabinet) | C4/C5 (optional) |
| Operating temperature range | -25 to +55 °C |
| Noise (rated operating condition) | 75 dB(A) @ 1 m |
Battery
| Cell type | LFP 3.2 V / 314 Ah |
|---|---|
| Cell cycle life | 8000 cycles |
| System battery configuration | 1P260S |
| Number of battery packs | 13 |
| Battery pack capacity | 20.1 kWh |
Inverter
| Inverter model | S6-EH3P125K10-NV-YD-H |
|---|---|
| Max. apparent output power (on-grid) | 125 kVA |
| Back-up switch time | < 10 ms |
| Max. usable PV input power | 250 kW |
General
| Rated output | 125 kW |
|---|---|
| Hybrid | Hybrid |
| Battery Usable | 258.3 |
| Battery Coupling | DC |
| Battery Nominal | 832 |
| Battery Chemistry | LFP |
| Inverter Mppt Vmin | 150 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 42 |
