Brand: Solis
Product code: AEI-00824
Solis 125kW S6 3 Phase 10x MPPT
- 125 kW
- Three phase
- 10 MPPT
- 160
- 1000
- 1100
Commercial 125kW three-phase grid-tied inverter with 10 MPPTs and 98.7% maximum efficiency.
£4,117.55 inc. VAT
£3,431.29 exc. VAT
In stock

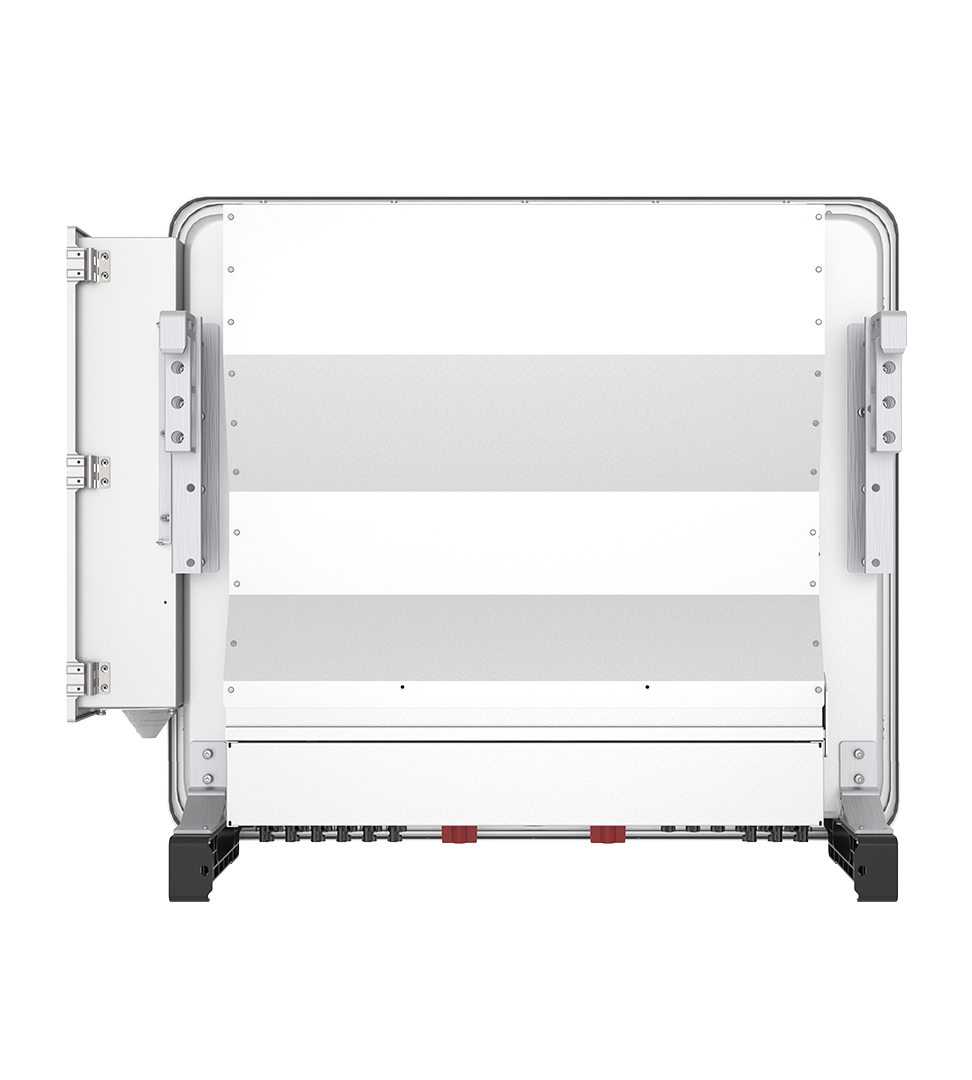

The Solis S6-GC3P125K07-LV-ND is a commercial three-phase string inverter rated at 125kW, with 10 independent MPPT inputs, an MPPT voltage range of 160-1000V and a maximum DC input voltage of 1100V, each MPPT taking up to 42A. Maximum efficiency is 98.7%, with 98.3% EU weighted efficiency, a start-up voltage of 180V, power factor above 0.99 (0.8 leading to 0.8 lagging) and THD below 3%. It measures 1014 x 567 x 345mm, weighs 96kg, and is rated IP66 for operation from -30°C to +60°C at up to 4000m altitude. It meets G99, IEC61727, EN50549-1/2 and VDE4110 grid standards, and carries a 5-year warranty extendable to 20 years.
Specifications
Electrical
| Rated output power | 125 kW |
|---|---|
| Max output power | 125 kW |
| Max efficiency | 98.7% |
| EU efficiency | 98.3% |
| Max DC input voltage | 1100 V |
| MPPT voltage range | 160-1000 V |
| Start-up voltage | 180 V |
| Power factor | >0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THD | <3% |
Physical
| Dimensions | 1014 x 567 x 345 mm (W x H x D) |
|---|---|
| Weight | 96 kg |
Environmental
| Operating temperature | -30 to +60 °C |
|---|---|
| Relative humidity | 0-100% |
| IP rating | IP66 |
| Max operating altitude | 4000 m |
General
| Rated output | 125 kW |
|---|---|
| Phases | Three phase |
| MPPT trackers | 10 MPPT |
| Inverter Mppt Vmin | 160 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 42 |
Documents and datasheets
Datasheets
S6-GC3P125K07-LV-ND — Datasheet
PDF · 570 kB
