Brand: Solis
Product code: AEI-00826
Solis 25kW S6 3PH Grid-Tied Inverter - 3-MPPT
- 25 kW
- Three phase
- 2
- 180
- 1000
- 1100
Solis S6-GC3P25K three-phase grid-tied inverter, 25kW rated output, 3 MPPT.
£1,368.58 inc. VAT
£1,140.48 exc. VAT
Out of stock

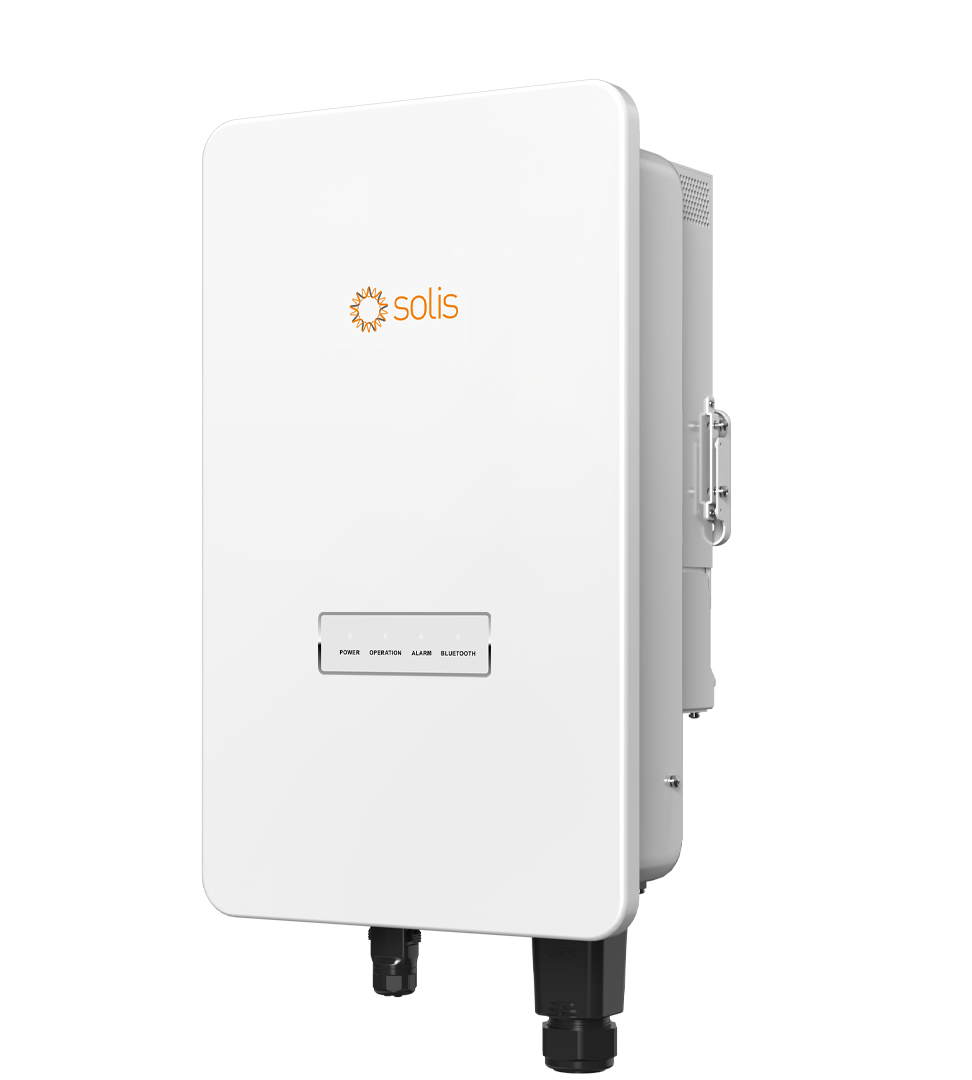

The Solis S6-GC3P25K is a transformerless three-phase string inverter rated at 25kW AC output, designed for commercial PV systems. It features 3 MPPT trackers with an input voltage range of 180-1000V and 1100V maximum. The inverter achieves 98.5% maximum efficiency with integrated arc-fault protection and adaptive weak-grid operation. With IP66 environmental protection for -25°C to +60°C operation, it supports RS485 communication with optional WiFi, GPRS and 4G for remote monitoring and control.
Specifications
Input DC
| Recommended max. PV power | 37.5 kW |
|---|---|
| Max. input voltage | 1100 V |
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 180-1000 V |
| MPPT count | 3 |
| Max. input strings | 6 |
Output AC
| Rated output power | 25 kW |
|---|---|
| Rated grid voltage | 3/N/PE, 220V/380V, 230V/400V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) cos(φ) |
Efficiency
| Max. efficiency | 98.5% |
|---|---|
| EU efficiency | 98.0% |
General
| Topology | Transformerless |
|---|---|
| Operating ambient temperature range | -25 to +60 °C |
| Ingress protection | IP66 |
| Rated output | 25 kW |
| Phases | Three phase |
| Inverter Strings Per Mppt | 2 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 40 |
Features
| DC connection | MC4 connector |
|---|---|
| AC connection | OT terminal |
| Communication | RS485, Optional: Wi-Fi, GPRS, 4G |
Documents and datasheets
Datasheets
S6-GC3P25K03-NV-ND — Datasheet
PDF · 187 kB
