Solis 3.0kW 5G Energy Storage( includes meter)

3 kW
40
60

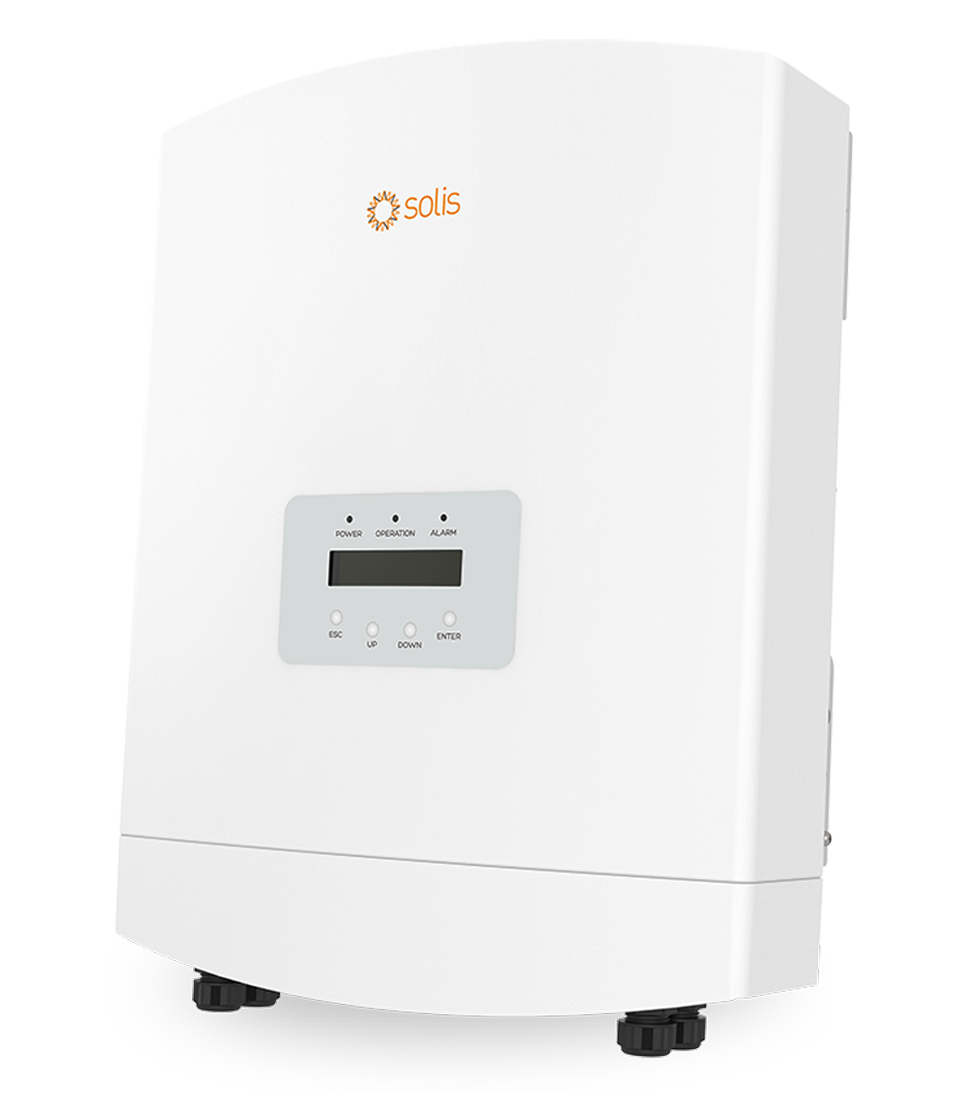

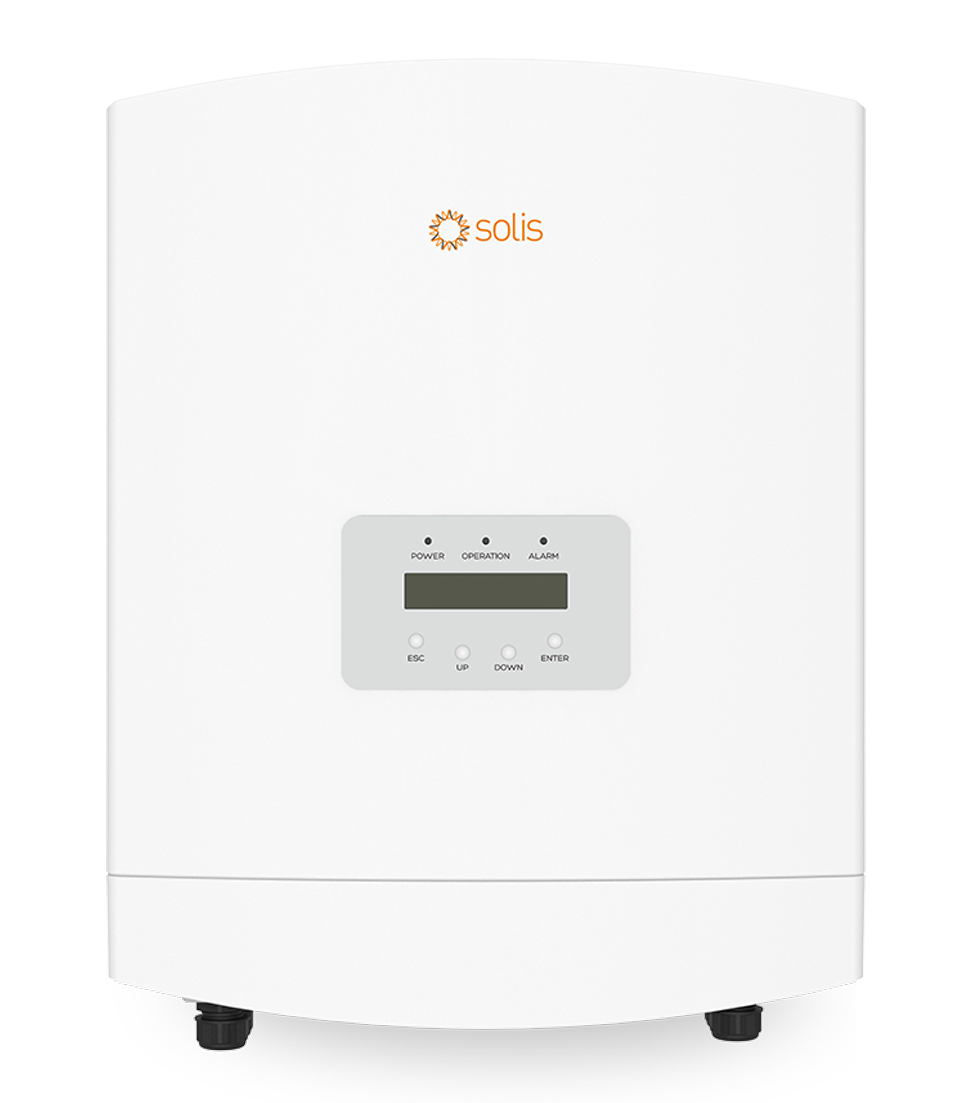

Solis S5-EA1P3K-L single-phase AC-coupled energy storage inverter, 3kW rated output.

£400.00 inc. VAT

£333.33 exc. VAT

In stock

The Solis S5-EA1P3K-L is a 3kW single-phase AC-coupled inverter and battery charger that adds energy storage and emergency power supply to an existing grid-tied PV system. It accepts 40-60V lead-acid or lithium-ion batteries from 50-2000Ah with a maximum charge/discharge current of 60A, reaching up to 94.5% battery discharge efficiency. Natural convection cooling means no external fan, and the unit supports multiple working modes with one-click app configuration. It measures 405 x 510 x 150mm, weighs 12.1kg, is IP65-rated for -25°C to +60°C operation, and communicates over RS485/CAN with optional Wi-Fi or GPRS.

Specifications

Output AC

Rated output power	3 kW
Max. output power	3 kW
Max. apparent output power	3 kVA
Rated grid voltage	220 / 230 V
Grid voltage range	184 - 264 V
Rated grid output current	13.6 / 13 A
Max. output current	20 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging) cos(φ)
THDi	< 3%

Battery

Battery type	Li-ion / Lead-acid
Battery capacity	50 - 2000 Ah
Max. charge / discharge current	60 A

Efficiency

Max. battery charge efficiency	94.0%
Max. battery discharge efficiency	94.5%

General

Dimensions (W x H x D)	405 x 510 x 150 mm
Weight	12.1 kg
Topology	High frequency isolation
Operating ambient temperature range	-25 to +60 °C
Ingress protection	IP65
Cooling concept	Natural cooling
Max. operation altitude	2000 m
Rated output	3 kW
Inverter Battery Vmin	40
Inverter Battery Vmax	60

Features

DC connection	Screw terminal
AC connection	Screw clamp terminal (max. 6 mm²)
Display	LCD
Communication	RS485, CAN, optional Wi-Fi, GPRS

Documents and datasheets

Datasheets

S5-EA1P3K-L — Datasheet
PDF · 182 kB
Download
