Brand: Solis
Product code: AEI-00819
Solis 5kW S5 3Phase Dual MPPT - DC
- 5 kW
- Three phase
- 7.5
- 1
- 160
- 1000

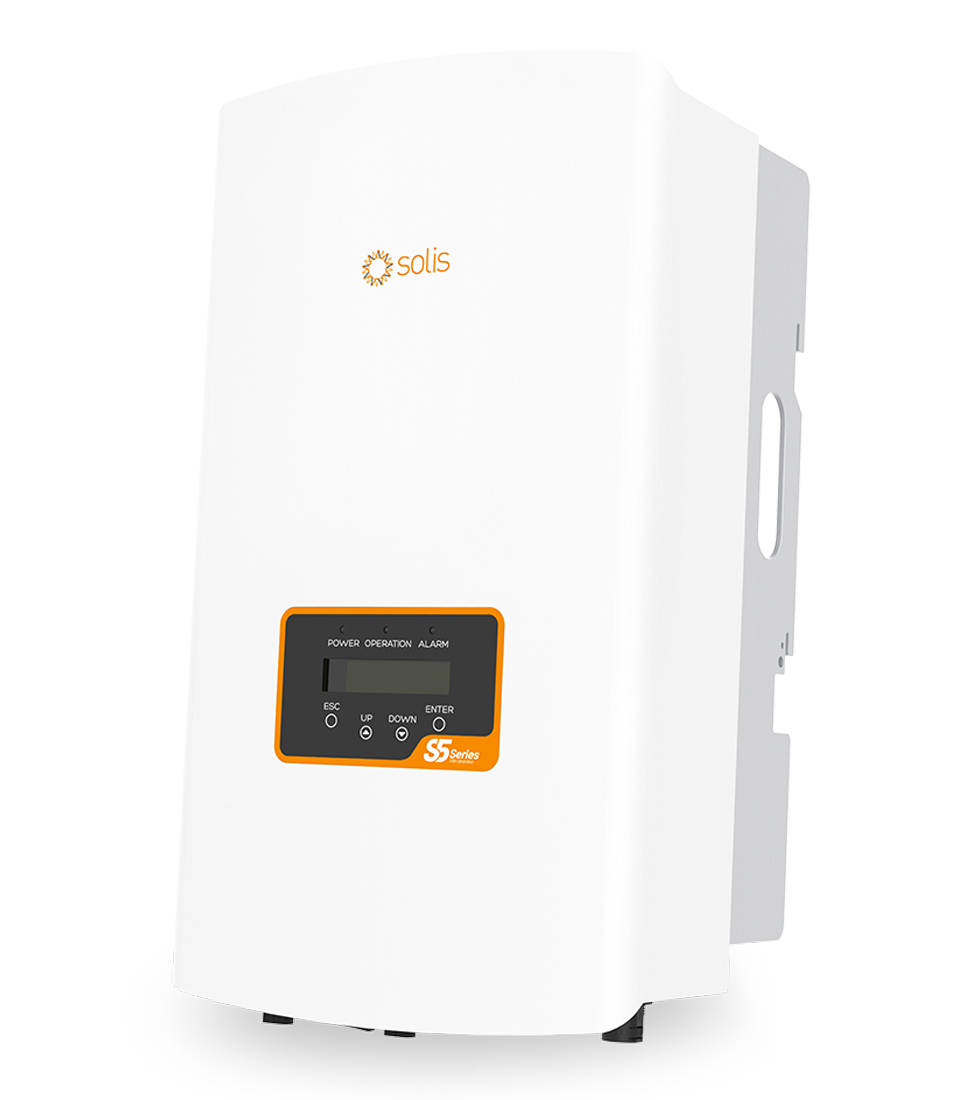

Solis S5-GR3P5K three-phase grid-tied inverter, 5kW rated output, dual MPPT, 98.5% max efficiency.
£734.85 inc. VAT
£612.37 exc. VAT
In stock
The Solis S5-GR3P5K is a transformerless three-phase string inverter rated at 5kW AC output, designed for residential and small commercial PV systems. It features dual MPPT trackers with an input voltage range of 160-1000V, accommodating 7.5kW of PV power across up to four strings. The inverter achieves 98.5% maximum efficiency and operates at 97.9% EU efficiency. It includes integrated arc-fault protection, anti-islanding safeguards, and adaptive weak-grid operation to work reliably in challenging grid conditions. With IP66 environmental protection for -25°C to +60°C operation and weighing 16.5kg, it supports RS485 communication with optional WiFi and GPRS for remote monitoring and firmware updates.
Specifications
Input DC
| Recommended max. PV power | 7.5 kW |
|---|---|
| Max. input voltage | 1100 V |
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| Max. input current | 16 A |
| Max. short circuit current | 20 A |
Output AC
| Rated output power | 5 kW |
|---|---|
| Max. apparent output power | 5.5 kVA |
| Max. output power | 5.5 kW |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Rated grid output current | 7.6 / 7.2 A |
| Max. output current | 7.9 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) cos(φ) |
| THDi | < 2% |
Efficiency
| Max. efficiency | 98.3% |
|---|---|
| EU efficiency | 97.7% |
General
| Topology | Transformerless |
|---|---|
| Self-consumption (night) | < 1 W |
| Operating ambient temperature range | -25 to +60 °C |
| Relative humidity | 0 - 100% |
| Ingress protection | IP66 |
| Cooling concept | Natural convection |
| Max. operation altitude | 4000 m |
| Weight | 16.5 kg |
| Rated output | 5 kW |
| Phases | Three phase |
| Inverter Dc Max | 7.5 |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 160 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 16 |
| Hybrid | PV only |
| MPPT trackers | 2 MPPT |
| Solar planner | Inverter |
Features
| DC connection | MC4 connector |
|---|---|
| AC connection | Terminal block |
| Communication | RS485, optional Wi-Fi, GPRS |
Documents and datasheets
Datasheets
S5-GR3P5K — Datasheet
PDF · 195 kB
