Solis 60kW S5 3 Phase 6x MPPT - DC

60 kW
Three phase
6 MPPT
180
1000
1100

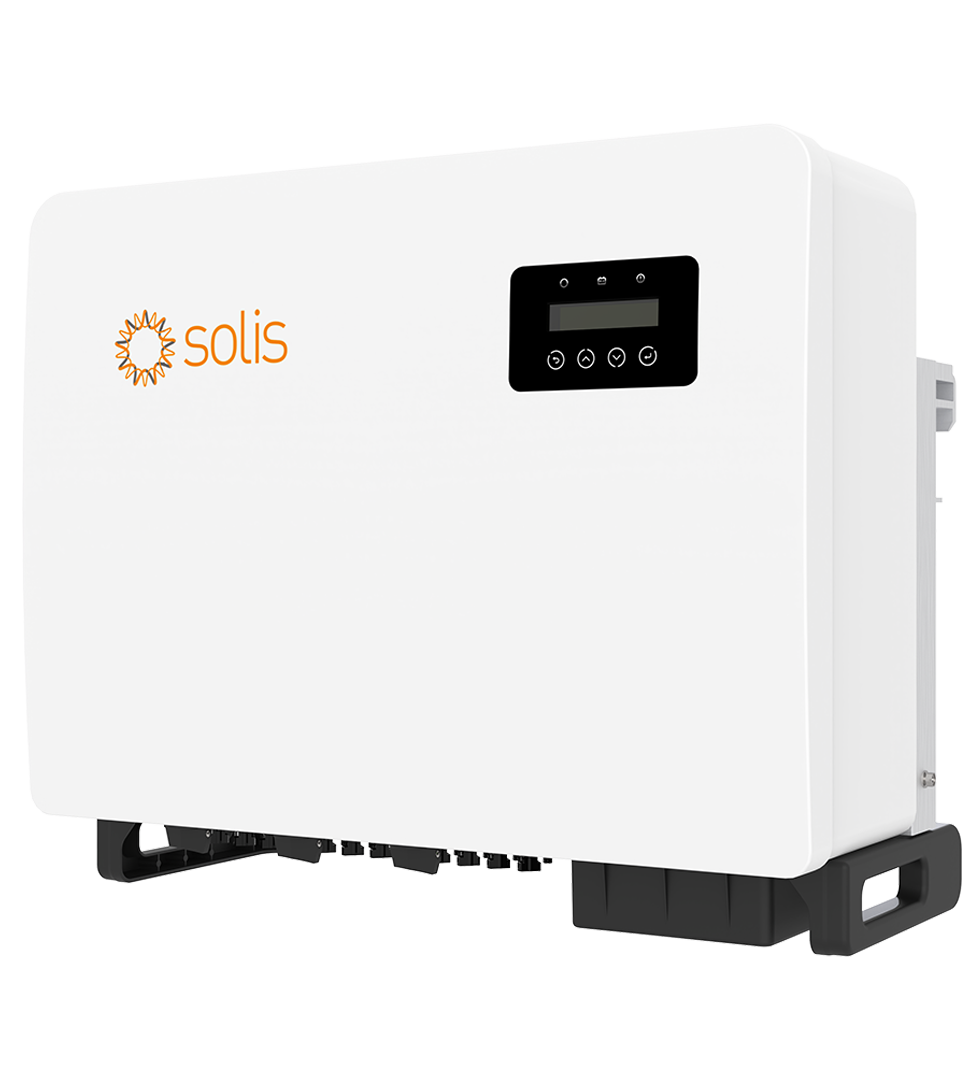

Solis S5-GC60K three-phase commercial PV string inverter, 60kW rated output, 6 MPPTs, IP66.

£2,666.93 inc. VAT

£2,222.44 exc. VAT

In stock

The Solis S5-GC60K is a three-phase, transformerless grid-tied string inverter for commercial and industrial PV installations, rated at 60kW with a maximum output of 66kW. It has 6 MPPTs across up to 12 input strings, supports a DC input up to 1100V, and reaches a maximum efficiency of 98.7%. Built-in features include AFCI fire-risk protection, intelligent string monitoring with I-V curve scanning, optional nighttime PID recovery, and an IP66 enclosure with intelligent fan cooling rated for -25°C to +60°C. It weighs 53.7kg and connects via MC4 (DC) and OT terminals (AC).

Specifications

Input DC

Max. input voltage	1100 V
Rated voltage	600 V
Start-up voltage	195 V
MPPT voltage range	180 - 1000 V
Max. input current	6 x 32 A
Max. short circuit current	6 x 40 A
MPPT number / Max. input strings number	6 / 12

Output AC

Rated output power	60 kW
Max. apparent output power	66 kVA
Max. output power	66 kW
Rated grid voltage	3/N/PE, 220/380, 230/400 V
Rated grid frequency	50 / 60 Hz
Rated grid output current	91.2 / 86.6 A
Max. output current	100.3 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging) cos(φ)
THDi	< 3%

Efficiency

Max. efficiency	98.7%
EU efficiency	98.3%

General

Dimensions (W x H x D)	691 x 578 x 338 mm
Weight	53.7 kg
Topology	Transformerless
Self-consumption (night)	< 1 W
Operating ambient temperature range	-25 to +60 °C
Ingress protection	IP66
Noise emission (typical)	< 55 dB(A)
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Rated output	60 kW
Phases	Three phase
MPPT trackers	6 MPPT
Inverter Mppt Vmin	180
Inverter Mppt Vmax	1000
Inverter Dc Vmax	1100
Inverter Mppt Imax	32

Documents and datasheets

Datasheets

S5-GC60K — Datasheet
PDF · 410 kB
Download
