Brand: Solis
Product code: AEI-00828
Solis GC3P60kW 3ph 5 MPPT - DC
- Three phase
- 5 MPPT
- 2
- 180
- 1000
- 1100

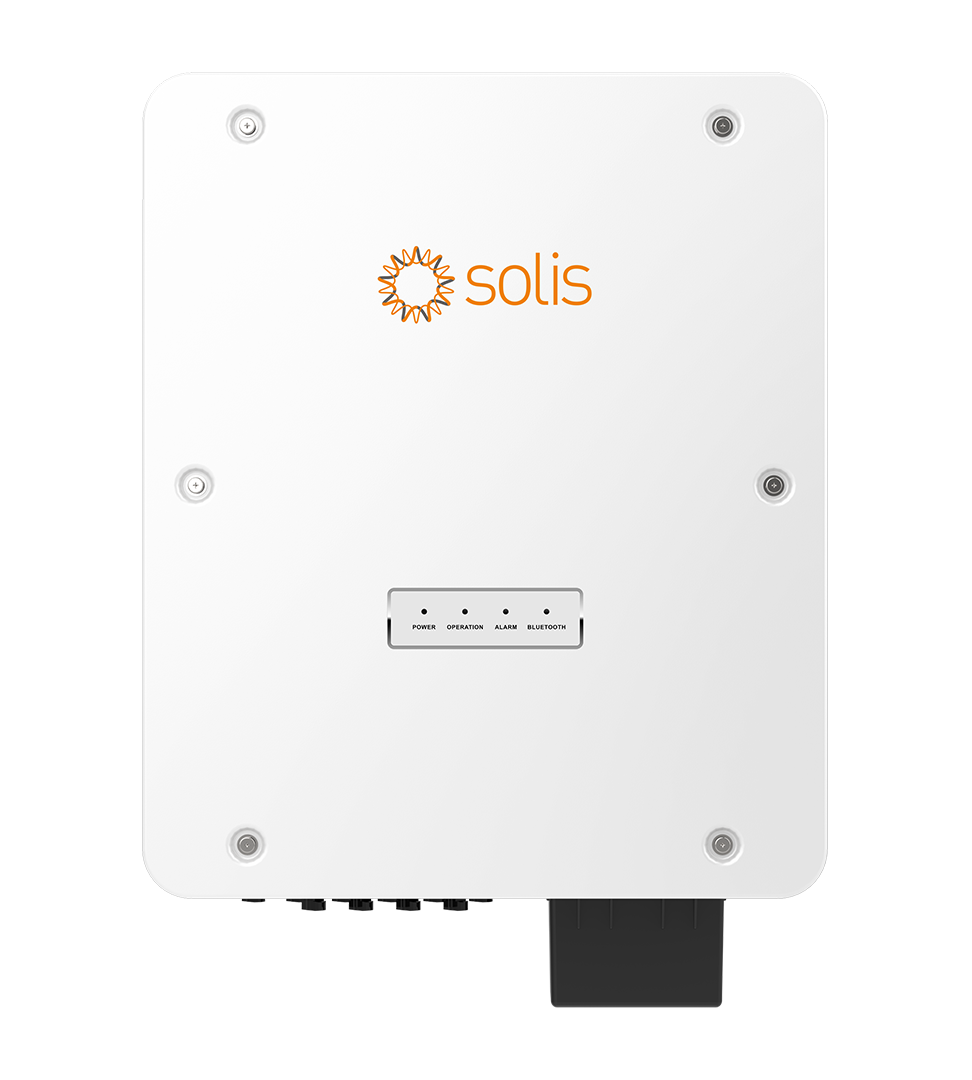

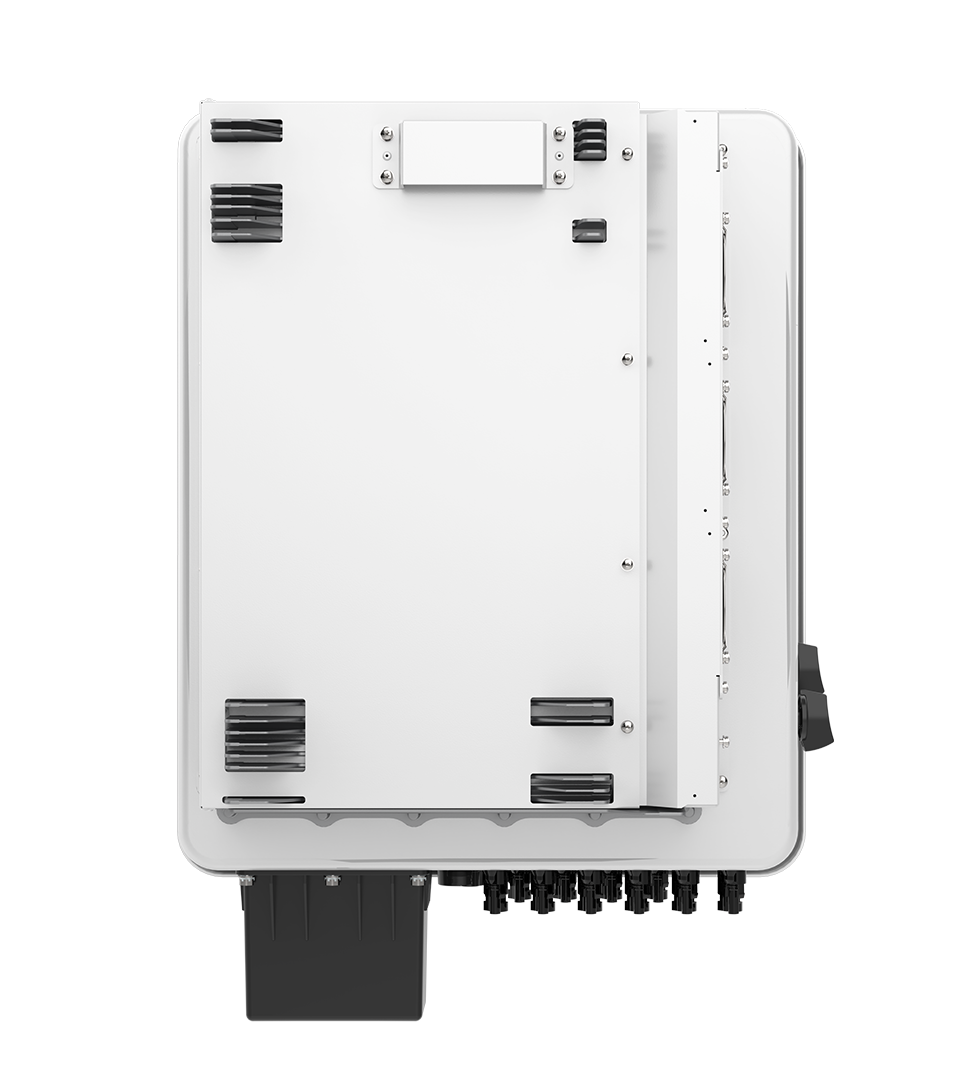

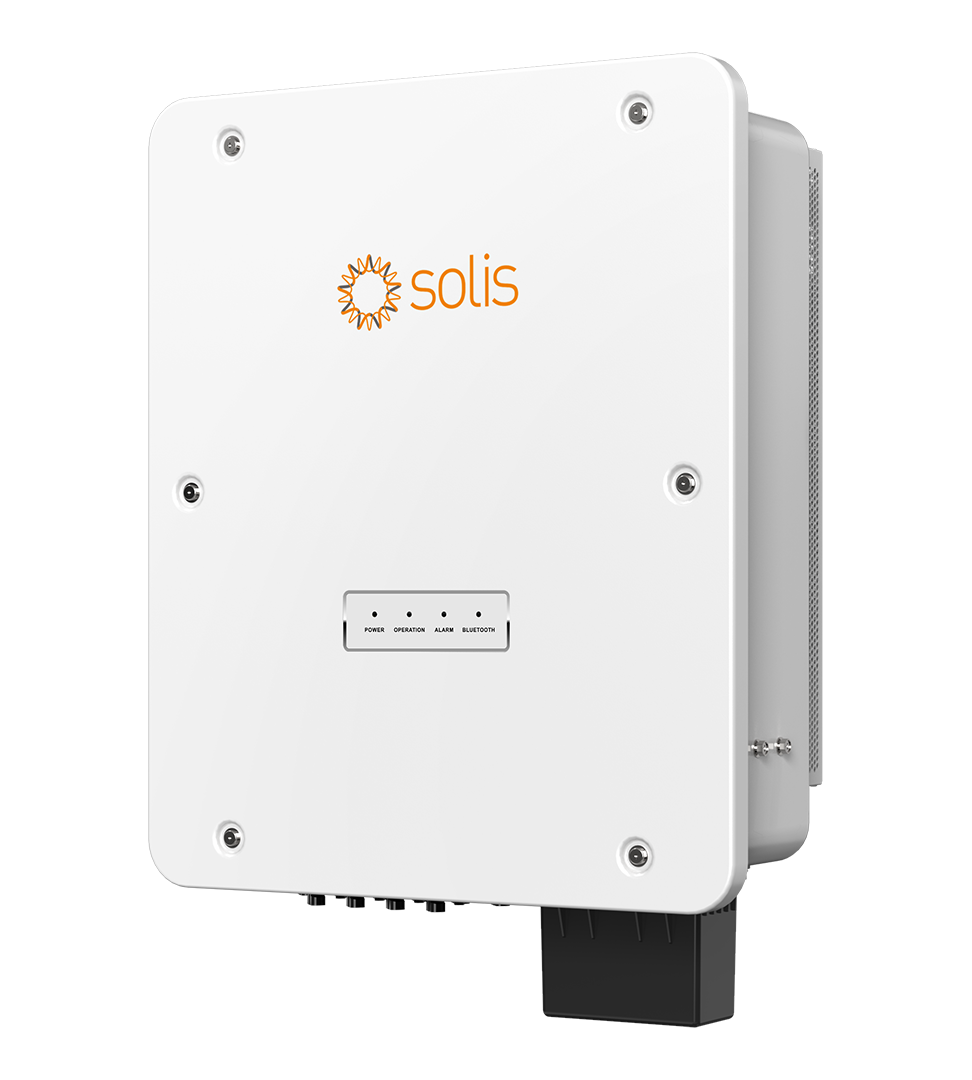

Solis S6-GC3P60K05-NV-ND 60kW three-phase grid-tied string inverter with 5 MPPT, 10 string inputs and an integrated DC switch.
£2,704.98 inc. VAT
£2,254.15 exc. VAT
In stock
The Solis S6-GC3P60K05-NV-ND is a 60kW transformerless three-phase string inverter for commercial PV installations on a 230/400V grid. It has 5 MPPT trackers taking up to 10 strings, with a maximum input current of 42A per tracker, a 180-1000V MPPT voltage range and a maximum DC input voltage of 1100V. Maximum efficiency is 98.6%, with 98.1% EU efficiency. An integrated DC switch, string monitoring, I-V curve scanning and Type II surge protection on both the DC and AC sides are standard; AFCI arc-fault protection and night-time PID recovery are optional. The fan-cooled enclosure is IP66 rated for -25°C to +60°C and weighs 38.6kg. Status is shown by LED indicators and a Bluetooth app, with RS485 communication as standard and Wi-Fi or GPRS as options.
Specifications
Input DC
| Max. input voltage | 1100 V |
|---|---|
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 180 - 1000 V |
| Max. input current | 5 × 42 A |
| Max. short circuit current | 5 × 52.5 A |
| MPPT number / Max. input strings number | 5 / 10 |
Output AC
| Rated output power | 60 kW |
|---|---|
| Max. apparent output power | 60 kVA |
| Max. output power | 60 kW |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated grid frequency | 50 / 60 Hz |
| Rated grid output current | 91.2 / 86.6 A |
| Max. output current | 91.2 / 86.6 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
Efficiency
| Max. efficiency | 98.6% |
|---|---|
| EU efficiency | 98.1% |
Protection
| Surge protection | DC Type II / AC Type II |
|---|---|
| Strings monitoring | Yes |
| I/V curve scanning | Yes |
| Integrated AFCI | Optional |
| Integrated PID recovery | Optional |
| Integrated DC switch | Yes |
General
| Dimensions (W × H × D) | 508 × 612 × 288 mm |
|---|---|
| Weight | 38.6 kg |
| Topology | Transformerless |
| Self-consumption (night) | < 1 W |
| Operating ambient temperature range | -25 to +60 °C |
| Relative humidity | 0 - 100% |
| Ingress protection | IP66 |
| Noise emission (typical) | ≤ 55 dB(A) |
| Cooling concept | Intelligent fan-cooling |
| Max. operation altitude | 4000 m |
| Phases | Three phase |
| MPPT trackers | 5 MPPT |
| Inverter Strings Per Mppt | 2 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 42 |
Features
| DC connection | MC4 connector |
|---|---|
| AC connection | OT terminal |
| Display | LED indicator & Bluetooth + APP |
| Communication | RS485, Optional: Wi-Fi, GPRS |
Documents and datasheets
Datasheets
S6-GC3P60K05-NV-ND — Datasheet
PDF · 522 kB
