Brand: Solis
Product code: AEB-00471
Solis IntelliHome 5kWh low voltage battery (wall-mounted)
- 10
- DC
- LiFePO4
- 8

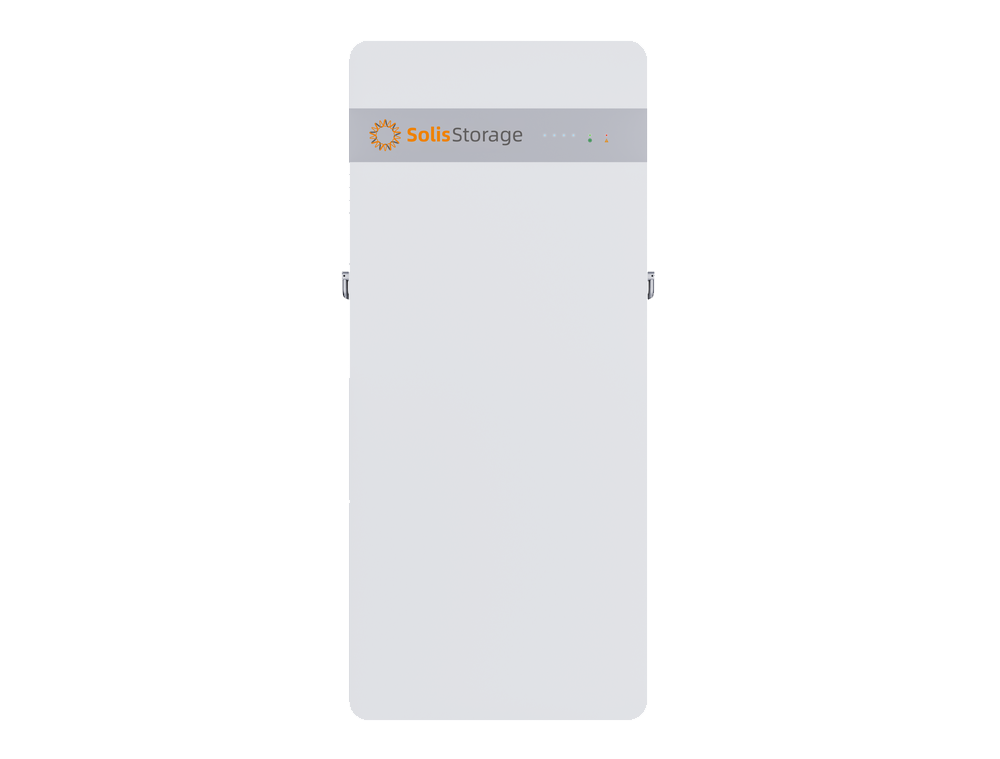

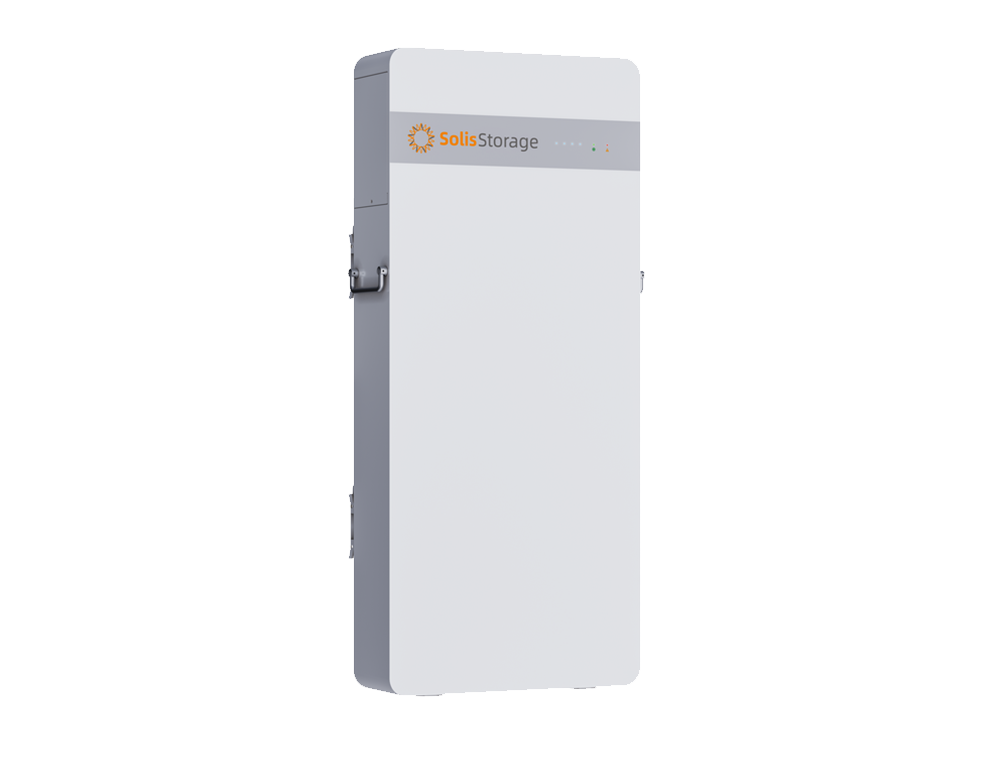

Solis IntelliHome 10kWh low-voltage battery bundled with its connection accessory pack.
£1,046.30 inc. VAT
£871.92 exc. VAT
In stock
The Solis IntelliHome 10kWh is a low-voltage LiFePO4 battery for wall- or floor-mounted installation alongside a compatible Solis low-voltage hybrid inverter. It operates at 44.8-57.6V with 100% usable depth of discharge, a recommended charge/discharge current of 100A, and CAN/RS485 communication. Up to 8 units can be paralleled for a larger bank. The unit is IP66-rated with C5-M anti-corrosion protection for outdoor installation, cooled by natural convection, and includes five-layer hardware redundancy safety protection (over/under voltage, over current, over/under temperature, DC breaker, DC overcurrent fuses, aerogel thermal insulation and explosion release valves). It measures 470 x 1075 x 175mm and weighs 90kg. This listing bundles the battery with its accessory pack: the positive and negative power cables, battery-to-battery and inverter-to-battery communication cables, and M10 terminals with washers needed to wire it to a compatible Solis low-voltage hybrid inverter.
Specifications
Performance
| Battery type | LiFePO4 |
|---|---|
| Nominal energy | 10 kWh |
| Operating voltage | 44.8-57.6 V |
| Cell capacity | 100 Ah |
| Recommended charge & discharge current | 100 A |
| Max. discharge current | 200 A |
| Depth of discharge | 100 % DOD |
| Cycle life | 8000 cycles |
| Communication | CAN/RS485 |
General
| Dimensions (W x H x D) | 470 x 1075 x 175 mm |
|---|---|
| Weight | 90 kg |
| Cooling | Natural convection |
| Ingress protection | IP66 |
| Anti-corrosion class | C5M |
| Operating ambient temperature range | -20 to 55 (smart heating function) °C |
| Storage temperature range | -10 to 45 °C |
| Max. operating altitude | 4000 m |
| Scalability | Up to 8 units in parallel |
| Battery Usable | 10 |
| Battery Coupling | DC |
| Battery Chemistry | LiFePO4 |
| Battery Modules Max | 8 |
Contents
| Bundle includes | 1x battery, 1x accessory pack (power cables, battery-to-battery and inverter-to-battery comms cables, M10 terminals, washers) |
|---|
Documents and datasheets
Datasheets
IntelliHome-10kWh-OD + Accessory Pack — Datasheet
PDF · 269 kB
