Brand: Solis
Product code: AEB-00445

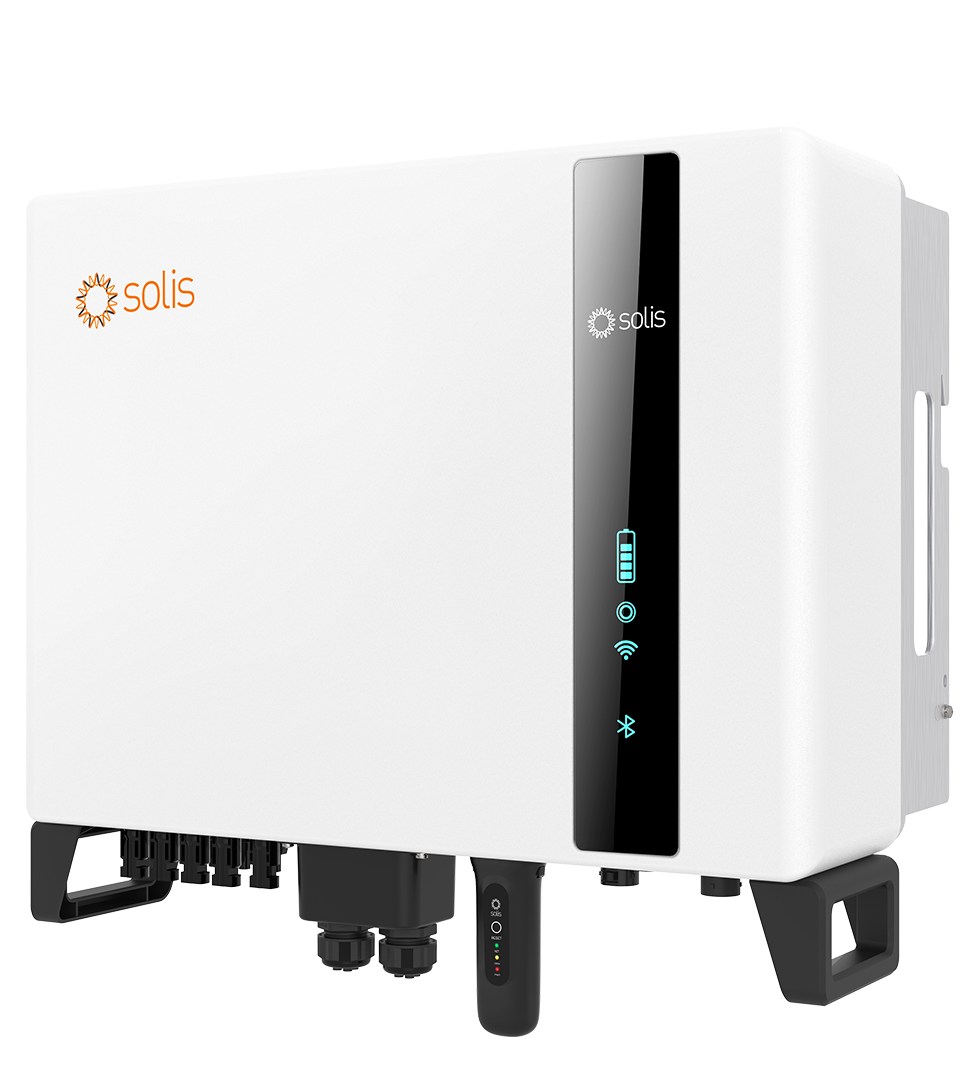

Solis S6 12 kW Three Phase Hybrid High Voltage Inverter
- 12 kW
- Three phase
- Hybrid
- 1
- 200
- 850
Solis S6-EH3P12K-H-EU(21A) 12kW three-phase high-voltage hybrid inverter, 4 MPPTs, 97.85% max efficiency.
£1,895.22 inc. VAT
£1,579.35 exc. VAT
Out of stock
The Solis S6-EH3P12K-H-EU(21A) is a three-phase, high-voltage hybrid inverter rated at 12kW, taking a recommended PV array of up to 24kW across 4 MPPT inputs (200-850V range, 21A max per input). It pairs with a 120-700V battery, with charge/discharge power up to 12kW (50A), and switches to backup power in under 10ms, delivering 1.6x rated power for 60s in off-grid mode. Maximum efficiency is 97.85%, with 97.51% EU weighted efficiency. Measuring 563 x 412 x 230mm and weighing 34.5kg, it is IP66-rated for -25°C to +60°C operation, with an LED indicator, Bluetooth and app setup, and CAN/RS485 communication.
Specifications
Electrical
| Recommended max. PV array size | 24 kW |
|---|---|
| Max. usable PV input power | 19.2 kW |
| Start-up voltage | 160 V |
| Max. short circuit current (per MPPT) | 31.5 A |
| Rated output power | 12 kW |
| Max. apparent output power | 12 kVA |
| Rated grid voltage | 380 / 400 V (3/N/PE) |
| Rated grid output current | 18.2 / 17.3 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 97.85% |
| EU efficiency | 97.51% |
| Back-up switch time | < 10 ms |
| Max. apparent output power (back-up) | 1.6x rated power, 60s |
Battery
| Max. charge / discharge power | 12 kW |
|---|---|
| Max. charge / discharge current | 50 A |
Physical
| Dimensions | 563 x 412 x 230 mm (W x H x D) |
|---|---|
| Weight | 34.5 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Noise emission (typical) | < 46.9 dB(A) |
| Max. operation altitude | 4000 m |
General
| Rated output | 12 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 200 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 21 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 700 |
Documents and datasheets
Datasheets
S6-EH3P12K-H-EU(21A) — Datasheet
PDF · 2.2 MB
