Brand: Solis
Product code: AEB-00452

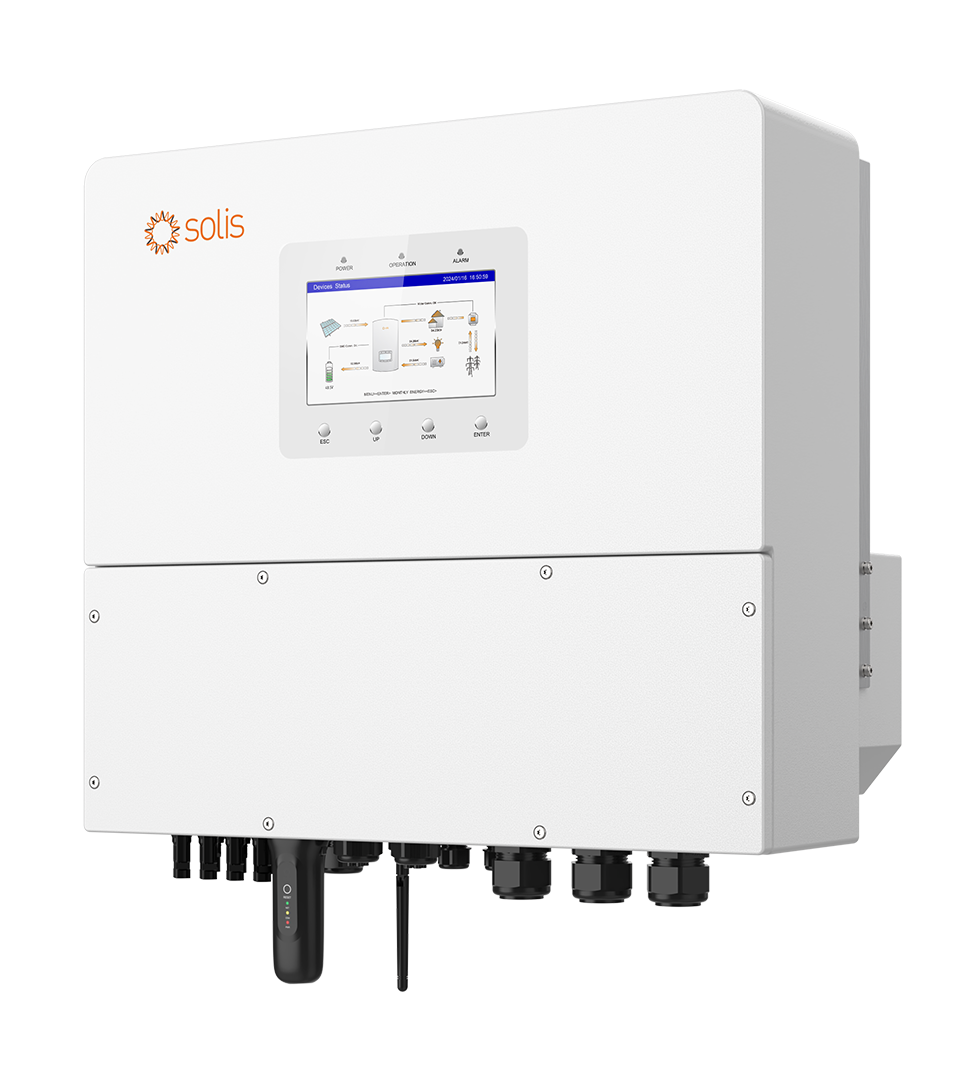

Solis S6 20 kW Three Phase Hybrid High Voltage Inverter
- 20 kW
- Three phase
- Hybrid
- 1
- 200
- 850
Solis S6-EH3P20K-H 20kW three-phase high-voltage hybrid inverter, 4 MPPTs, 97.7% max efficiency.
£2,114.13 inc. VAT
£1,761.77 exc. VAT
In stock
The Solis S6-EH3P20K-H is a three-phase, high-voltage hybrid inverter rated at 20kW, taking a recommended PV array of up to 40kW across 4 MPPT inputs (200-850V range, 20A max per input). It pairs with a 120-800V battery at up to 50A charge/discharge current, and switches to backup power in under 10ms, delivering 1.6x rated power for 10s in off-grid mode. Maximum efficiency is 97.7%, with 97.5% EU weighted efficiency. Measuring 563 x 546 x 250mm and weighing 35.2kg, it is IP66-rated for -25°C to +60°C operation, with a 7-inch LCD display, Bluetooth and app setup, and standard WiFi, LAN, CAN-BMS and RS485-Meter communication.
Specifications
Electrical
| Recommended max. PV array size | 40 kW |
|---|---|
| Max. usable PV input power | 32 kW |
| Start-up voltage | 160 V |
| Max. short circuit current (per MPPT) | 30 A |
| Rated output power | 20 kW |
| Max. apparent output power | 20 kVA |
| Rated grid voltage | 220 / 380, 230 / 400 V (3/N/PE) |
| Rated grid output current | 30.4 / 28.9 A |
| Max. input power (grid AC) | 30 kW |
| Max. input current (grid AC) | 45.6 / 43.3 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 97.7% |
| EU efficiency | 97.5% |
| BAT charged by PV / AC max. efficiency | 98.5 / 97.2% |
| Back-up switch time | < 10 ms |
| Max. apparent output power (back-up) | 1.6x rated power, 10s |
Battery
| Max. charge / discharge current | 50 A |
|---|
Physical
| Dimensions | 563 x 546 x 250 mm (W x H x D) |
|---|---|
| Weight | 35.2 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Noise emission (typical) | < 65 dB(A) |
| Max. operation altitude | 2000 m |
General
| Rated output | 20 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 200 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 800 |
Documents and datasheets
Datasheets
S6-EH3P20K-H — Datasheet
PDF · 1 MB
