Brand: Solis
Product code: AEI-00829

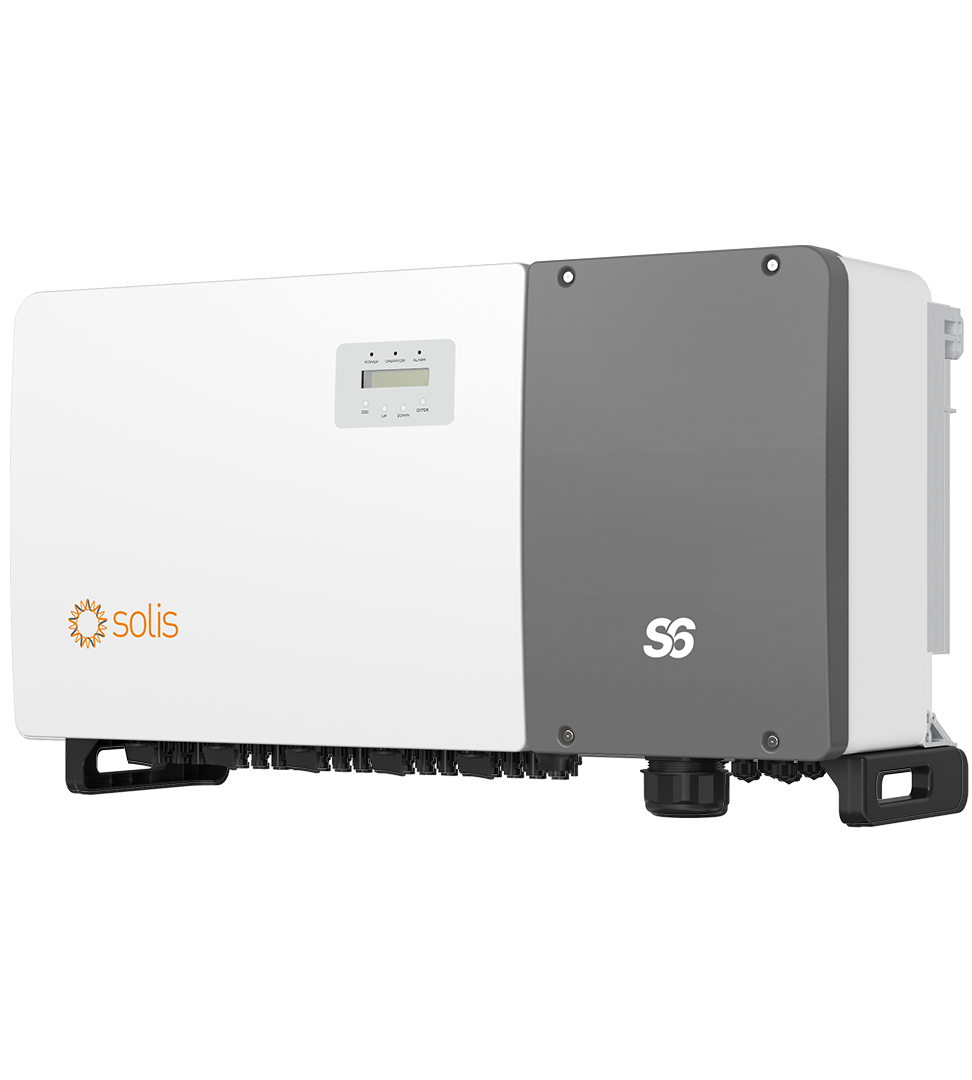

Solis S6 80kW 3 Phase Grid Tied Inverter with 8x MPPT
- 80 kW
- Three phase
- 8 MPPT
- 2
- 160
- 1000
Solis S6-GC3P80K three-phase grid-tied inverter, 80kW rated output, 8 MPPT.
£3,470.62 inc. VAT
£2,892.19 exc. VAT
In stock
The Solis S6-GC3P80K is a transformerless three-phase string inverter rated at 80kW AC output, designed for commercial PV systems. It features 8 MPPT trackers with an input voltage range of 180-1000V and 1100V maximum. The inverter achieves 98.7% maximum efficiency with integrated arc-fault protection and adaptive weak-grid operation. With IP66 environmental protection for -25°C to +60°C operation, it supports RS485 communication with optional WiFi, GPRS and 4G for remote monitoring and control.
Specifications
Input DC
| Max. input voltage | 1100 V |
|---|---|
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 160-1000 V |
| MPPT count | 8 |
| Max. input strings | 16 |
Output AC
| Rated output power | 80 kW |
|---|---|
| Rated grid voltage | 3/N/PE, 220V/380V, 230V/400V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) cos(φ) |
Efficiency
| Max. efficiency | 98.7% |
|---|---|
| EU efficiency | 98.3% |
General
| Topology | Transformerless |
|---|---|
| Operating ambient temperature range | -30 to +60 °C |
| Ingress protection | IP66 |
| Rated output | 80 kW |
| Phases | Three phase |
| MPPT trackers | 8 MPPT |
| Inverter Strings Per Mppt | 2 |
| Inverter Mppt Vmin | 160 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1100 |
Features
| DC connection | MC4 connector |
|---|---|
| AC connection | OT terminal |
| Communication | RS485, Optional: Wi-Fi, GPRS, 4G |
Documents and datasheets
Datasheets
S6-GC80K — Datasheet
PDF · 570 kB
