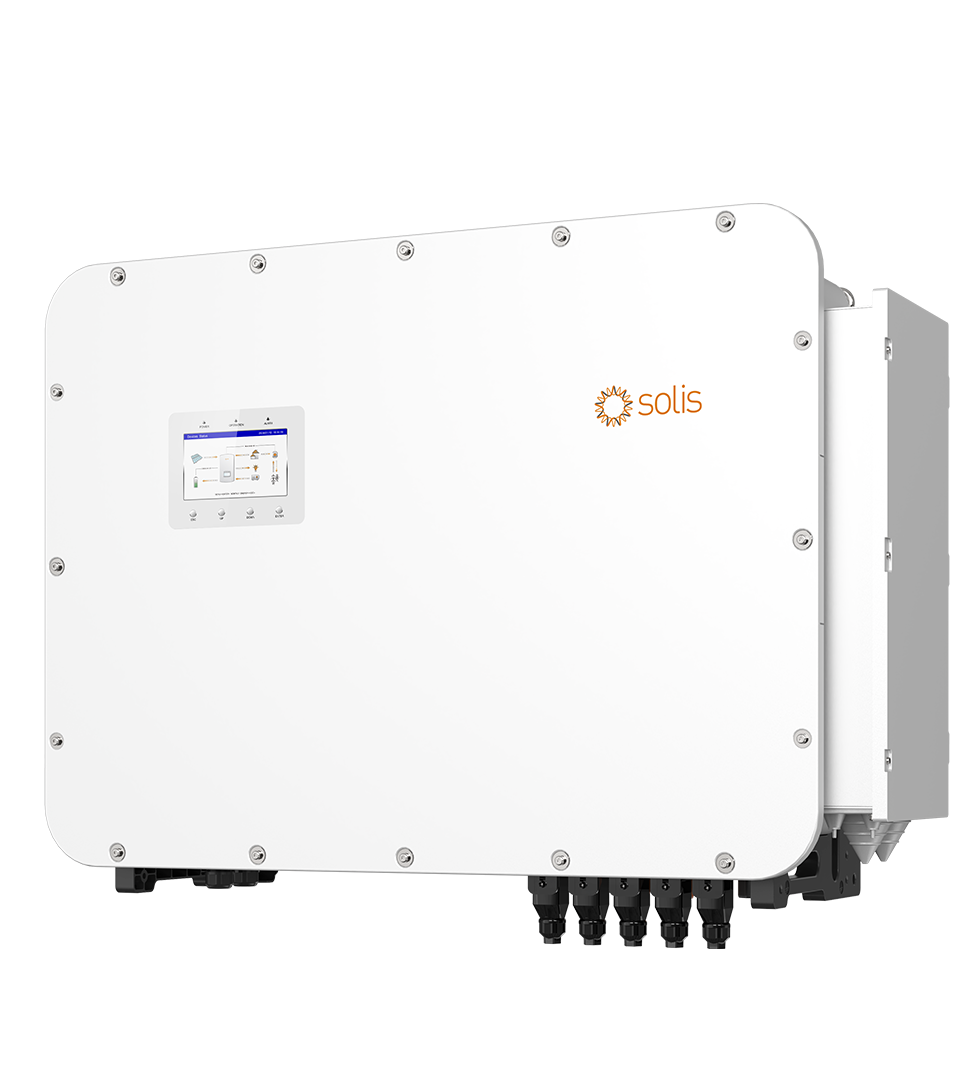

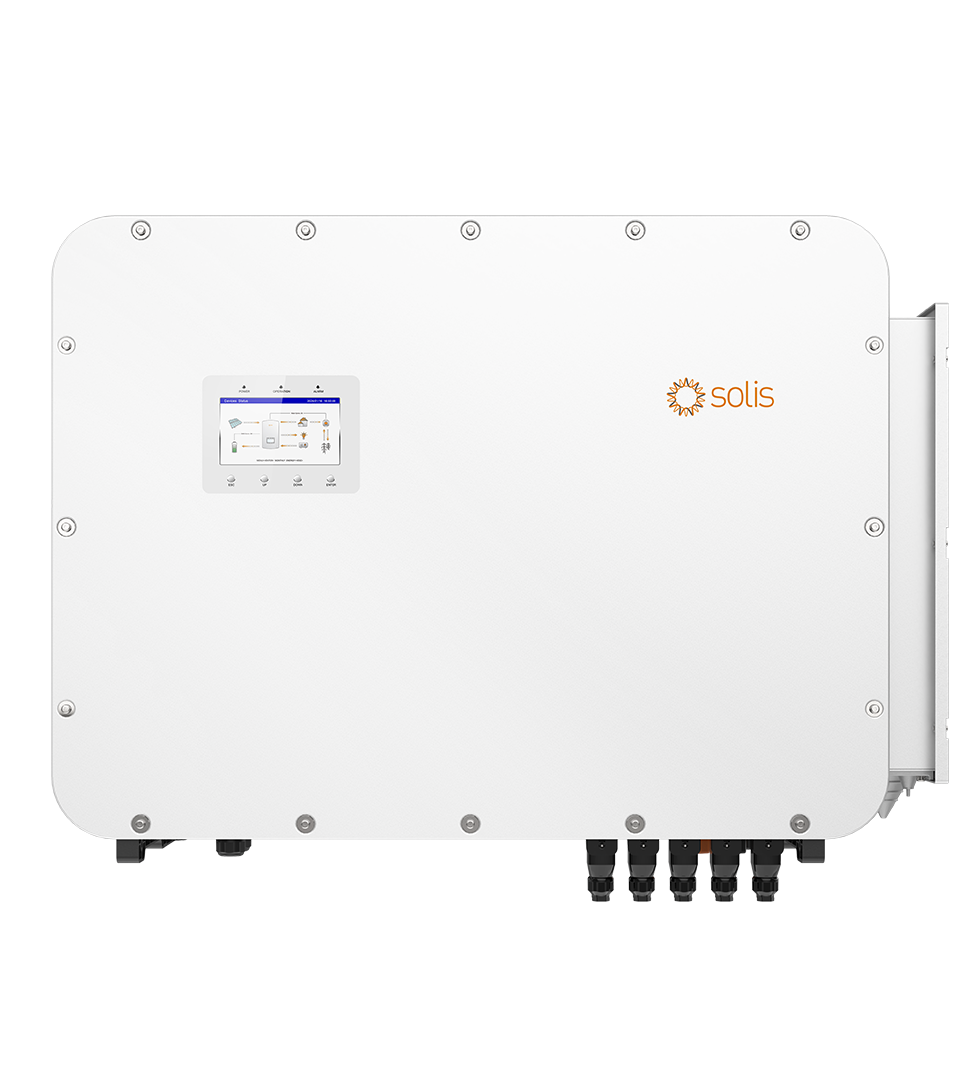

Solis S6 80kW 3 Phase Hybrid Inverter

The Solis S6-EH3P80K10-NV-YD-H is a three-phase, high-voltage commercial hybrid inverter rated at 80kW, supporting a recommended PV array of up to 160kW across 10 MPPT inputs (150-950V range, 42A max per input, 21A per string over 20 strings). It pairs with a Li-ion battery over 300-950V DC through two independently controlled ports at up to 100A each (200A combined charge current), and switches to backup power in under 10ms, with up to 2x rated power for 200ms in off-grid mode. Maximum efficiency is 97.5%, with 96.9% EU weighted efficiency. Measuring 1174 x 814 x 400mm and weighing 170kg, it is IP66-rated for -25°C to +60°C operation, with a 7-inch LCD display, Bluetooth and app setup, and standard WiFi, LAN, CAN-BMS and RS485-Meter communication.
