Brand: Solis

Product code: AEB-00453

Solis S6 EH3P30K-H-EU and Dyness Stack 100 133 kWh Storage Package

  • 97.8
  • 150
  • 850
  • 150
  • 800
  • 33

30kW three-phase high-voltage hybrid inverter bundled with Dyness Stack100 modular LiFePO4 battery modules.

£33,176.13 inc. VAT

£27,646.77 exc. VAT

In stock

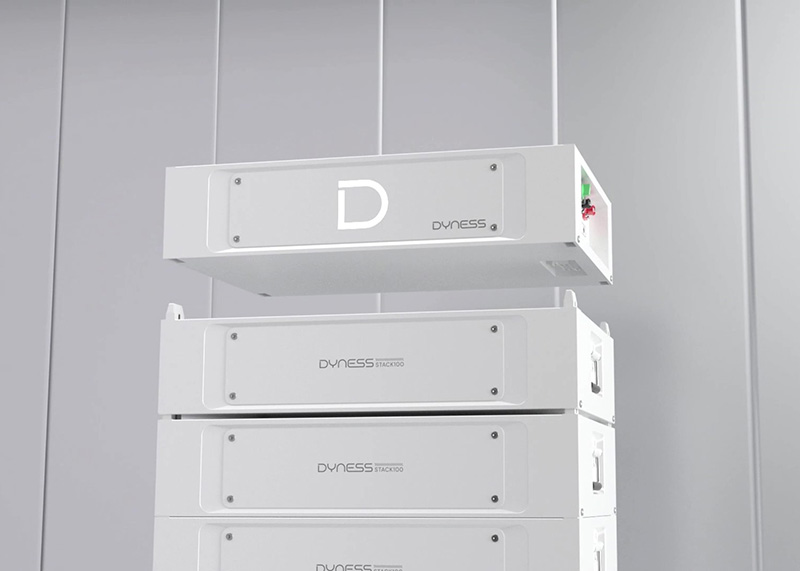

This bundle pairs the Solis S6-EH3P30K-H three-phase high-voltage hybrid inverter, rated 30kW with a maximum efficiency of 97.8%, with Dyness Stack100 modular LiFePO4 battery modules. The inverter provides three independent MPPT trackers over a 150-850V input range, accepts a high-voltage battery over 150-800V DC through two independently controlled ports, and supports up to 33kW combined charge/discharge power. The Dyness Stack100 modules stack without internal wiring in 5.12kWh units, letting an installer build a cluster sized to the site. Aimed at commercial and industrial sites, the system supports self-consumption, peak shaving, backup power and grid support. The catalogue names this package for a nominal 133kWh of battery storage; that total reflects the supplier's chosen module count and is not stated as a single figure in either manufacturer's datasheet, so it is not asserted here as a sourced spec.

Specifications

Inverter

Rated Output Power30 kW
Max Efficiency97.8%
EU Efficiency97.4%
Max Charge/Discharge Power33 kW
Number of Battery Inputs2
Weight73 kg

Battery

Battery TypeLiFePO4
Module Capacity5.12 kWh

General

Inverter Efficiency97.8
Inverter Mppt Vmin150
Inverter Mppt Vmax850
Inverter Battery Vmin150
Inverter Battery Vmax800
Battery Max Charge33
Battery Max Discharge33

Documents and datasheets

Datasheets

  • Solis S6-EH3P30K-H Three-Phase High-Voltage Energy Storage Inverter + Dyness Stack100 Battery Modules — Datasheet

    PDF · 279 kB

    Download

Warranty

  • Solis S6-EH3P30K-H Three-Phase High-Voltage Energy Storage Inverter + Dyness Stack100 Battery Modules — Warranty

    PDF · 9.9 MB

    Download
