Brand: Solis
Product code: AEB-00459

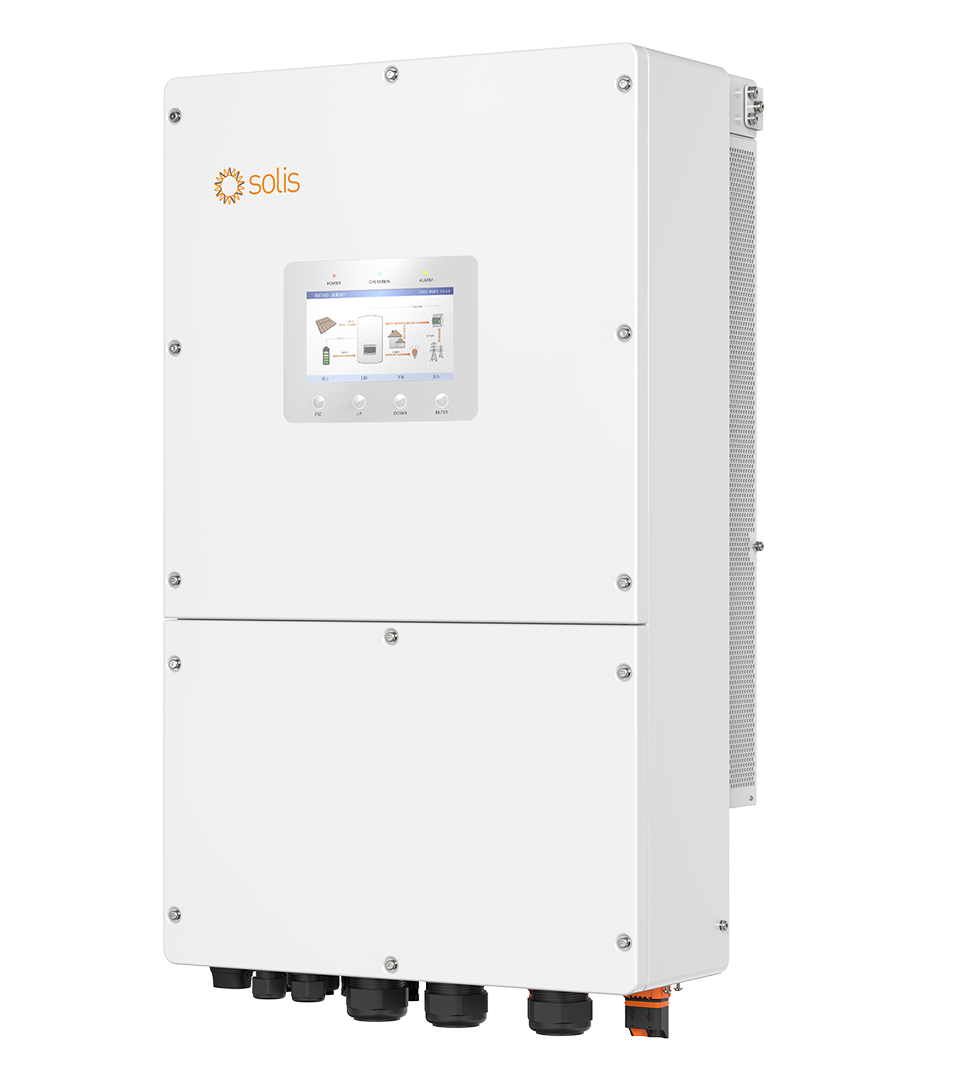

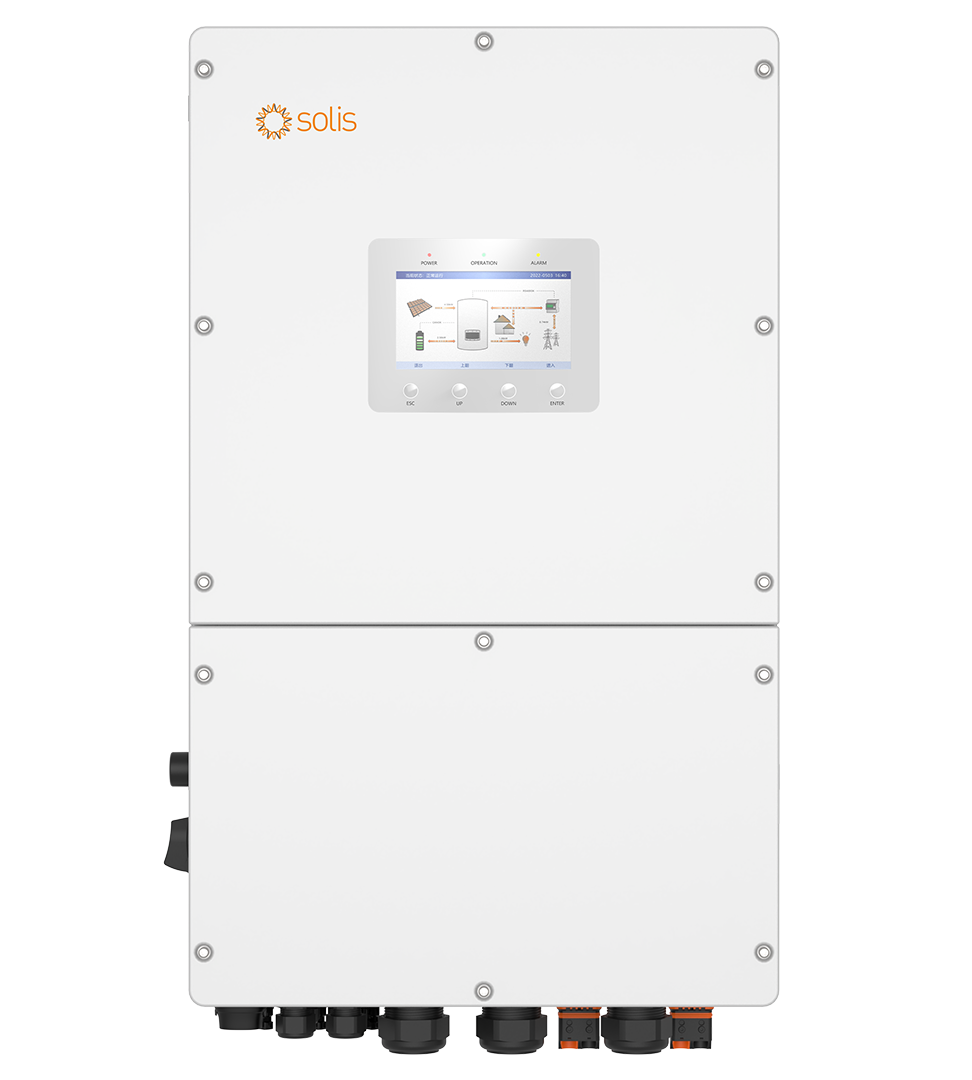

Solis S6 Three Phase 50kW High Voltage Hybrid Inverter
- 50 kW
- Three phase
- Hybrid
- 2
- 150
- 850
Solis S6-EH3P50K-H 50kW three-phase high-voltage commercial hybrid inverter, 4 MPPTs, two battery ports.
£4,999.04 inc. VAT
£4,165.87 exc. VAT
In stock
The Solis S6-EH3P50K-H is a three-phase, high-voltage commercial hybrid inverter rated at 50kW, taking a recommended PV array of up to 100kW across 4 MPPT inputs (150-850V range, 40A max per input, 8 strings). It pairs with a 150-800V battery through two independently controlled ports (70A max combined charge/discharge current, 55kW), and switches to backup power in under 10ms, delivering 1.6x rated power for 2s in off-grid mode. Maximum efficiency is 97.8%, with 97.4% EU weighted efficiency. Measuring 530 x 880 x 290mm and weighing 73kg, it is IP66-rated for -25°C to +60°C operation, with a 7-inch industrial-grade LCD screen and CAN/RS485 communication.
Specifications
Electrical
| Recommended max. PV array size | 100 kW |
|---|---|
| Max. usable PV input power | 96 kW |
| Start-up voltage | 180 V |
| Max. short circuit current (per MPPT) | 60 A |
| Rated output power | 50 kW |
| Max. apparent output power | 50 kVA |
| Rated grid voltage | 220 / 380, 230 / 400 V (3/N/PE) |
| Rated grid output current | 76 / 72.2 A |
| Max. AC passthrough current | 152 / 144.4 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 97.8% |
| EU efficiency | 97.4% |
| BAT charged by PV max. efficiency | 98.5% |
| BAT charged / discharged to AC max. efficiency | 97.5% |
| Back-up switch time | < 10 ms |
| Max. apparent output power (back-up) | 1.6x rated power, 2s |
| MPPT number / Max. input strings number | 4/8 |
Battery
| Max. charge / discharge current | 70 A x 2 |
|---|
Physical
| Dimensions | 530 x 880 x 290 mm (W x H x D) |
|---|---|
| Weight | 73 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Self-consumption (night) | < 35 W |
General
| Rated output | 50 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 2 |
| Inverter Mppt Vmin | 150 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 40 |
| Inverter Battery Vmin | 150 |
| Inverter Battery Vmax | 800 |
| Battery Max Charge | 55 |
| Battery Max Discharge | 55 |
Documents and datasheets
Datasheets
S6-EH3P50K-H — Datasheet
PDF · 3.4 MB
