Brand: Solis
Product code: AEB-00427
Solis Single Phase 6kW Low Voltage AC-Coupled Inverters
- 6 kW
- Single phase
- 40
- 60

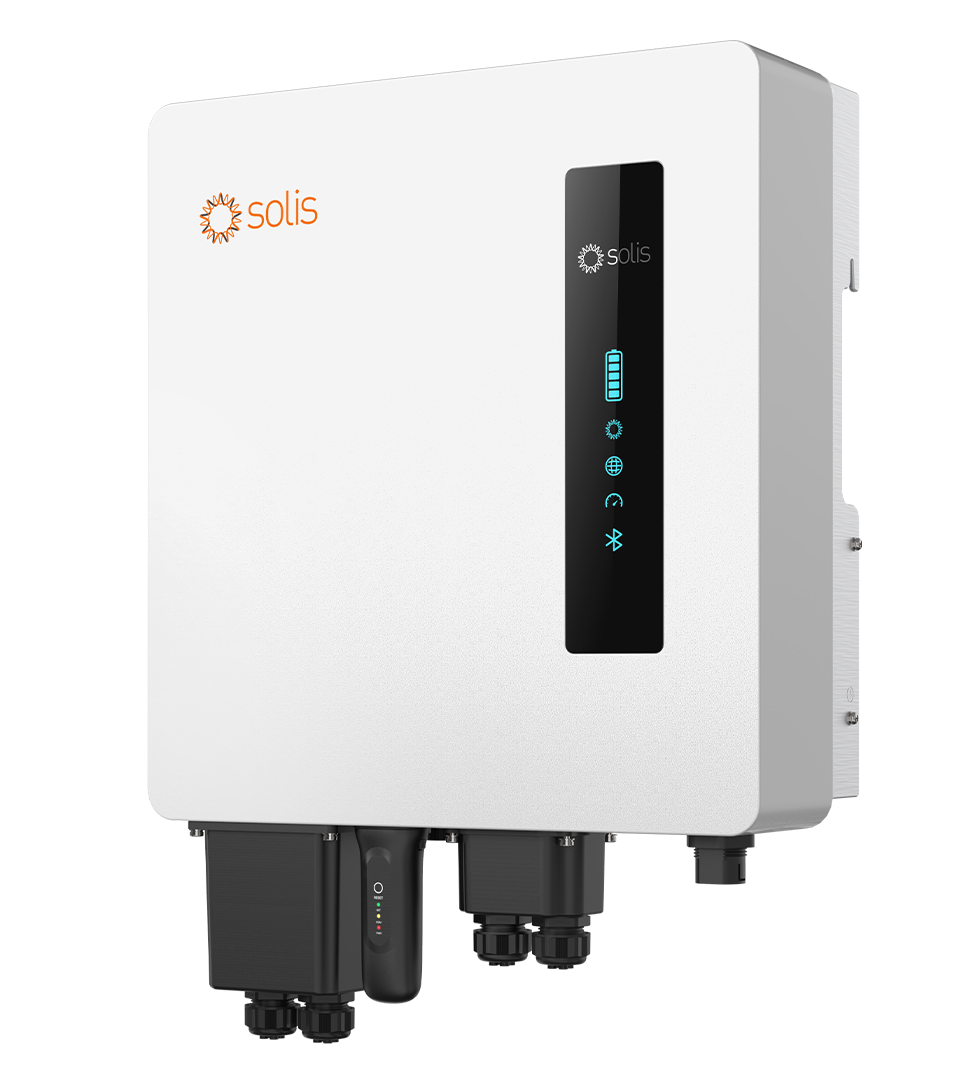

Solis S6-EA1P6K-L single-phase AC-coupled battery inverter, 6kW rated output.
£898.62 inc. VAT
£748.85 exc. VAT
Out of stock
The Solis S6-EA1P6K-L is a single-phase, low-voltage AC-coupled energy storage inverter rated at 6kW, for retrofitting battery storage onto an existing grid-tied solar inverter. It connects to 40-60V lithium batteries with a charge/discharge current of up to 125A, supports peak shaving and time-of-use charge/discharge scheduling, and reaches over 93.5% round-trip efficiency between battery and AC. Measuring 440 x 465 x 192mm and weighing 19.9kg, it is IP66-rated for -25°C to +60°C operation, with an LED status display, Bluetooth and app setup, and RS485/CAN communication (Wi-Fi and LAN optional).
Specifications
Battery
| Battery type | Li-ion |
|---|---|
| Max. charge / discharge current | 125 A |
Electrical
| Rated output power | 6.0 kW |
|---|---|
| Max. apparent output power | 6.0 kVA |
| Rated grid output current | 27.3 / 26.1 A |
| Grid voltage range | 187 - 253 V |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| BAT charged / discharged to AC max. efficiency | > 93.5% |
Physical
| Dimensions | 440 x 465 x 192 mm (W x H x D) |
|---|---|
| Weight | 19.9 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Max. operation altitude | 4000 m |
General
| Rated output | 6 kW |
|---|---|
| Phases | Single phase |
| Inverter Battery Vmin | 40 |
| Inverter Battery Vmax | 60 |
Documents and datasheets
Datasheets
S6-EA1P6K-L — Datasheet
PDF · 2.7 MB
