Brand: Solis
Product code: AEB-00424

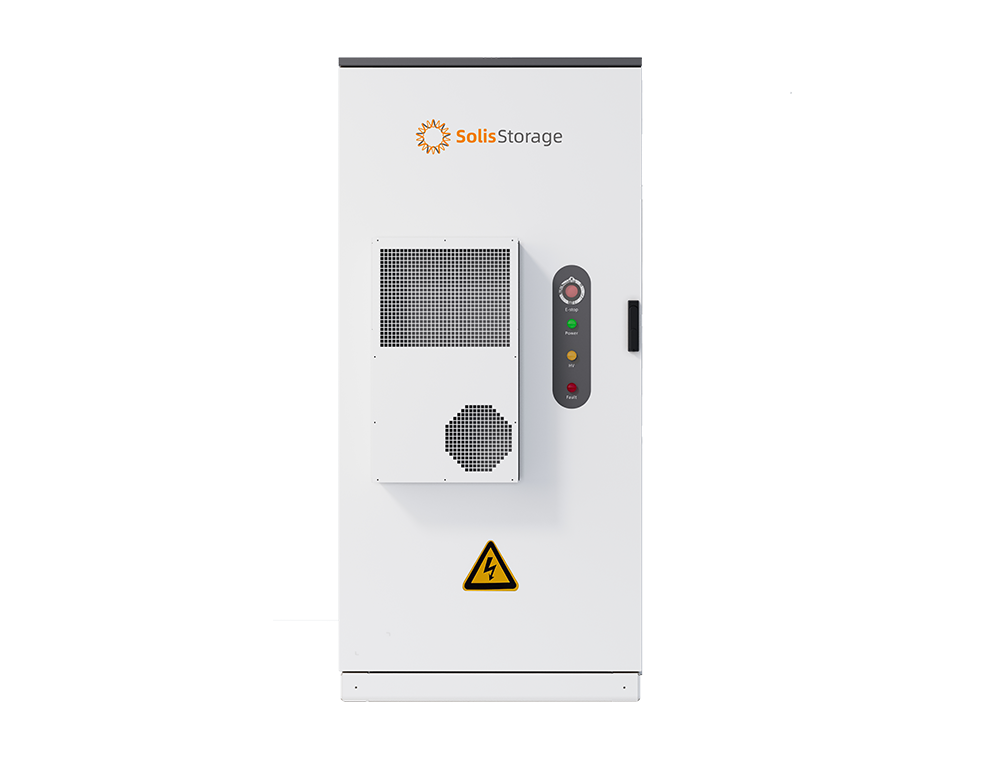

SolisStorage PrimePower 109kWh Battery with 50kW Inverter - Standard version +C5 Protection (Master
- 50 kW
- 98.7
- DC
- 358.4
- LFP
- 150
Solis PrimePower 109kWh commercial battery cabinet with integrated 50kW three-phase hybrid inverter (Master unit, +C5).
£34,107.22 inc. VAT
£28,422.68 exc. VAT
Out of stock
This is the master unit of the Solis PrimePower commercial energy storage range, combining a 109.7kWh (98.7kWh usable) battery cabinet with an integrated Solis S6-EH3P50K-H three-phase hybrid inverter rated at 50kW. The cabinet holds seven LFP battery packs (3.2V/306Ah CATL cells, 15.67kWh/102kg each) for a system voltage range of 313.6-403.2V. The inverter provides four MPPT inputs over a 150-850V range, up to 96kW of usable PV input, and switches to backup power in under 10ms; up to 10 units can run in parallel off-grid. The master unit carries the inverter and system control electronics that an expansion (slave) cabinet does not. The cabinet is IP55-rated with C4 anti-corrosion as standard and a C5-rated option for coastal or industrial sites; the inverter enclosure is IP66. Built for commercial and industrial self-consumption, peak shaving and backup applications.
Specifications
System
| Rated energy capacity | 109.7 kWh |
|---|---|
| Max. cycle efficiency | 89% |
| Dimensions (with inverter, W x H x D) | 1270 x 2070 x 1357 mm |
| Weight | 1320 kg (cabinet) + 73 kg (inverter) |
| Ingress protection | IP55 (cabinet) + IP66 (inverter) |
| Anti-corrosion class (battery) | C4/C5 (optional) |
| Operating temperature range | -25 to +55 °C |
| Noise (rated operating condition) | 70 dB @ 1 m |
Battery
| Cell type | LFP 3.2 V / 306 Ah |
|---|---|
| Cell cycle life | 10000 cycles |
| System battery configuration | 1P112S |
| Operating voltage range | 313.6 - 403.2 V |
| Rated DC current | 153 A |
| Number of battery packs | 7 |
| Battery pack capacity | 15.67 kWh |
| Battery pack weight | 102 kg |
Inverter
| Inverter model | S6-EH3P50K-H |
|---|---|
| Max. apparent output power (on-grid) | 50 kVA |
| Rated output current | 76 / 72.2 A |
| Back-up switch time | < 10 ms |
| Max. usable PV input power | 96 kW |
| Max. parallel quantity (off-grid) | 10 |
General
| Rated output | 50 kW |
|---|---|
| Battery Usable | 98.7 |
| Battery Coupling | DC |
| Battery Nominal | 358.4 |
| Battery Chemistry | LFP |
| Inverter Mppt Vmin | 150 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 40 |
