Brand: myenergi
Product code: AEE-00626
zappi ev charger 22kw tethered black
- 22
- 3
- true
- 6.5
- Type 2
Three-phase 22kW smart EV charger with 6.5m Type 2 tethered connector, IP65 weatherproof, ECO mode optimises solar charging.
£1,100.67 inc. VAT
£917.23 exc. VAT
In stock

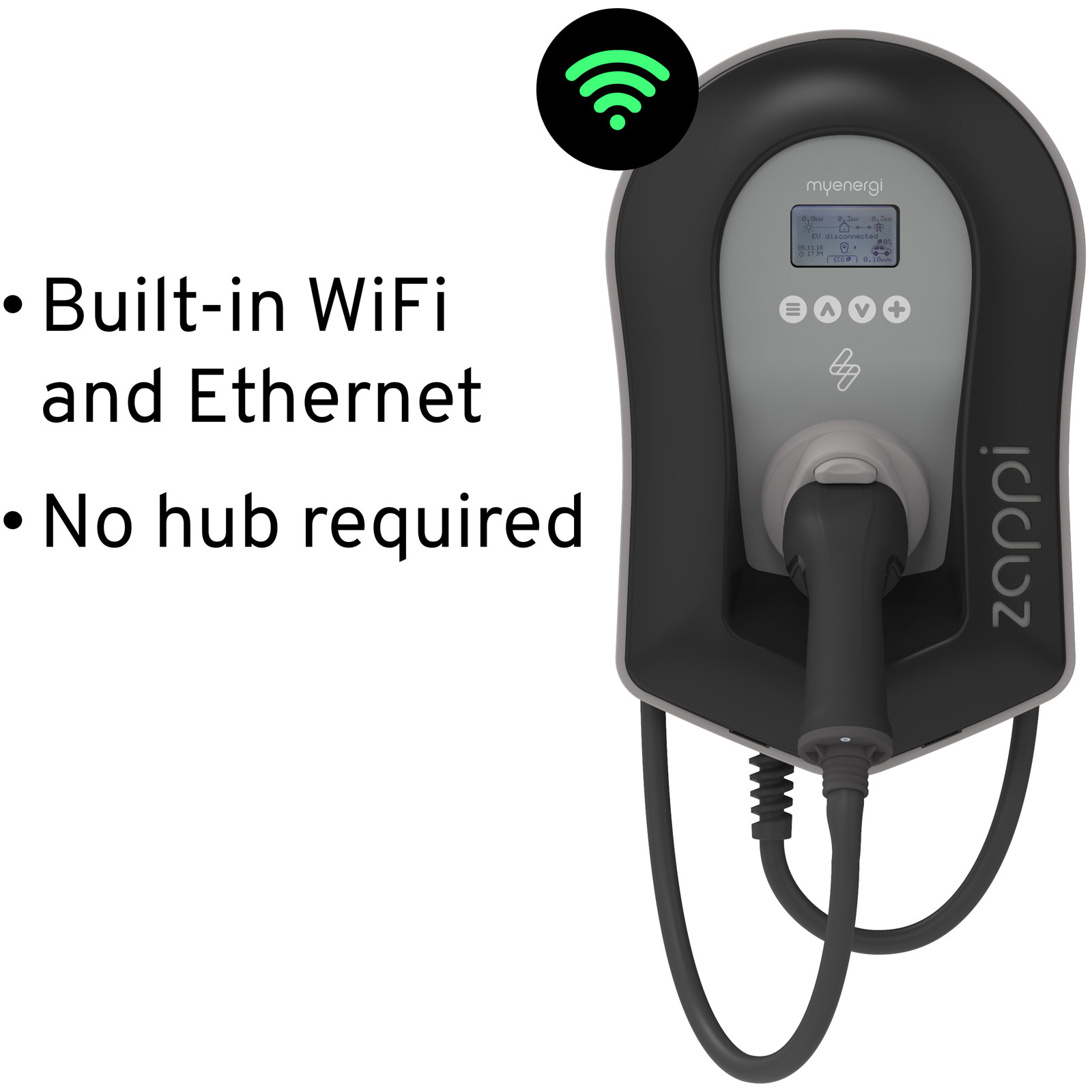

The myenergi Zappi v2.1 is a smart 22kW three-phase wallbox charger with integral 6.5m Type 2 tethered connector. Operating on 400V three-phase 50Hz supply, it delivers variable 6 to 32A output, with a maximum rated power of 22kW. Three intelligent charging modes—ECO, ECO+ and FAST—allow fine control of charging, with ECO+ prioritising excess solar generation. Weatherproof IP65 and impact-resistant IK10 design suits both indoor and outdoor installation. Built-in WiFi and Ethernet connectivity enable remote monitoring, scheduling and control via the myenergi app. Integral 6mA DC residual current protection meets EN 62955 requirements. The enclosure measures 438×282×122mm.
Specifications
Electrical
| Rated Power | 22 kW (3-Phase) |
|---|---|
| Rated Supply Voltage | 400 V AC 3-Phase, +/- 10% |
| Supply Frequency | 50 Hz |
| Rated Current | 32 A max |
| Charging Current | 6 to 32 A (Variable) |
| Integral Protection | 6mA DC Residual current protection RDC-DD EN 62955 |
| Standby Power Consumption | 3 W |
Connector & Cable
| Connector Type | Type 2 tethered cable |
|---|---|
| Cable Length | 6.5 m |
Performance
| Charging Mode | Mode 3 per EN IEC 61851-1 |
|---|---|
| Charging Modes | ECO, ECO+, FAST 3 user-selectable modes |
Protection & Rating
| IP Rating | IP65 Dust tight and water jet resistant |
|---|---|
| Impact Rating | IK10 Impact resistant |
Physical
| Enclosure Dimensions | 438 x 282 x 122 mm (H x W x D) |
|---|---|
| Enclosure Material | PC / ASA Batch Dependent |
| Operating Temperature | -25 to +40 °C (Out of direct sunlight) |
Connectivity
| WiFi Connectivity | 2.4GHz 802.11BGN up to 150 Mbps |
|---|---|
| Communication Protocol | OCPP 1.6J Via Cloud |
General
| EV Charging Rated | 22 |
|---|---|
| EV Charging Phases | 3 |
| EV Charging Tethered | true |
| EV Charging Cable Length | 6.5 |
| EV Charging Connector Type | Type 2 |
Documents and datasheets
Datasheets
myenergi Zappi v2.1 22kW Smart EV Charger, 3-Phase, Type 2 Tethered — Datasheet
PDF · 261 kB
