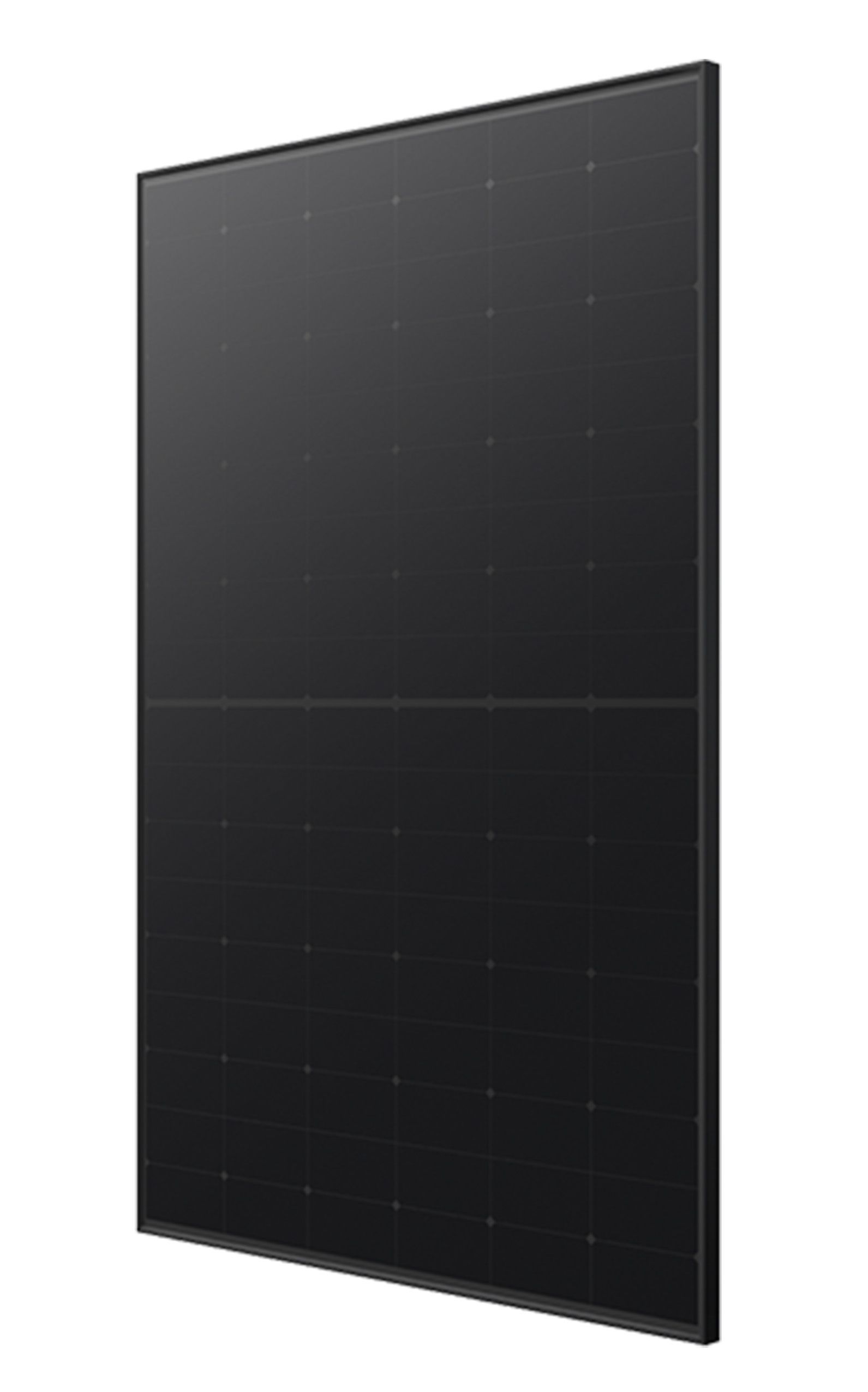

460W Hi-MO X6 Max Explorer HPBC 54 Cell Black Frame MC4-EVO2 SDM1

The LONGi Hi-MO X6 Max Explorer LR7-54HTH-460M is a 460W solar panel engineered for distribution market requirements. Built around N-type hybrid passivated back-contact (HPBC) cell technology, the panel delivers 22.8% module efficiency with 108 half-cut monocrystalline cells arranged in a 6×18 configuration. The 1800×1134mm panel weighs 21.6kg and features a black anodised aluminium frame with 3.2mm single-layer tempered glass. Electrical performance under standard test conditions yields an open-circuit voltage of 39.35V and short-circuit current of 14.86A. The panel is rated for maximum system voltage of 1500V DC and operates reliably across -40 to +85°C. First-year power loss remains below 1%, with degradation of 0.40% annually thereafter. An IP68-rated junction box with bypass diodes protects the electrical connections. The module carries a 15-year warranty on materials and workmanship plus a 25-year linear power output warranty covering to 89.4% of nominal output.
