Brand: Viridian
Product code: AEM-01556
ArcBox Drop Mounting Bracket - Works with Renusol, Clenergy, Schletter. Rail up to 40mm Widths
Drop mounting bracket for ArcBox enclosures on pitched roofs. Fits rails up to 40mm, 8/10mm T-bolt, three mounting positions, 15.5mm standoff.
£3.54 inc. VAT
£2.95 exc. VAT
In stock

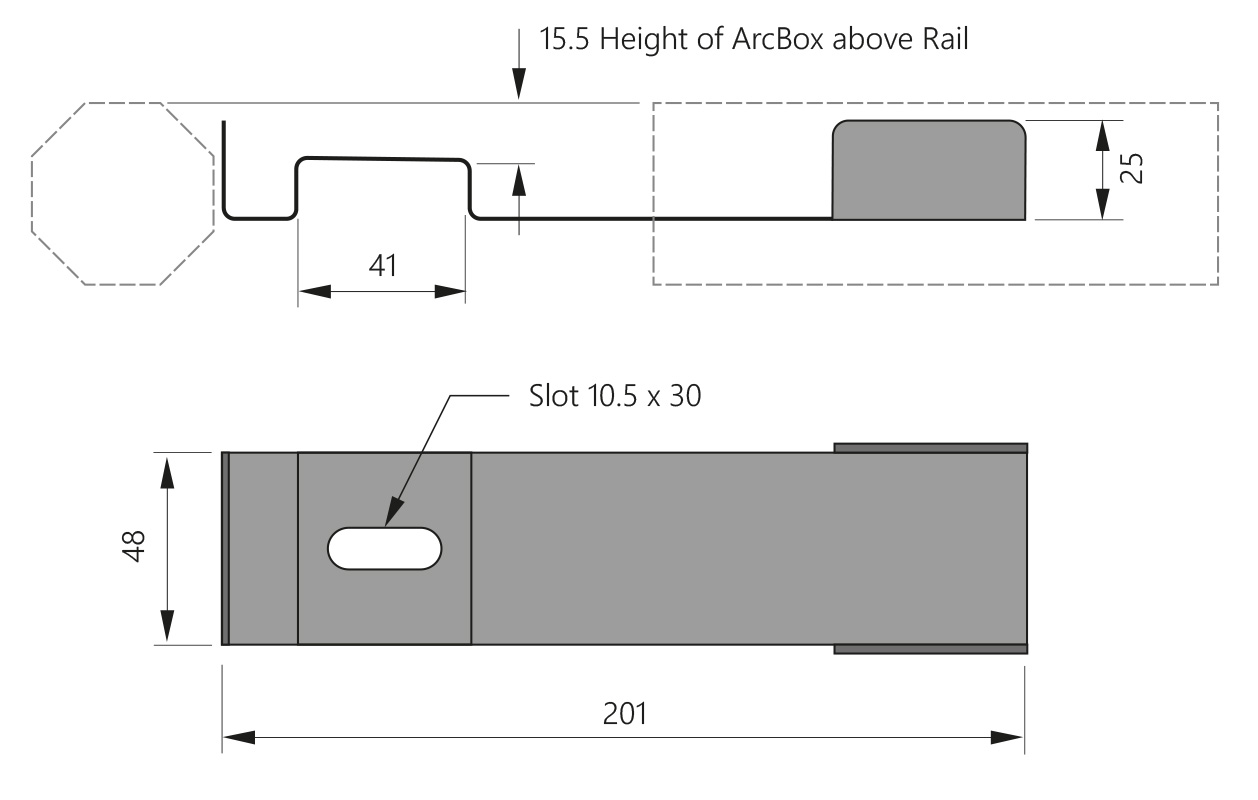

The Viridian ArcBox M02 is a low-profile drop-mounting bracket for fitting ArcBox DC connector enclosures beneath solar modules on pitched roofs. It fixes to a mounting rail up to 40mm wide with an 8mm or 10mm T-bolt, compatible with rail systems such as Sunfixings, K2 Dome fix and Van der Valk ValkPro. The bracket holds the ArcBox just 15.5mm above the top of the rail, giving enough clearance for parallel-mounted, low-profile modules where a taller bracket would not fit. Three mounting positions let the installer choose the orientation that best suits the cable run and rail layout. Overall the bracket measures 201mm long by 48mm wide, with a 10.5 x 30mm slot for adjustable fixing along its length.
Specifications
Mounting
| T-bolt fixing | 8mm or 10mm |
|---|
Compatibility
| Rail width | Up to 40 mm |
|---|---|
| Compatible rail systems | Sunfixings, K2 Dome fix, Van der Valk ValkPro |
Design
| Standoff height above rail top face | 15.5 mm |
|---|---|
| Mounting positions | 3 |
Dimensions
| Overall length | 201 mm |
|---|---|
| Overall width | 48 mm |
| Mounting slot size | 10.5 x 30 mm |
Application
| Roof type | Pitched roof, low-profile modules |
|---|
