ArcBox Rail Mounting Bracket - Works with Flat Roof systems - Schletter Fix Grid. VdV
Rail mounting bracket for the ArcBox DC connector enclosure. 8/10mm T-bolt fixing, rotatable, for flat roof solar rail systems.
£1.97 inc. VAT
£1.64 exc. VAT
In stock

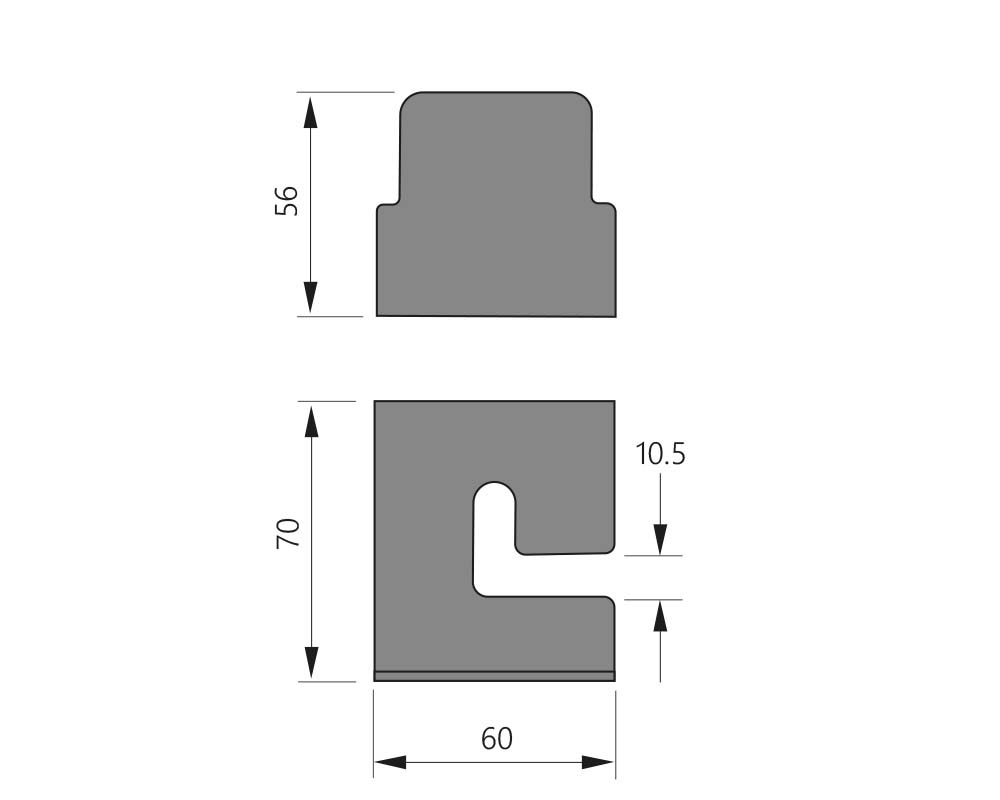

The Viridian ArcBox M01 is a rail-mounted bracket that fixes an ArcBox DC connector safety enclosure to a solar panel mounting rail using an 8mm or 10mm T-bolt. It works with common rail systems including Schletter FixGrid, Sunfixings, K2 Dome fix and Van der Valk ValkPro. The bracket can be rotated before it is tightened, so the enclosure can be aligned with the cable run on site. Because of the finished height it leaves above the rail, M01 suits flat roof installations best; Viridian's lower-profile M02 bracket is recommended instead for pitched roofs with limited clearance under the modules. The bracket measures roughly 56mm high at the front face and 70mm high by 60mm wide in side profile.
Specifications
Mounting
| T-bolt fixing | 8mm or 10mm |
|---|
Dimensions
| Height (front elevation) | 56 mm |
|---|---|
| Height (side elevation) | 70 mm |
| Width (side elevation, base) | 60 mm |
Application
| Roof type suitability | Flat roof systems (ARC-M02 recommended for pitched roofs) |
|---|
Compatibility
| Compatible rail systems | Schletter FixGrid, Sunfixings, K2 Dome fix, Van der Valk ValkPro |
|---|
Design
| Key feature | Rotatable before fixing to align the ArcBox with the cabling route |
|---|
