Brand: Fox ESS
Product code: AEB-00185
Fox H3 Smart 6.0KW 3ph Hybrid Inverter
- 6 kW
- Three phase
- Hybrid
- 14
- 120
- 950
Fox ESS H3-6.0-Smart three-phase hybrid inverter, 6kW rated output with 3 MPPTs and EPS backup.
£1,609.86 inc. VAT
£1,341.55 exc. VAT
In stock
The Fox ESS H3-6.0-Smart is a 6kW three-phase hybrid inverter with three independent MPP trackers covering a 120-950V range for a 14kW PV array. It charges and discharges Fox ESS high-voltage LFP batteries over a 100-800V window, with a maximum charge/discharge current of 50A, and switches to EPS backup power in under 10 milliseconds when the grid fails. The naturally-cooled, wall-mounted enclosure is rated IP65 for indoor or outdoor installation and weighs 34kg net. Communication covers Ethernet, WiFi, Bluetooth and an optional 4G module, with built-in meter and SG Ready support for remote monitoring through Fox ESS's app and web portal. It is designed to pair with Fox ESS's high-voltage battery range for three-phase solar and storage installations.
Specifications
Electrical
| Max. Array Power | 14000 Wp |
|---|---|
| Nominal AC Power | 6000 W |
| Max. Apparent AC Power | 6600 VA |
| Rated AC Current (per phase) | 9.1 A |
| Max. Charge/Discharge Current | 50.0 A |
Performance
| Max. Efficiency | 97.70% |
|---|---|
| European Efficiency | 97.20% |
Battery
| Battery Type | Lithium-Ion battery (LFP) |
|---|
Mechanical
| Dimensions (W*H*D) | 600*450*226 mm |
|---|---|
| Ingress Protection | IP65 |
| Cooling | Natural |
General
| Switch Time (EPS) | <10 ms |
|---|---|
| Rated output | 6 kW |
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 14 |
| Inverter Mppt Vmin | 120 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 100 |
| Inverter Battery Vmax | 800 |
| Inverter Ac Charge | 7.2 |
| MPPT trackers | 3 MPPT |
| Inverter Strings Per Mppt | 1 |
| Solar planner | Inverter |
Documents and datasheets
Datasheets
H3-6.0-Smart — Datasheet
PDF · 86 kB
H3-6.0-Smart — Datasheet
PDF · 831 kB
Manuals and guides
H3-6.0-Smart — Manual
PDF · 78 kB
H3-6.0-Smart — Manual
PDF · 262 kB
H3-6.0-Smart — Manual
PDF · 64 kB
H3-6.0-Smart — Manual
PDF · 119 kB
H3-6.0-Smart — Manual
PDF · 517 kB
H3-6.0-Smart — Manual
PDF · 782 kB
H3-6.0-Smart — Manual
PDF · 831 kB
H3-6.0-Smart — Manual
PDF · 873 kB
Warranty
H3-6.0-Smart — Warranty
PDF · 294 kB
H3-6.0-Smart — Warranty
PDF · 294 kB
H3-6.0-Smart — Warranty
PDF · 489 kB
H3-6.0-Smart — Warranty
PDF · 761 kB
H3-6.0-Smart — Warranty
PDF · 86 kB
H3-6.0-Smart — Warranty
PDF · 922 kB
H3-6.0-Smart — Warranty
PDF · 782 kB
H3-6.0-Smart — Warranty
PDF · 1.1 MB
H3-6.0-Smart — Warranty
PDF · 777 kB
H3-6.0-Smart — Warranty
PDF · 204 kB
H3-6.0-Smart — Warranty
PDF · 835 kB
H3-6.0-Smart — Warranty
PDF · 167 kB
H3-6.0-Smart — Warranty
PDF · 166 kB
H3-6.0-Smart — Warranty
PDF · 295 kB
H3-6.0-Smart — Warranty
PDF · 150 kB
H3-6.0-Smart — Warranty
PDF · 179 kB
H3-6.0-Smart — Warranty
PDF · 159 kB
H3-6.0-Smart — Warranty
PDF · 1.2 MB
Customer reviews
No reviews yet.
Be the first to tell other shoppers what you think.
Compatible with
Fox ESS
Product code AEB-00205

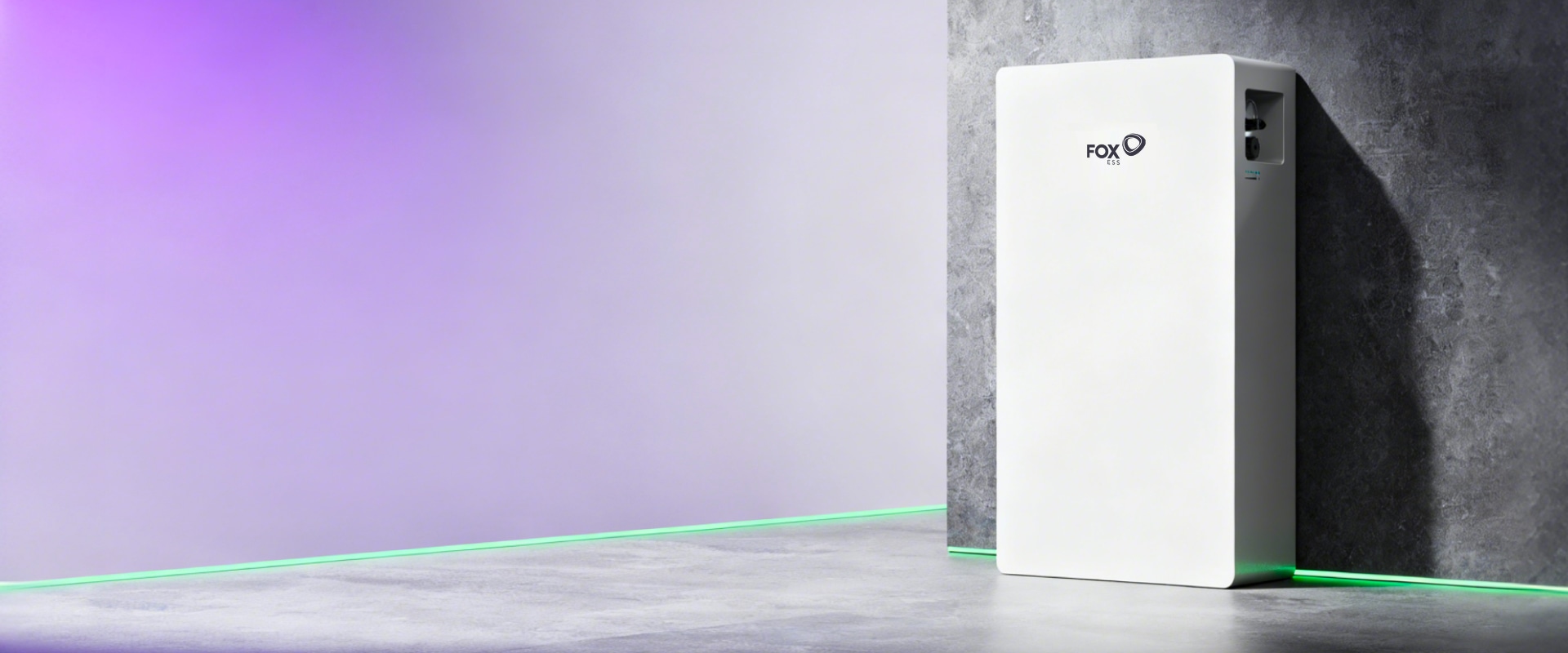

Fox ESS EP6 5.76kWh Battery with Heating Element
£1,526.98 inc. VAT
£1,272.48 exc. VAT
In stock
Fox ESS
Product code AEB-00203

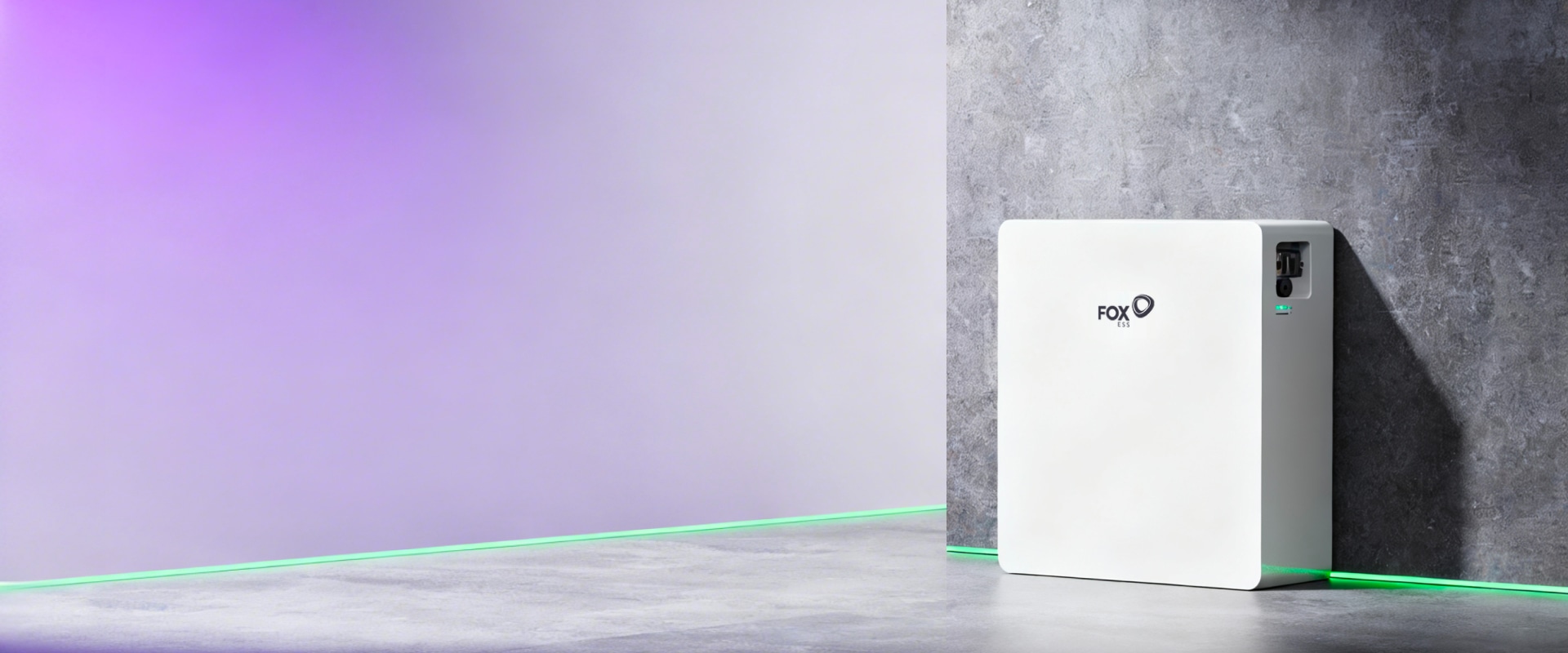

Fox ESS EP12 11.52kWh 384V Battery with Heating Element
£2,858.11 inc. VAT
£2,381.76 exc. VAT
In stock
Fox ESS
Product code AEB-00216
Fox EQ5000 4.92kWh HV Battery (Master)
£1,679.70 inc. VAT
£1,399.75 exc. VAT
In stock
Fox ESS
Product code AEB-00219

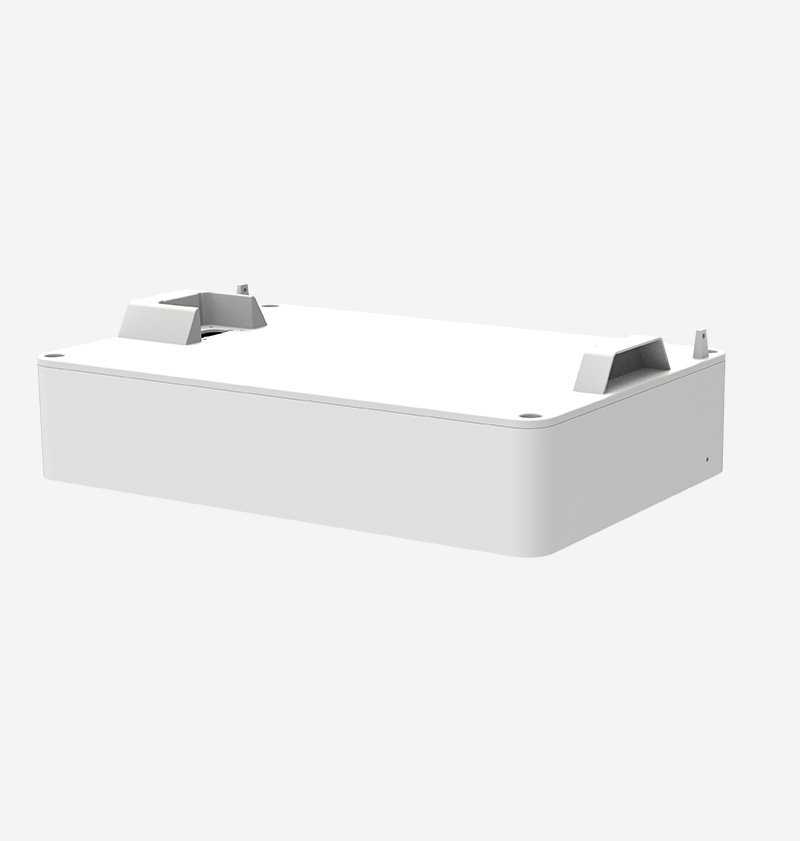

Fox EQ5000 4.92kWh HV Battery (Slave)
