Solis S6 150kW 3 Phase Grid Tied Inverter 7x MPPT

150 kW
Three phase
7 MPPT
160
1000
1100

Commercial 150kW three-phase grid-tied inverter with 7 MPPTs and 98.8% efficiency

£5,626.96 inc. VAT

£4,689.13 exc. VAT

In stock

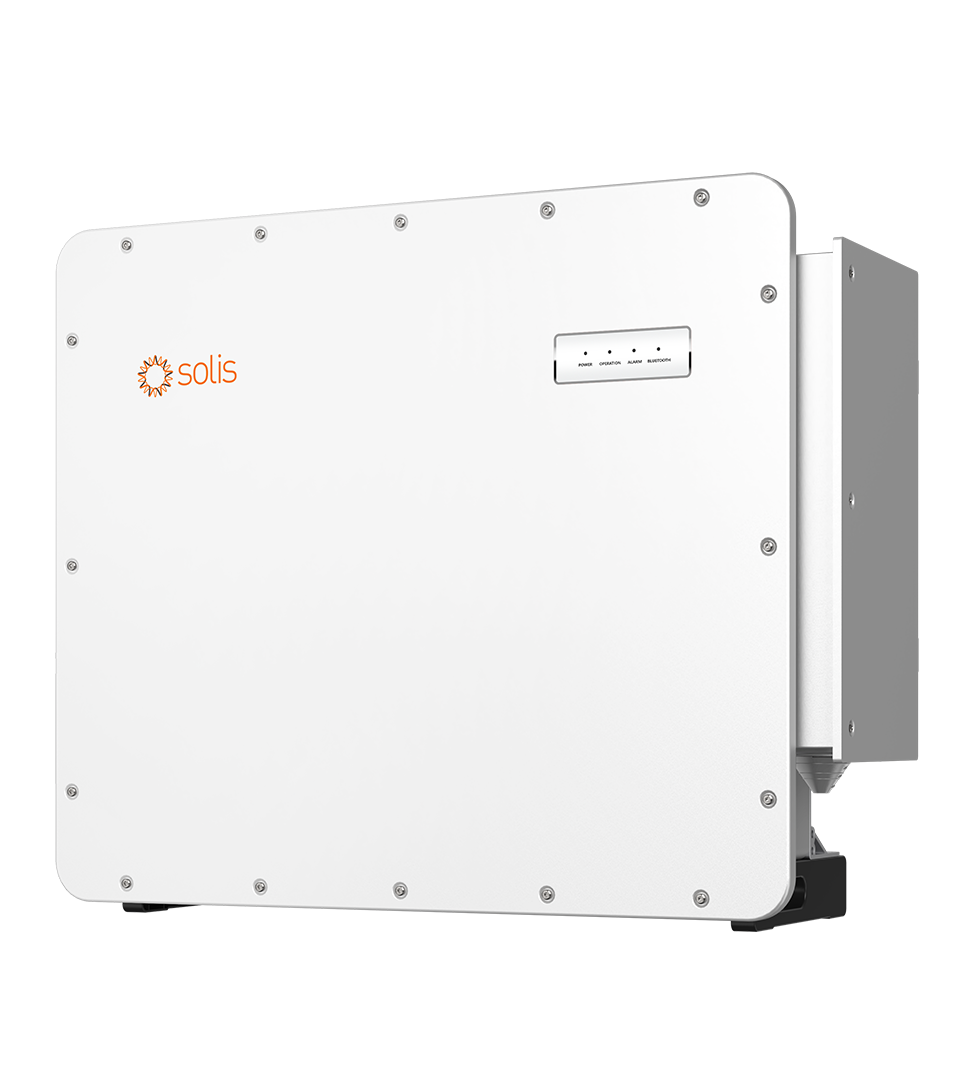

The Solis S6-GC3P150K07-NV-ND is a commercial three-phase string inverter rated at 150kW, with a maximum output of 165kW. It has 7 independent MPPT inputs, an MPPT voltage range of 160-1000V and a maximum DC input voltage of 1100V, with each MPPT taking up to 54A. Maximum efficiency is 98.8%, with 98.3% EU weighted efficiency. It measures 1035.5 x 869 x 396mm, weighs 105kg, and is rated IP66 for operation from -30°C to +60°C at up to 4000m altitude. Grid connection is 220/380V or 230/400V three-phase at 50/60Hz, with a power factor of 0.8 leading to 0.8 lagging and THD below 3%. It meets G99, IEC61727, EN50549-1/2 and VDE4110 grid standards, and carries a 5-year warranty extendable to 20 years.

Specifications

Electrical

Rated output power	150 kW
Max output power	165 kW
Max efficiency	98.8%
EU efficiency	98.3%
Rated DC voltage	600 V
Max DC input voltage	1100 V
MPPT voltage range	160-1000 V
Power factor	0.8 leading to 0.8 lagging cos(φ)
THD	<3%

Physical

Dimensions	1035.5 x 869 x 396 mm (W x H x D)
Weight	105 kg

Environmental

Operating temperature	-30 to +60 °C
Relative humidity	0-100%
IP rating	IP66
Max operating altitude	4000 m

Grid Connection

Rated grid voltage	220/380, 230/400 V (3/N/PE)
Grid frequency	50/60 Hz
Standards	G99, IEC61727, EN50549-1/2, VDE4110

General

Rated output	150 kW
Phases	Three phase
MPPT trackers	7 MPPT
Inverter Mppt Vmin	160
Inverter Mppt Vmax	1000
Inverter Dc Vmax	1100
Inverter Mppt Imax	54

Documents and datasheets

Datasheets

S6-GC3P150K07-NV-ND — Datasheet
PDF · 3.2 MB
Download
